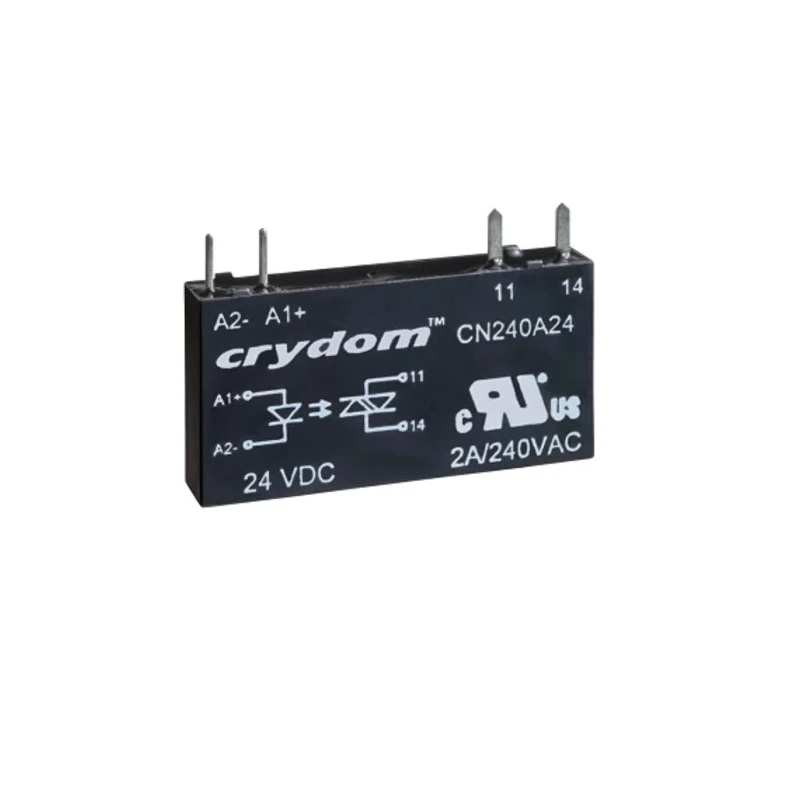

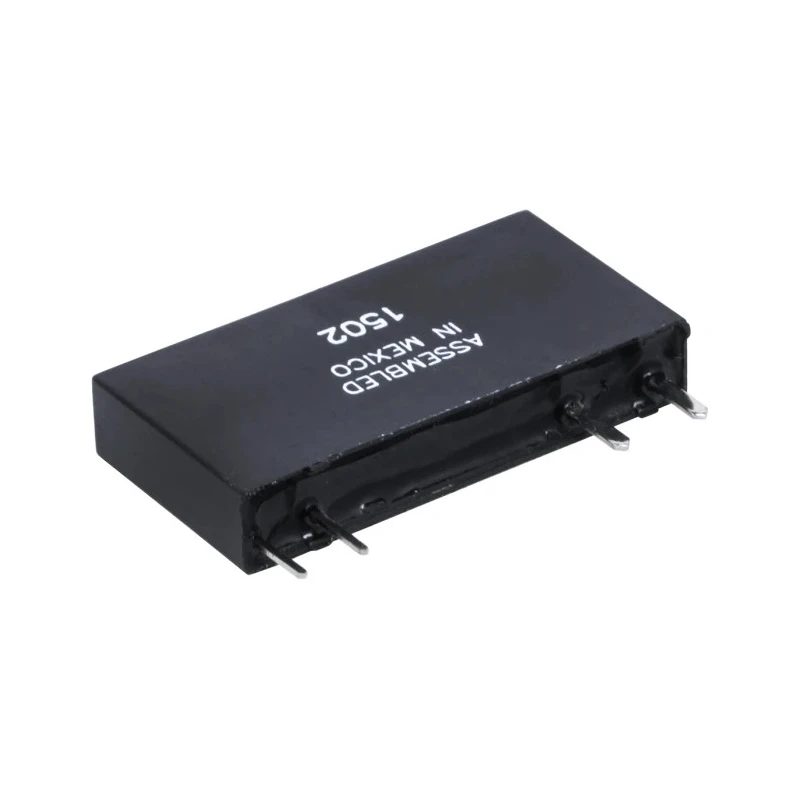

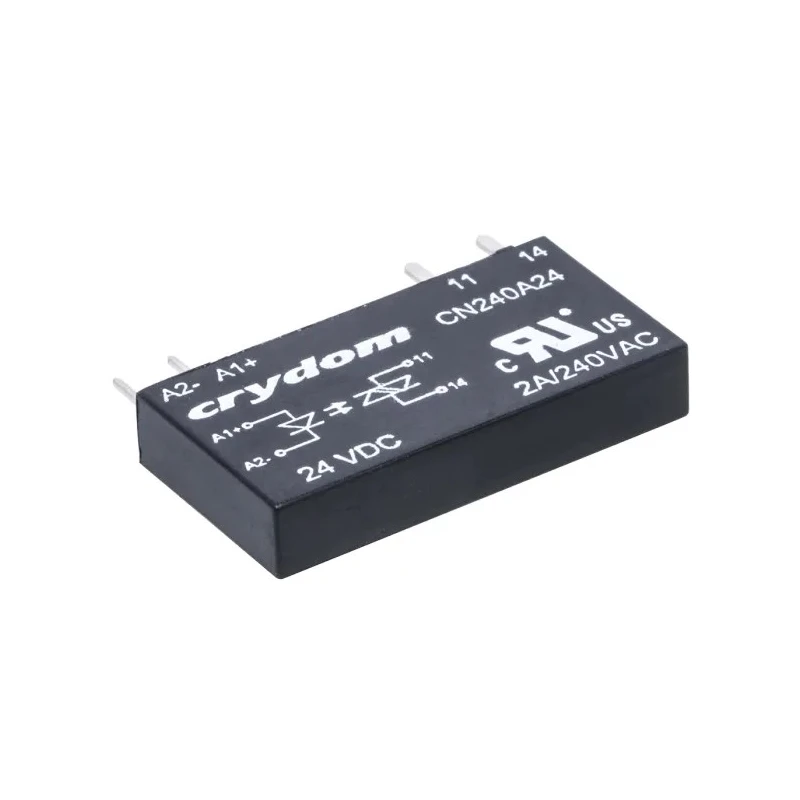

Crydom CN Series Solid State Relay, 2 A Load Current, PCB Mount, 280 V AC Load, 30 V DC Control CN240A24

Crydom CN240A24 Solid State Relay offers a dependable switching solution with a 2 ampere maximum load current and is designed for PCB mounting. It operates at a maximum load voltage of 280 volts AC and requires a DC control voltage up to 30 V, ideal for electronic circuits requiring precise control.

The relay's compact Mini SIP-4 form factor measuring 28mm length, 5mm width, and 15mm height allows integration in space-constrained PCBs. Its through-hole terminal type provides mechanical robustness and reliability in connections.

Engineered for demanding industrial environments, this relay supports an operating temperature range from -20°C to +80°C. The Zero Cross Switching functionality minimizes electrical noise and protects circuit components during activation.

Rated IP67, this Solid State Relay resists dust ingress and withstands water immersion up to one meter for 30 minutes, enhancing durability in harsh conditions.

The device's off state leakage current is only 4mA, and it features MOSFET output for efficient, fast switching suited for automation, packaging machinery, medical instruments, and other manufacturing processes.

This Crydom relay adheres to major safety and environmental standards including UL, cUL, RoHS, and CE, ensuring compliance for industrial and commercial applications. Supports a maximum load current of 2 amperes for efficient switching.

PCB mount with through-hole terminal type for secure installation. Rated maximum load voltage of 280 volts AC providing broad compatibility. Operates reliably within temperature range of -20°C to 80°C. Offers Zero Cross Switching for reduced electrical noise and enhanced durability.

Compact Mini SIP-4 package with dimensions 28mm x 5mm x 15mm optimizes PCB space usage. IP67 rating ensures protection against dust and immersion up to 1 meter in water for 30 minutes. Low off state leakage current of 4mA and output type is MOSFET for fast switching.

Suitable for applications in medical equipment, packaging machinery, and processing systems. Meets industry standards including UL, cUL, RoHS, and CE certifications. Explore additional high-quality relays and solid-state switching components suitable for varied industrial, laboratory, and manufacturing uses at EnvMart.
