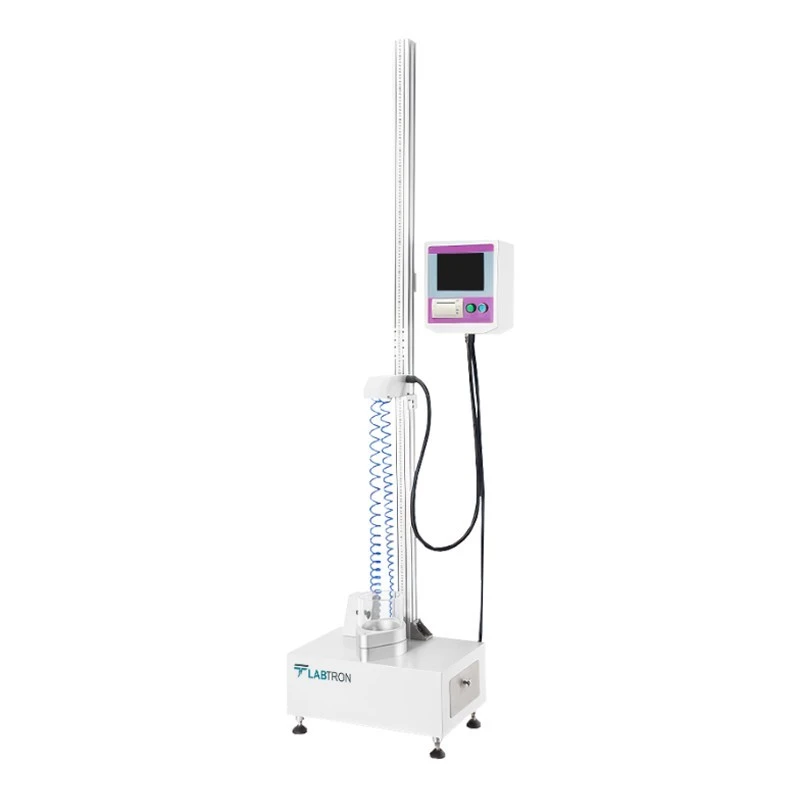

Falling Weight Impact Tester EFWIT-A10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Power Supply | AC 220 V 50 Hz |
| Dimension | 650 × 650 × customizable (2200 to 2600 mm) |
| Model | LFWIT-A10 |
| Weight | 50 Kg |
| Type of Product | Testing Instrument |
| Test Range | A method — 50 to 500 g (custom rod length can be 2000 g) / B method — 300 to 2000 g (custom length) |
| Test accuracy | 1 g |
| Dart Head Mass | 50 to 2000 g |
| Mass Increment | 5 g |
| Impact Height | 1500 mm |
| Dart Head Quality | A method — R38 ± 1 mm / B method — R50 ± 1 mm |
| Test Fixture | Outer diameter — 150 mm / Inner diameter — 125 mm |
Key Features
- Two models of testing method
- Low maintenance
- User-friendly operation
- Automated result and data printing
Product Description
The Falling Weight Impact Tester LFWIT-A10 features a dart head mass range of 50 to 2000g, with 5g increments, allowing for precise impact testing. It is equipped with a microcomputer-based operation system. This tester operates by dropping a dart from a controlled height onto a sample material, simulating real-world impact conditions. The test fixture consists of an outer diameter of 150 mm and an inner diameter of 125 mm. Our tester is designed to evaluate the impact resistance of plastic films, flakes, and similar materials.
Applications:
Our Falling Weight Impact Tester LFWIT-A10 is used in the packaging, film manufacturing, and material testing industries to assess the impact resistance of plastic films and sheets. It helps ensure product durability, quality control, and compliance with industry standards.
Standard Accessories:
- Pneumatic fixture ×1 set
- Matching weights ×1 set
- A scale head ×1 piece
- B scale head ×1 piece
- Power cord ×1 piece
Extra Info:
User must ensure a Gas source for Falling Weight Impact Tester LFWIT-A10 to operate.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The test range for this model includes A method from 50 to 500 g and B method from 300 to 2000 g, with the option for a custom rod length.
The maximum dart head mass for the Falling Weight Impact Tester EFWIT-A10 is 2000 g.
The impact height for the Falling Weight Impact Tester EFWIT-A10 is set at 1500 mm.
The test accuracy of the Falling Weight Impact Tester EFWIT-A10 is 1 g.
The test fixture has an outer diameter of 150 mm and an inner diameter of 125 mm.
This model requires an AC power supply of 220 V at 50 Hz.
The weight of this testing instrument is 50 Kg.
Standard accessories include a pneumatic fixture, matching weights, a scale head, and a power cord.
This model is designed to evaluate the impact resistance of plastic films, flakes, and similar materials.
The Falling Weight Impact Tester EFWIT-A10 is manufactured in the UK.
The dart head mass can be adjusted in increments of 5 g.
The customizable dimension for the Falling Weight Impact Tester EFWIT-A10 ranges from 2200 to 2600 mm.
