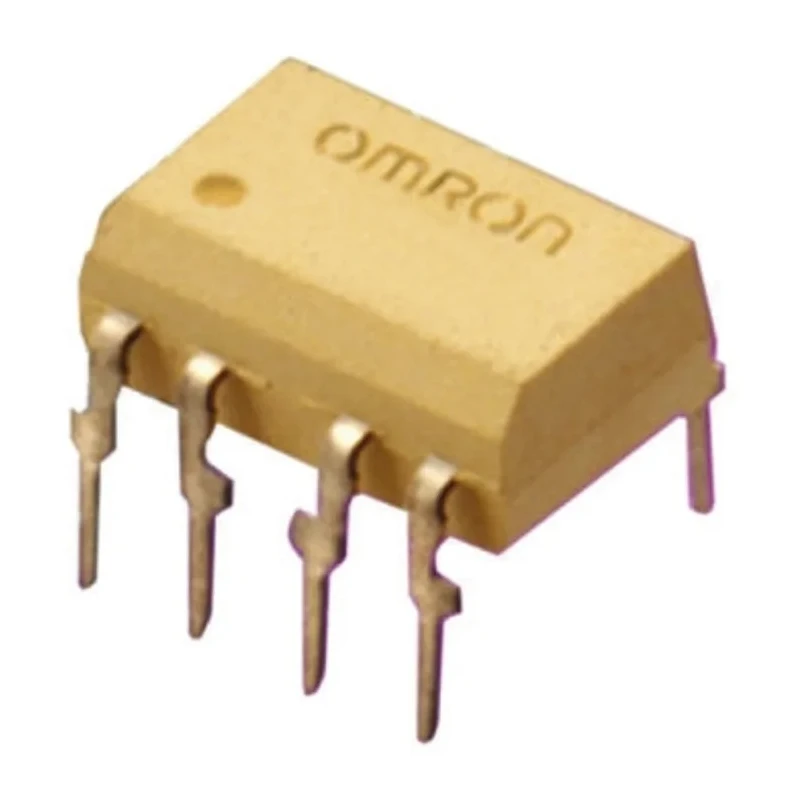

Omron G3VM Series Solid State Relay PCB Mount 0.12A Load, 350V AC Load, 1.3V Control

Omron G3VM-355CR solid state relay is a MOSFET-output device designed for PCB mounting in a compact PDIP package with 8 relay terminals. It supports a maximum load current of 0.12 A and load voltage of 350 V AC, suitable for precise, maintenance-free switching in industrial and electronic applications.

This general-purpose SSR provides SPST NO/NC contact configuration with low leakage current of 50 mA off state and maximum ON resistance of 15 Ω. The device operates reliably in harsh environments from -40°C to +85°C, with dielectric strength between input and output of 2500 Vrms for enhanced safety.

The G3VM-355CR features fast MOSFET switching enabling silent operation and high shock resistance. Its small footprint and PCB terminals support streamlined assembly for automation, control, and communication equipment.

Its applications include test and measurement devices, telecom hardware including line seizing and hook switching, security systems, and other industrial electronics requiring compact and reliable solid state relays.

Compact PDIP through-hole mounting with 8-pin PCB terminals. MOSFET output providing low ON resistance and small output capacitance. Contact configuration SPST NO/NC for versatile switching. Fast switching times supporting efficient control.

Wide operating temperature range and RoHS compliance. High insulation and dielectric strength for safety. Low leakage current and long operational life. Ideal for industrial automation, communication, and security equipment.

This product is engineered in Japan and maintained under strict quality controls. Explore more Solid State Relays and industrial automation components on EnvMart.
