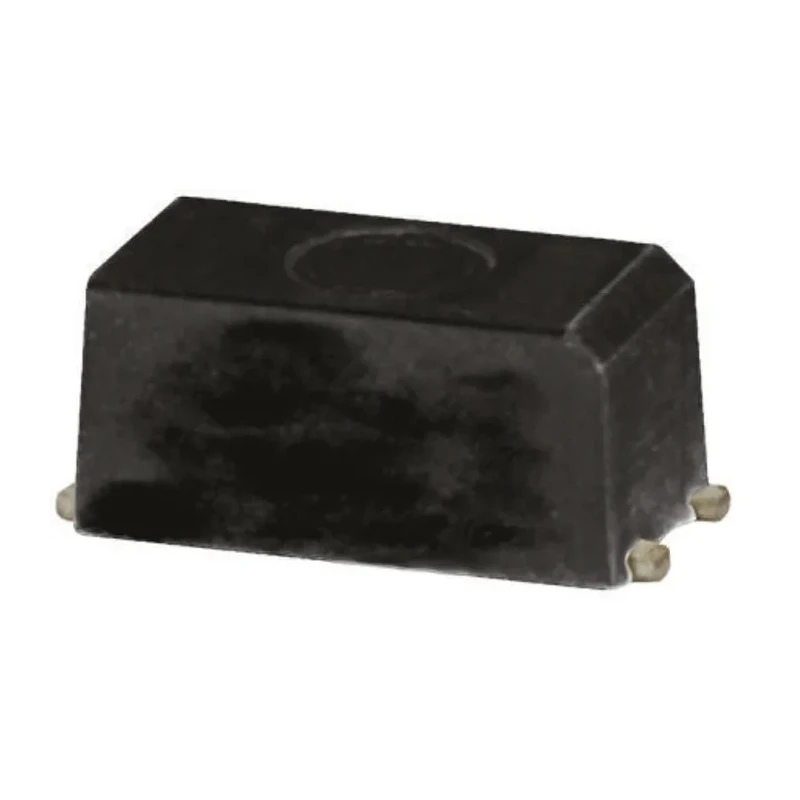

Panasonic PhotoMOS AQY Series Solid State Relay, 0.12 A Load Current, 80 V Load Voltage, PCB Mount, 1.5 V Control AQY225R2V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.8mm |
| Length | 2.7mm |
| Model | AQY225R2V |
| Width | 4.5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQY |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 0.12A |
| Standards/Approvals | UL, RoHS, cUL |
| Maximum Load Voltage | 80V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 10nA |
| On State Resistance | 23.5Ω |
Key Features
- This solid state relay offers a maximum load current of 0.12 A for precise switching control.
- The device supports a maximum load voltage of 80 V, suitable for low voltage circuits.
- Equipped with a low on-state resistance of 23.5 Ohms to ensure low power loss.
- Features a surface mount terminal type and a compact SOP-4 package for PCB mounting.
- Operating temperature range extends from -40°C to 85°C for versatile industrial use.
- Utilizes MOSFET output type with low off-state leakage current of 10 nA.
- The control voltage range is from 1.14 V minimum to 1.5 V maximum for low voltage control input.
- Compliant with UL, RoHS, and cUL standards ensuring reliable safety and environmental compliance.
Product Description
Panasonic AQY225R2V PhotoMOS AQY Series Solid State Relay is engineered for accurate low-level analog signal control, ideal for industrial automation, electrical and control systems that require reliable switching performance at low currents and voltages.
This relay offers a maximum load current rating of 0.12 A and a maximum load voltage of 80 V, making it suitable for precision control in PCB-mounted applications. It features a low on-state resistance of 23.5 Ohms that minimizes power dissipation and heat generation, enhancing efficiency.
The relay uses a MOSFET output type delivering low off-state leakage current of just 10 nA, ensuring minimal signal interference in sensitive circuits. The control input voltage range of 1.14 V to 1.5 V allows integration with low-voltage control logic systems. The compact SOP-4 package with dimensions 2.7 mm length, 4.5 mm width, and 1.8 mm height supports efficient PCB space management and surface mount assembly.
Designed to operate reliably within a temperature spectrum of -40°C to 85°C, this relay is suitable for demanding industrial environments. It holds certifications under UL, RoHS, and cUL standards, endorsing quality and safety in electrical applications.
This Panasonic PhotoMOS relay is particularly useful for automation systems, signal conditioning, industrial machinery, and instrumentation where solid-state switching enhances performance and durability over mechanical relays.
Maximum load current of 0.12 A enables precise switching. Maximum load voltage rating of 80 V supports low voltage circuits. Compact SOP-4 surface mount package for PCB mounting. Low on-state resistance reduces power loss during operation.
Wide operating temperature range from -40°C to 85°C. Low off-state leakage current of 10 nA for sensitive applications. MOSFET output type ensures fast and reliable switching. Certified to UL, RoHS, and cUL standards for compliance and safety.
Explore a wide range of Solid State Relays in our Electronics & Electricals category at EnvMart for industrial automation and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current of this model is 0.12 A.
It supports a maximum load voltage of 80 V.
This model utilizes a MOSFET output type.
The control voltage range is from 1.14 V minimum to 1.5 V maximum.
The dimensions are 2.7 mm in length, 4.5 mm in width, and 1.8 mm in height.
The on-state resistance is 23.5 Ohms.
It operates within a temperature range of -40°C to 85°C.
The off-state leakage current is 10 nA.
This relay is designed for PCB mounting with a surface mount terminal type.
It is compliant with UL, RoHS, and cUL standards.
The contact configuration is SPST (Single Pole Single Throw).
It is suitable for industrial automation, signal conditioning, and instrumentation where solid-state switching is required.
