Omron Solid State Relay 1A Load 40V Surface Mount SPST MOSFET G3VM

Free Delivery in India | Lowest Global Shipping Charges

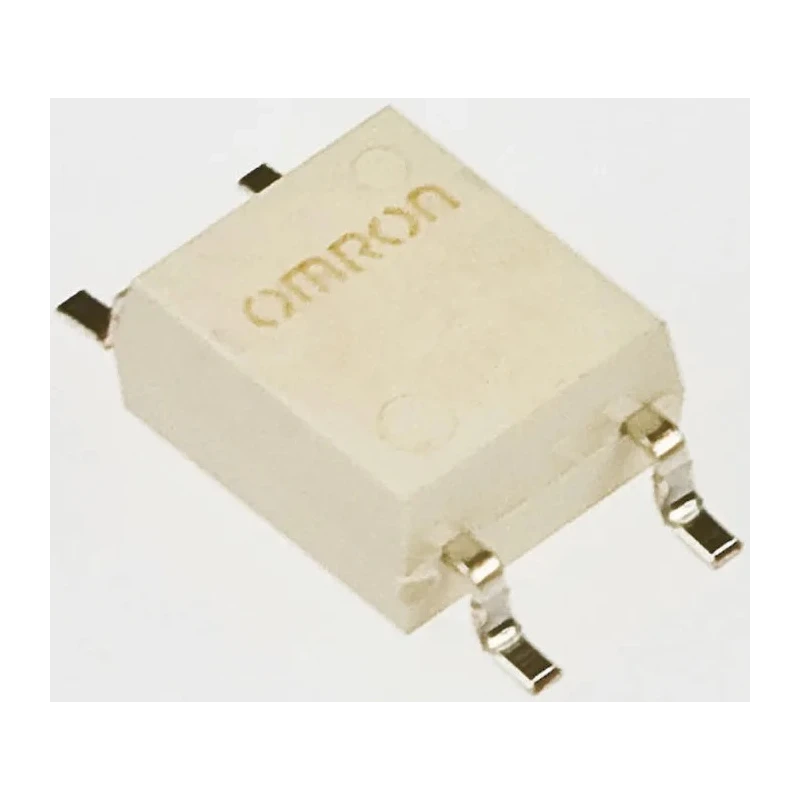

Omron Solid State Relay 1A Load 40V Surface Mount SPST MOSFET G3VM

Name: Omron Solid State Relay 1A Load 40V Surface Mount SPST MOSFET G3VM
Brand: Omron
SKU: 425354
Price: 6.61 USD
Availability: InStock



Category Solid State Relay Brand Omron Condition New

Specifications

Country of Origin	Japan
Brand	Omron
Height	1.9mm
Length	3.9mm
Model	G3VM
Width	4.4mm
Mount Type	Surface
Output type	MOSFET
Series	G3VM
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Maximum Load Current	1A
Standards/Approvals	RoHS
Maximum Load Voltage	40V
Minimum Load Voltage	0V ac
Minimum Control Voltage	1.18V
Maximum Control Voltage	1.5V

Key Features

This relay provides silent operation and high shock resistance for reliable switching.
It operates with a low minimum control voltage of 1.18V and a maximum of 1.5V.
The compact SOP4 package enables space-saving PCB mounting.
Engineered for long operational life with minimal leakage current.
Operational temperature ranges from -40°C to 85°C for diverse environments.
Load voltage up to 40V AC and maximum load current of 1A ensure versatility in signal switching.
RoHS compliant construction supports environmentally responsible applications.
Ideal for industrial, telecommunications, and measurement equipment applications.

Product Description

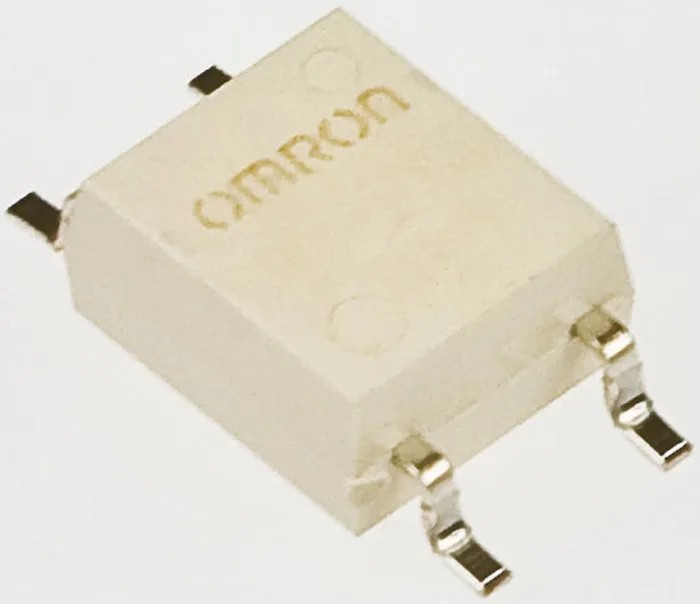

Omron G3VM-41GR8 is a high-quality Solid State Relay (SSR) designed for maintenance-free, reliable operation in industrial and electronic applications. This MOSFET-based relay supports a 1A maximum load current at a load voltage of up to 40V, featuring a SPST (single pole single throw) normally open contact configuration within a compact SOP4 surface mount package.

The relay provides a low control voltage range between 1.18V and 1.5V, enabling precise micro-analog signal control with photo-LED input, ensuring silent and efficient switching without mechanical wear. Its small form factor (dimensions: 3.9mm length, 4.4mm width, 1.9mm height) makes it ideal for compact PCB assemblies.

Key benefits include excellent shock resistance, high insulation, long operational durability, and compact size, making it suitable for test and measurement equipment, broadband and telecommunication systems, data loggers, and amusement systems.

Silent operations with high shock tolerance ensure stable switching performance. Compact surface mount design with four PCB terminals simplifies integration. Operational temperature range from -40°C to 85°C broadens application environments.

RoHS compliant construction supports environmental regulations. High current load capacity and low leakage current ensure energy-efficient reliable operations. Photo-LED input enables precise electronic control with high-speed switching response.

The G3VM-41GR8 SSR from Omron combines the durability of solid state technology with efficient MOSFET switching, suitable for industrial automation, laboratory instrumentation, telecommunications, and data acquisition systems. Its compact size and efficient operation improve production efficiency and reliability in electrical and electronic assemblies.
