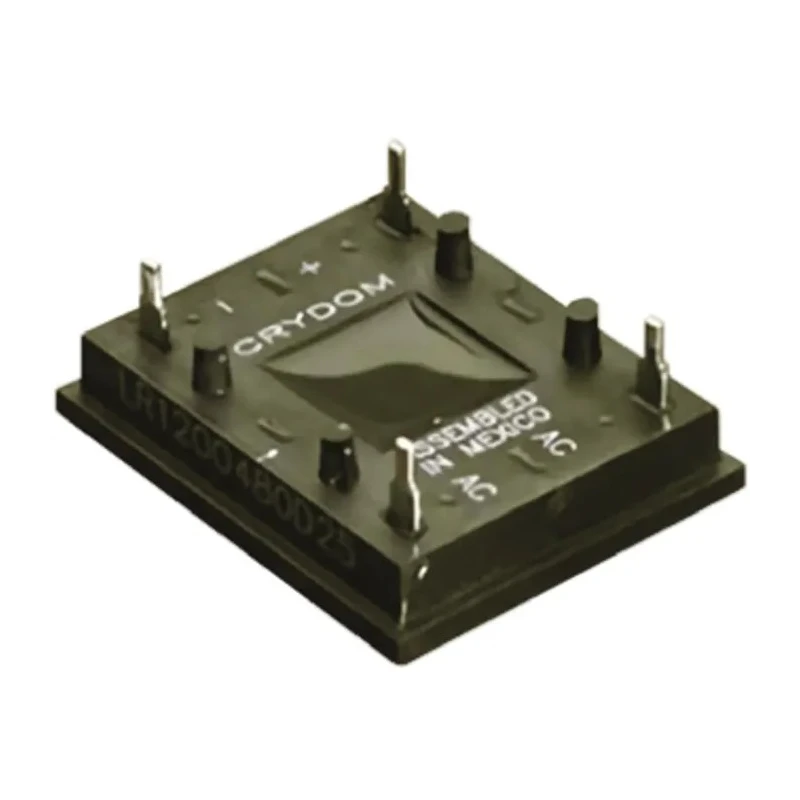

Crydom LR Series Solid State Relay PCB Mount 40A Load 530Vrms Load 32V DC Control LR600240D40

Crydom LR600240D40 is a Solid State Relay (SSR) from the LR Series, designed for PCB mounting. This DIP SSR supports a robust 40 ampere maximum load current at a high load voltage of 530 Vrms, suitable for various industrial and automation control applications which require precise and reliable switching.

The relay operates using a zero-cross switching function to minimize electrical noise and prolong device life, making it ideal for use in circuit boards and machinery control panels. It accommodates control voltages ranging from 4V DC minimum up to 32V DC maximum, providing flexibility in control signal design.

Constructed with a through-hole terminal type and a Single Pole Single Throw Normally Open (SPST-NO) contact configuration, the relay ensures secure and stable mounting on printed circuit boards. The physical package is a low-profile DIP-4 format measuring 35mm in length, 28.4mm in width, and 6.3mm in height, facilitating space-saving designs.

Operating temperature ranges from -30°C to +80°C, allowing this SSR to perform reliably in harsh industrial environments. Additionally, it features an off-state leakage current of just 0.1mArms and a capacitance of 8pF, contributing to efficient electrical performance. The output type uses SCR technology, providing robust switching capabilities.

Manufactured in Mexico, the Crydom LR Series SSR meets CE and RoHS standards, confirming compliance with international safety and environmental requirements. Typical applications include industrial automation, machinery production lines, HVAC controls, and other electrical equipment requiring precise solid state switching solutions.

Compact DIP-4 package dimensions suited for PCB mounting. High load capacity of 40A at 530Vrms ensures compatibility with heavy electrical loads. Zero Cross Switching function minimizes electrical interference and enhances relay durability.

Wide control voltage tolerance supports versatile operation. Robust through-hole terminal design for secure PCB integration. Wide operational temperature range enables use in diverse industrial settings. Low off-state leakage current and SCR output type optimize electrical characteristics.

Compliance with CE and RoHS standards guarantees quality and safety.
