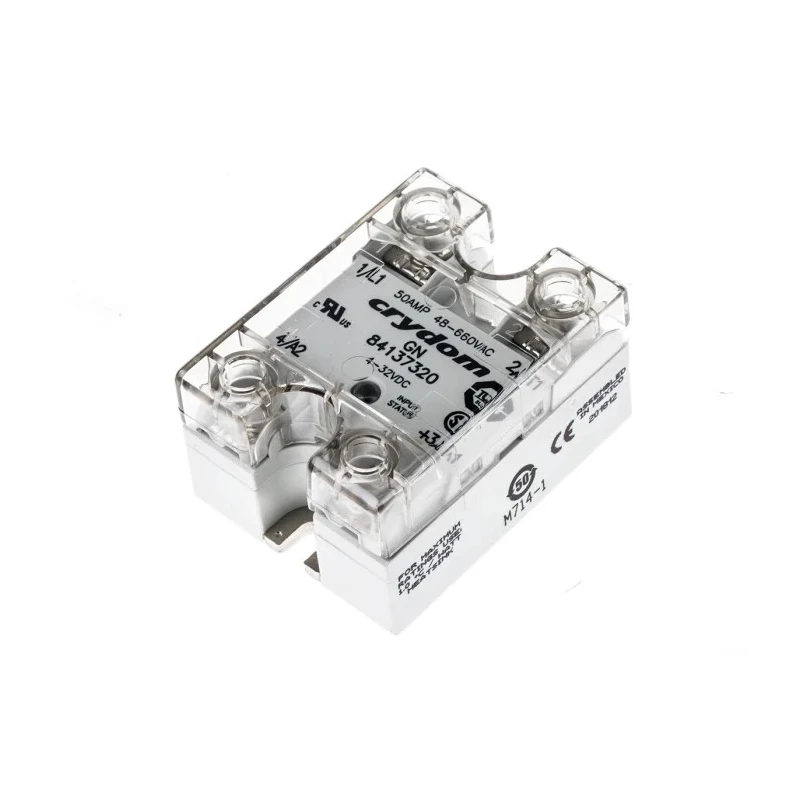

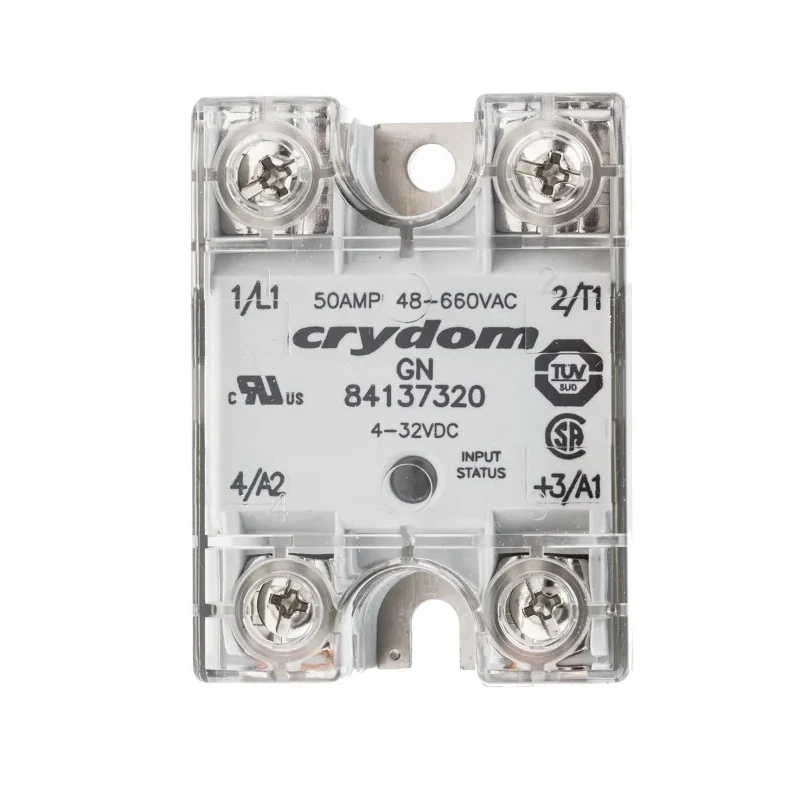

Crydom GN Series Solid State Relay, 50 A Load, Panel Mount, 660 V AC Load, 32 V DC Control 84137320

Crydom 84137320 GN Series Solid State Relay is a high-performance electronic switching device designed for industrial and commercial electrical control systems. It supports a maximum load current of 50 Amps and a maximum load voltage of 660 V AC, controlled via a 32 V DC input, making it suitable for demanding panel mount applications.

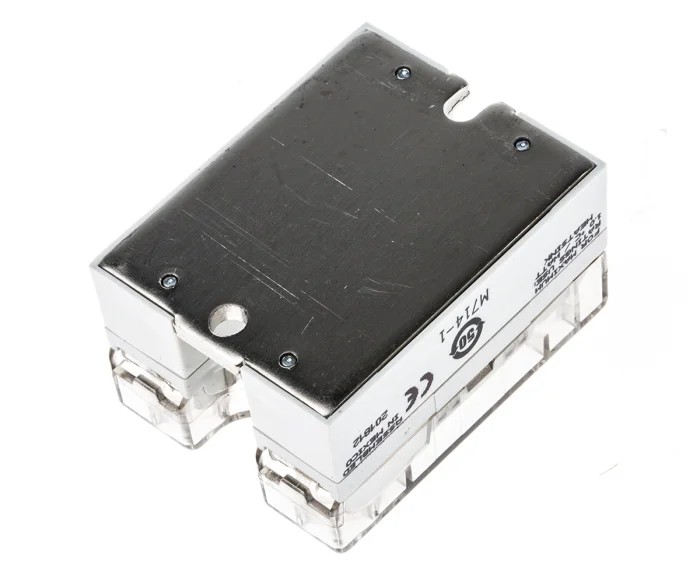

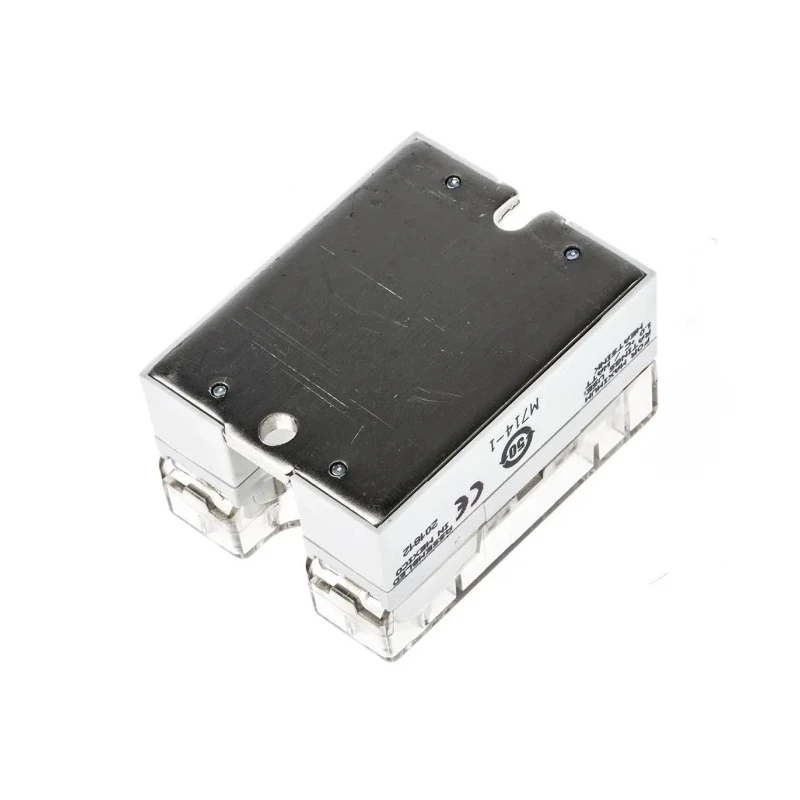

The relay operates reliably over a wide temperature range from -40°C to 80°C, ensuring stable performance under harsh environmental conditions. The solid construction includes a tough aluminium baseplate that resists corrosion and mechanical impacts, extending the relay's operational life with an MTBF exceeding 11 million hours at 40°C.

This device utilizes a triac output type and offers instantaneous switching, enabling rapid activation or deactivation of electrical circuits within half a cycle, beneficial for precise motor control and electronic equipment.

Screw-type terminals allow for secure and easy wiring in electrical panels. Additionally, the relay is equipped with anti-rotation barriers on its housing to maintain position stability when mounted on panels subject to vibrations or shocks.

With a low off-state leakage current of 0.25 mA RMS and an 8 pF capacitance, it minimizes unwanted circuit loading and interference. The compact dimensions of 57.3 mm height and 44.5 mm length facilitate integration into tight spaces within control cabinets.

Broad operating temperature range from -40°C to +80°C for harsh environmental tolerance. Aluminium baseplate provides corrosion resistance and mechanical durability. Instantaneous switching ensures fast response for controlling power loads.

Screw terminal type for reliable and secure electrical connection. Built-in LED indicator displays operating status of the relay. Low leakage current reduces power loss during off state. Compact size enables easy panel mounting in industrial control systems.

Compliance with CE and RoHS standards guarantees quality and safety.

This solid state relay is ideal for use in consumer electronics, motor drives, medical devices, and various industrial automation systems requiring robust and reliable AC load switching. The product supports applications in manufacturing, electrical panels, HVAC control, and other industrial fields.
