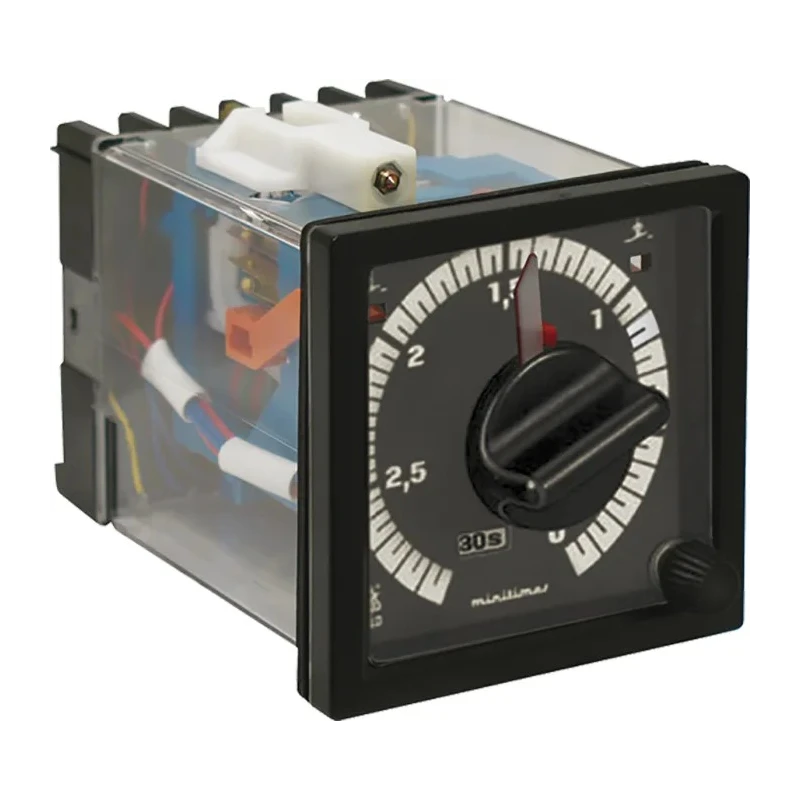

Dold 7666 Series Panel Mount Timer Relay, 4-Contact, DPDT Switch, 60 V dc 230V ac, 0.2 s EF7666.24 AC50/60Hz 230V 0,2s-60h
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Function | Offset Double Ring End, Timer |
| Length | 72mm |
| Model | EF7666.24 AC50/60Hz 230V 0,2s-60h |
| IP Rating | IP40, IP30, IP20, IP65, IP10 |
| Mode | Continuous Operation |
| Width | 128mm |
| Mount Type | Panel Mount |
| Series | 7666 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.2 s → 60 h |
| Number of Contacts | 4 |
| Number of Timer Functions | 6 |
| Switching Voltage | 250V ac |
| Contact Current | 4A |
| Supply DC Voltage | 60 V dc |
| Supply AC Voltage | 230V ac |
| EF 7666 | front side protected against beam water, IP 65 |
| AA 7666 | width 45 mm |
| EC 7666 | front size 48 x 72 mm |
| EH 7666 | front size 96 x 96 mm |
Key Features
- The relay features 4 contacts with a DPDT switch configuration for versatile applications.
- Supports supply voltage of 60 V dc and 230 V ac for flexible power options.
- Operates continuously and supports time-dependent controls industrially.
- Has IP ratings including IP40, IP30, IP20, IP65, and IP10 for protection against environmental factors.
- Includes time lapse and switching position displays for clear operation status.
- Designed to operate within a temperature range from -20°C to 55°C.
- Precise repeat accuracy up to ±0.5% for most time ranges, ensuring reliability.
- Compact panel mount design fitting in a 72 mm length and 128 mm width footprint.
Product Description
Dold EF7666.24 AC50/60Hz 230V 0,2s-60h Panel Mount Timer Relay is a high-quality electrical component designed for industrial and automation applications. With a versatile time range from 0.2 seconds up to 60 hours, it supports precise timing control for various processes and machine operations.
This relay features a DPDT switch with 4 contacts and 6 distinct timer functions adaptable to different use cases. It supports both 60 V dc and 230 V ac supply voltages, providing operational flexibility. The device operates continuously within temperature limits of -20°C to 55°C, suitable for demanding industrial environments.
The product includes intuitive time lapse and switching position displays, enabling operators to monitor the timing status effectively. Protection standards such as IP40, IP30, IP20, IP65, and IP10 make it suitable for environments requiring varying levels of ingress protection.
The compact panel mount format measures 72 mm in length and 128 mm in width, facilitating easy integration in control panels. Manufactured in Germany, this timer relay complies with numerous international standards including IEC/EN 61000 series, DIN, UL Subject 94, and EN 50 005, ensuring reliability and safety.
The relay supports up to 4A contact current for efficient circuit control. The EF 7666 variant is front-side protected against beam water with an IP65 rating. The product series includes variations with different dimensions, suitable for diverse application needs.
Its precise repeat accuracy of up to ±0.5% guarantees consistent timing performance. The relay is ideal for time-dependent control tasks in industrial automation, manufacturing, and electrical systems. Explore all Timer Relays and related products for industrial automation needs with confidence through EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a time range from 0.2 seconds to 60 hours, allowing for versatile timing control in various applications.
It supports both 60 V dc and 230 V ac supply voltages, providing flexibility for different operational needs.
This unit has 4 contacts configured as a DPDT switch, enabling diverse switching applications.
The maximum operating temperature is 55°C, making it suitable for various industrial environments.
The timer relay has multiple IP ratings including IP40, IP30, IP20, IP65, and IP10, offering varying levels of protection against environmental factors.
It supports a contact current of up to 4A, which is effective for circuit control in various applications.
This model measures 72 mm in length and 128 mm in width, designed for panel mounting.
It includes 6 distinct timer functions, allowing for adaptability in various timing scenarios.
The minimum operating temperature for this model is -20°C, suitable for colder environments.
Yes, this relay is designed for continuous operation, making it ideal for time-dependent control tasks.
It features a panel mount design, facilitating easy integration into control panels.
This timer relay is manufactured in Germany, ensuring compliance with international standards.
