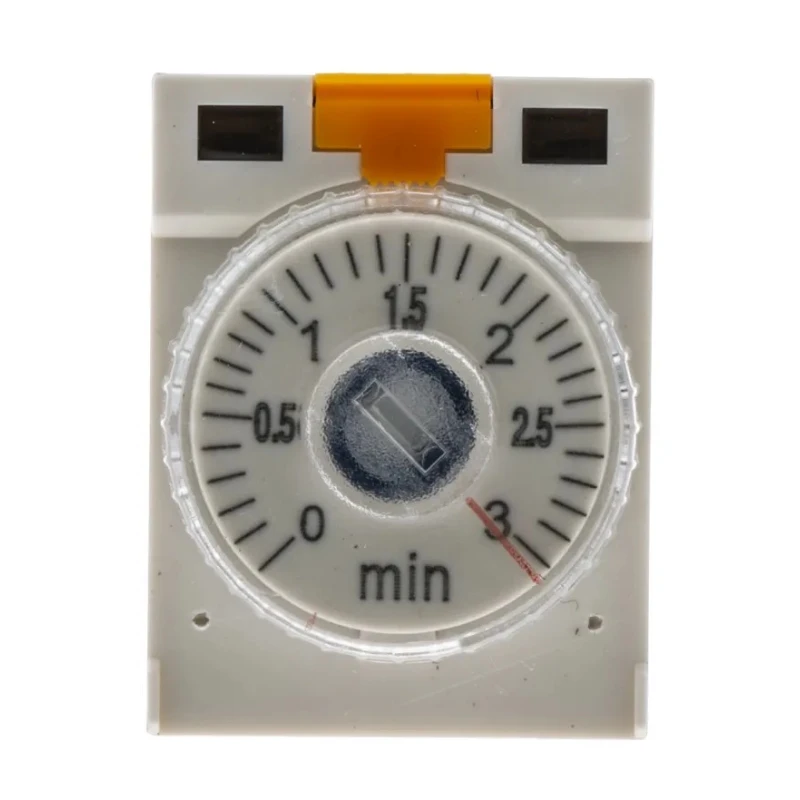

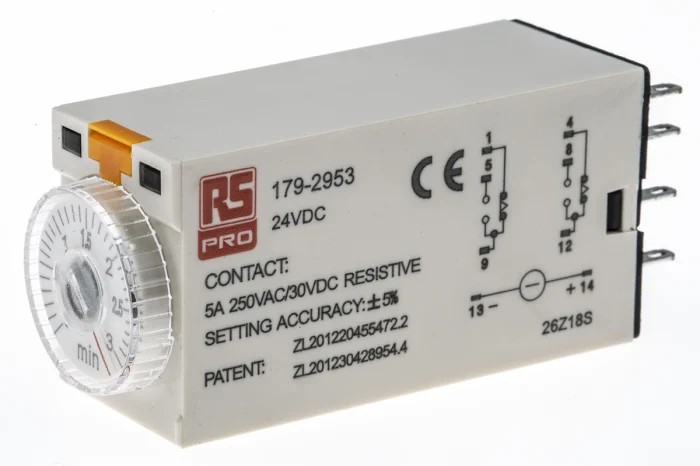

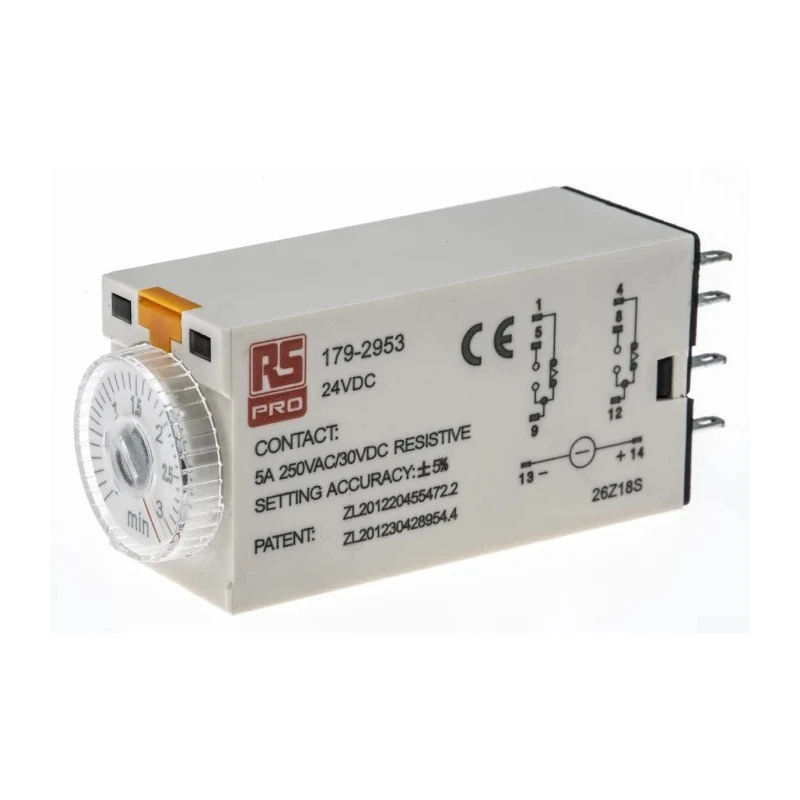

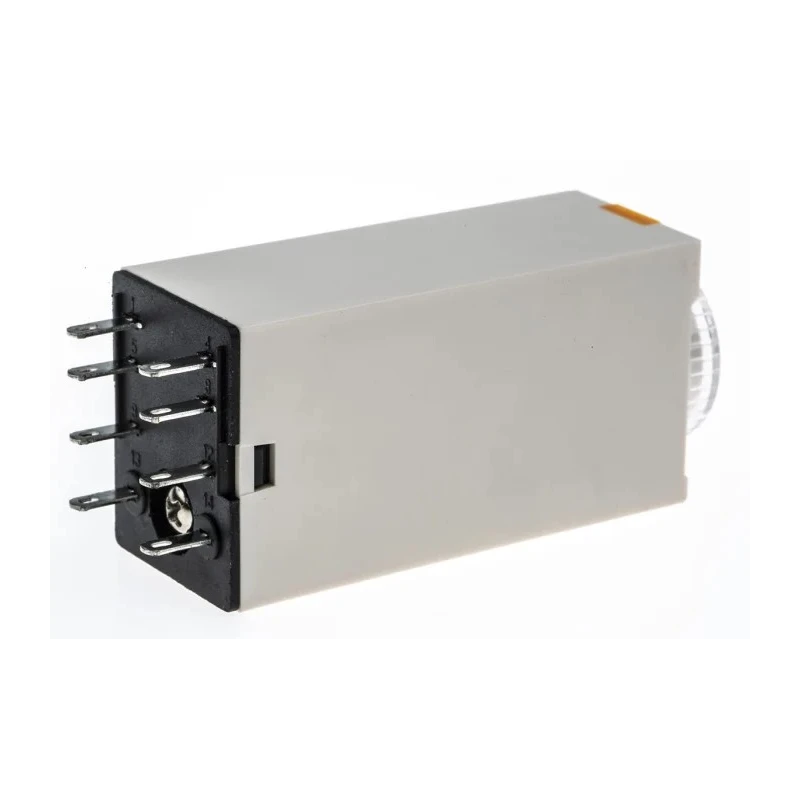

RS PRO Timer Relay, 2-Contact, 24 V dc 24V ac, 0.1 to 3 min Time Range, 1-Function, DPDT Switch Configuration 2-Contact
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 2.8mm |
| Length | 53mm |
| Model | 2-Contact |
| Mode | ON Delay |
| Width | 21.5mm |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | 8-Pin |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 24 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 24V ac |
| Suitable sockets for the 8-pin and 14-pin timer relays from this series are | 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.) |
| RS PRO Plug In Timer Relay, 24V dc, 2-Contact, 1 → 30min, 1-Function, DPDTBrand | RS PRO |
Key Features
- Operates with a 24 V dc and 24V ac supply voltage.
- On delay timer mode with dial timing adjustment for precise control.
- Supports a switching voltage up to 250V ac and contact current of 5A.
- Equipped with an 8-pin terminal type for secure connection.
- Operating temperature range from -10°C to 55°C ensures reliable performance.
- Complies with RoHS standards for environmental safety.
- Plug-in design for ease of installation and replacement.
Product Description
RS PRO 2-Contact Timer Relay 2-Contact, 24 V dc 24V ac, 0.1 to 3 min time range, suitable for various industrial and electrical automation applications requiring precise timing control.
This timer relay features a dual pole double throw (DPDT) contact configuration with a switching voltage of up to 250V ac and contact current rating of 5A, making it ideal for medium-power control circuits.
The relay operates on both 24 V dc and 24V ac supply voltages, fitted with an 8-pin terminal type for plug-in installation, allowing for convenient replacement and maintenance.
It offers an on-delay mode with a dial timing adjustment to accurately set the timing interval within 0.1 to 3 minutes, supporting diverse timing requirements in industrial automation systems.
The compact and robust design with dimensions of 53mm length, 21.5mm width, and 2.8mm height enables integration into control panels with limited space. Its operating temperature range from -10°C to 55°C ensures stable and reliable operation in varied environmental conditions.
The product complies with RoHS standards, emphasizing its environmentally friendly manufacturing and reduced hazardous substances. Operates with a 24 V dc and 24V ac supply voltage. On delay timer mode with dial timing adjustment for precise control.
Supports a switching voltage up to 250V ac and contact current of 5A. Compact dimensions: 53mm length, 21.5mm width, and 2.8mm height. Equipped with an 8-pin terminal type for secure connection. Operating temperature range from -10°C to 55°C ensures reliable performance.
Complies with RoHS standards for environmental safety. Plug-in design for ease of installation and replacement.
This RS PRO Timer Relay is suited for industrial automation, electrical controls, HVAC systems, manufacturing equipment, and other electrical timing control applications requiring precise delay functions.
Explore more Timer Relays and other electrical components in the Electronics & Electricals - Relays & Contactors category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This timer relay has a time range of 0.1 to 3 minutes, allowing for precise timing control in various applications.
It features a dual pole double throw (DPDT) contact configuration, suitable for medium-power control circuits.
This model operates on both 24 V dc and 24 V ac supply voltages, providing versatility for different electrical systems.
The relay supports a maximum switching voltage of up to 250 V ac, making it suitable for various control applications.
It has a contact current rating of 5 A, allowing it to handle medium-power loads effectively.
The dimensions of this unit are 53 mm in length, 21.5 mm in width, and 2.8 mm in height, making it compact for installation in control panels.
The operating temperature range is from -10°C to 55°C, ensuring reliable performance in various environmental conditions.
Timing is adjusted using a dial, allowing for precise control of the timing interval within the specified range.
It is equipped with an 8-pin terminal type, facilitating secure connections and easy installation.
This model complies with RoHS standards, emphasizing its environmentally friendly manufacturing practices.
Suitable sockets for the 8-pin timer relay include models 121-7802 or 121-7803, which come with a metal clip.
This timer relay operates in an ON delay mode, which is ideal for applications requiring a delay before activation.
