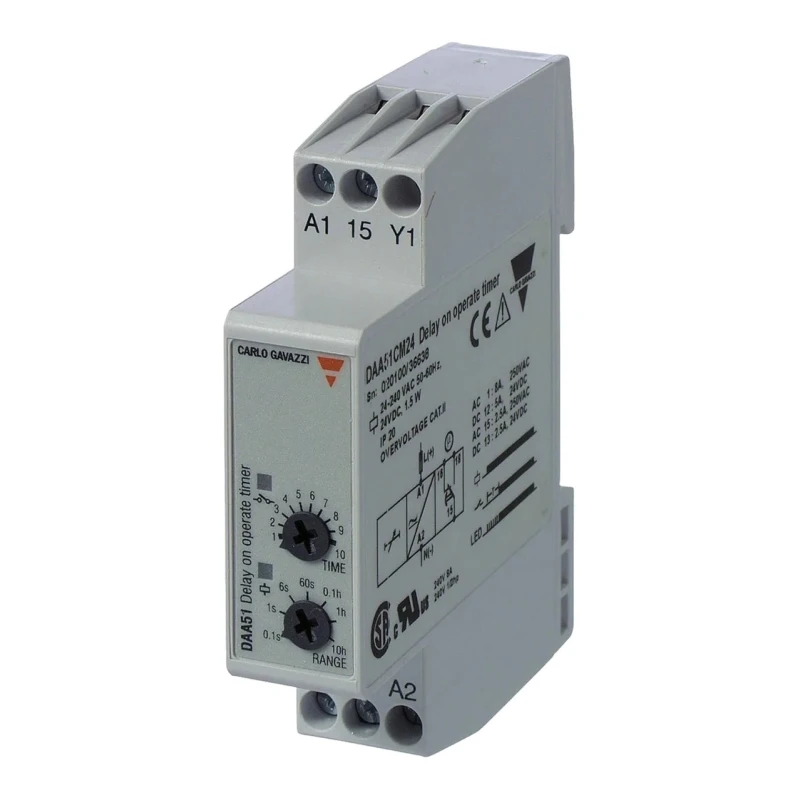

Carlo Gavazzi Mini-D Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V dc 24V ac, 240 V ac, 0.1 s to 100 h DAA51CM24

Carlo Gavazzi DAA51CM24 Mini-D Series DIN Rail Timer Relay is a high-precision, compact electromechanical timer specifically designed for industrial and automation applications. Featuring a single function ON delay timer with a wide adjustable time range from 0.1 seconds up to 100 hours, it is ideal for a variety of control environments including chemical industries, mining, irrigation, textiles, raw material handling, food and beverages, and general industrial process controls.

This timer relay supports a combined supply voltage range of 12 to 240 V dc and 24V to 240 V ac, providing flexibility in power sources. Its 2 C/O (SPDT) contact configuration supports a switching voltage up to 250V ac and a current rating of 5A, suitable for reliable control switching demands.

Designed for DIN rail mounting, the relay offers compact dimensions of 81mm height, 67.2mm length, and 17.5mm width, making it space-efficient for control panels. It features a knob-adjustable timing adjustment and knob selection of 7 time ranges, allowing users to precisely select the desired delay time. LED indicators provide clear visibility of the relay status and power supply for easy monitoring.

The device is rated IP20 for protection against solid objects and complies with standards such as IEC 60664, IEC 60038, IEC 60529, UL, CSA, CE, and RINA (for DAA51 only), ensuring safety and regulatory compliance.

Its reliable operation in temperature ranges from -20°C to 60°C and automatic start mode allow it to perform consistently in diverse industrial environments. The repeatability of ≤ 0.2% further guarantees precise timing accuracy.

The Carlo Gavazzi DAA51CM24 Mini-D Series Timer Relay is a cost-effective timing solution for automation control, suitable for industries requiring precision timing for operational processes.

7 selectable time ranges covering 0.1 seconds to 100 hours. Knob adjustable time setting for precise timing configuration. 2 C/O SPDT relay contacts rated at 5A. Wide power supply compatibility: 12 to 240 V dc and 24V to 240 V ac.

Compact DIN rail mounting with dimensions 81 mm×67.2 mm×17.5 mm. LED indication for relay and supply status. Operating temperature range from -20°C to 60°C. Compliant with multiple safety and performance standards including UL, CE, CSA, and RINA.

Automatic start function with high repeatability ≤ 0.2%. Explore the range of Carlo Gavazzi products and other Timer Relays at EnvMart for reliable industrial automation components.
