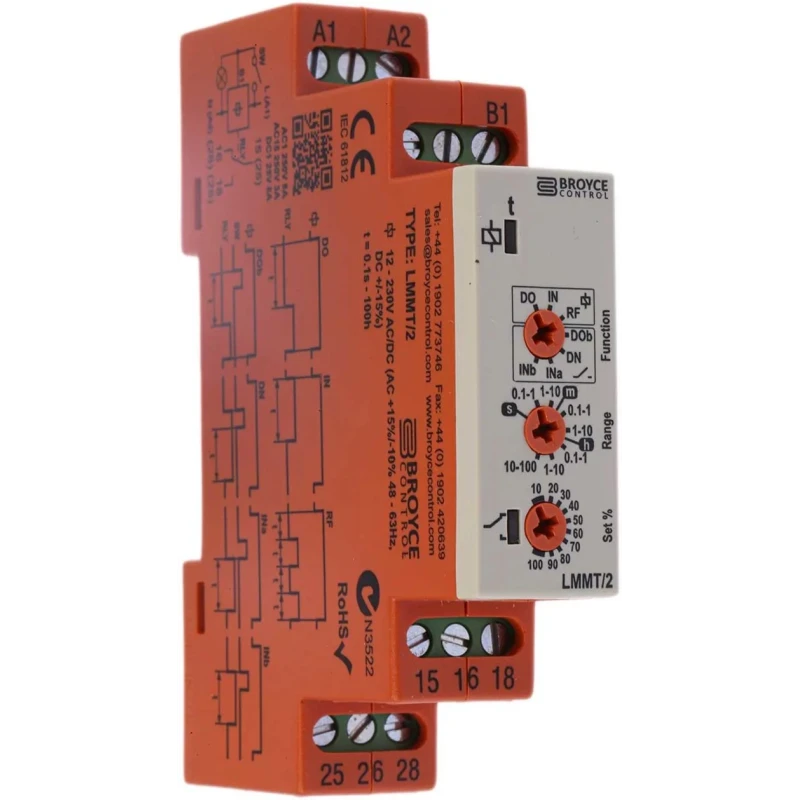

Broyce Control Multifunction DIN Rail Timer Relay 2-Contact DPDT 230 V AC/DC, 24 V AC, 0.1 s to 100 h LMMT/2 12-230V AC/DC

Broyce Control LMMT/2 12-230V AC/DC multifunction DIN rail timer relay is engineered for precise timing control in industrial and automation applications. This compact solid-state timer supports a wide range of delay functions from 0.1 seconds up to 100 hours, making it adaptable for diverse timing needs.

Featuring 2-contact DPDT output relays rated at 8A, it allows reliable switching capability in process control and automation environments. The timer operates on supply voltages from 12 V DC to 230 V AC/DC and 24 V AC, providing versatile power input options.

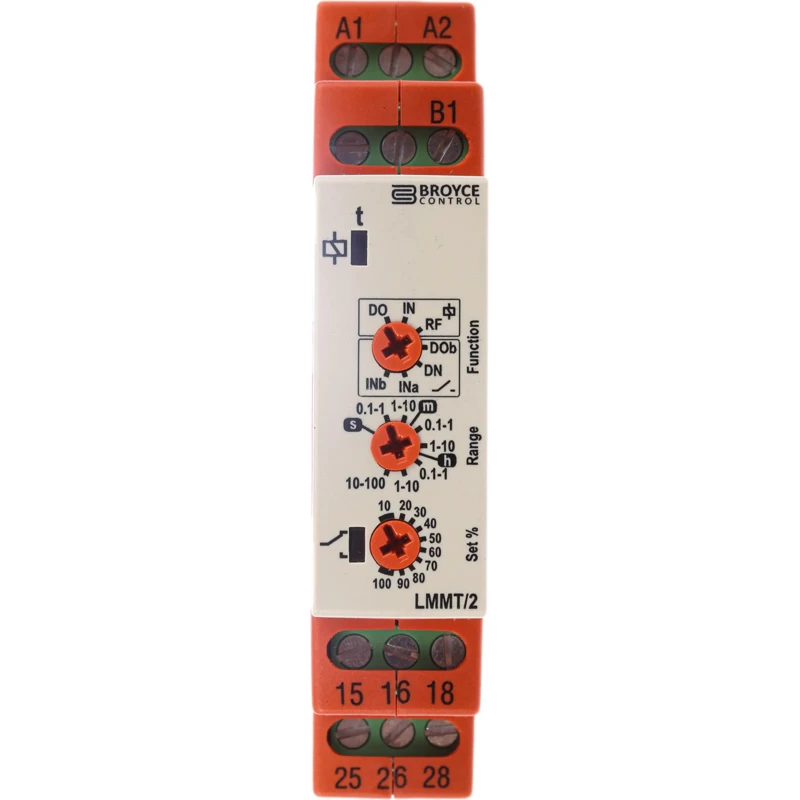

Users benefit from intuitive programming using two rotary switches on the relay's front, enabling seven selectable time ranges including fine adjustments through a screwdriver slot. The green and red LED indicators provide clear visual feedback of supply power, timing cycles, and relay status, facilitating easy monitoring.

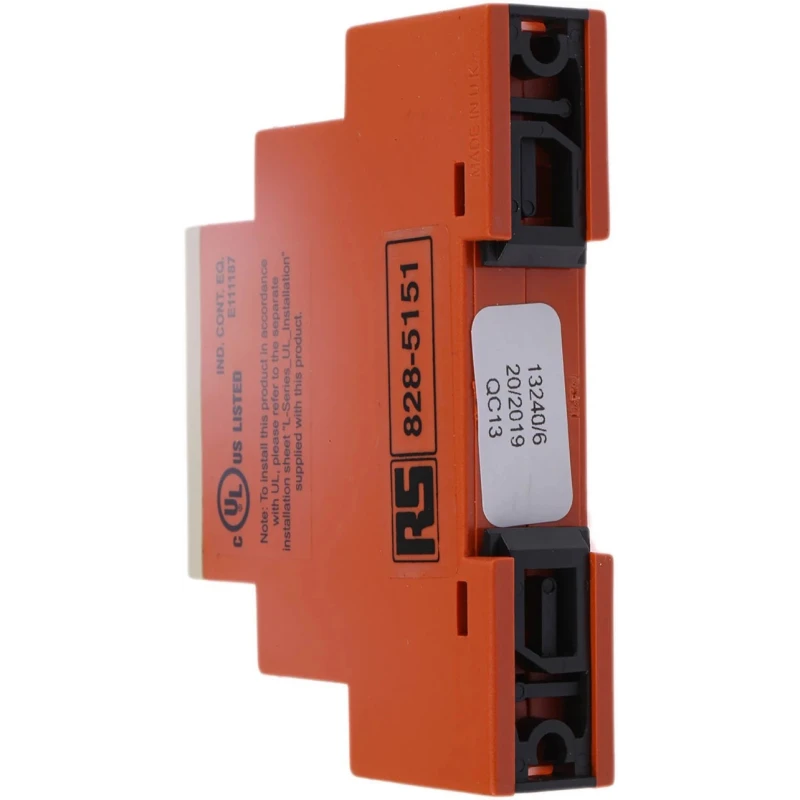

The device's compact design with a 17.5 mm wide DIN rail mount housing makes it ideal for complex control panel installations where space optimization is critical. Its operating temperature range from -20°C to 60°C ensures durability under varying industrial conditions.

Key features include multifunction modes such as delay ON, delay OFF, intervals, asymmetrical recycler functions, and external trigger options compatible with voltage-free or solid-state contacts. This robust timer relay is suitable for industries including textiles, chemical processing, mining, irrigation systems, raw material handling, food and beverage production, and broader industrial process control.

Operates over 7 selectable time ranges from 0.1 seconds up to 100 hours. Equipped with 2 DPDT relay outputs rated for 8A contact current. Supports supply voltages ranging from 12 V DC to 230 V AC/DC and 24 V AC. Compact 17.5 mm wide housing suitable for DIN rail mounting.

Features LED indication for supply, timing status, and relay status for clear operational feedback. Adjustable timing via screwdriver slot for fine calibration of delays. Robust temperature range from -20°C to 60°C supports industrial environments.

Applications include industrial process control, chemical industry, mining, irrigation, and food and beverage sectors. Precise multifunction modes including delay ON/OFF, interval, asymmetrical recycler, and watchdog functions.

High reliability solid-state design manufactured in the United Kingdom.

This Broyce Control multifunction timer relay is UL, CE, and IEC approved, assuring compliance with international safety and quality standards. It provides a reliable timing solution suitable for a wide range of industrial automation and process control applications. For more products in this category, browse the Timer Relay section on EnvMart.
