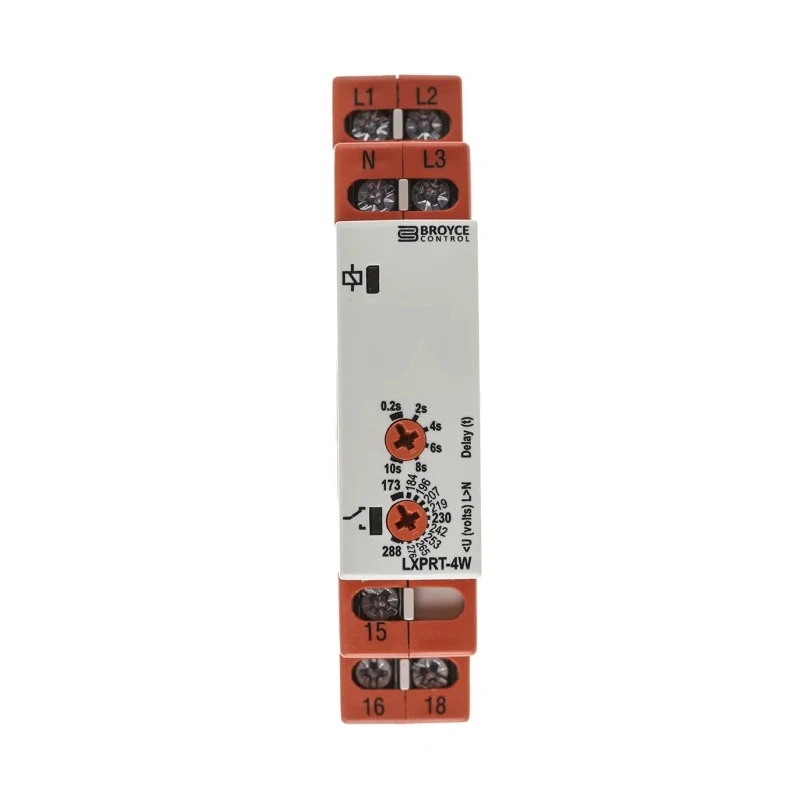

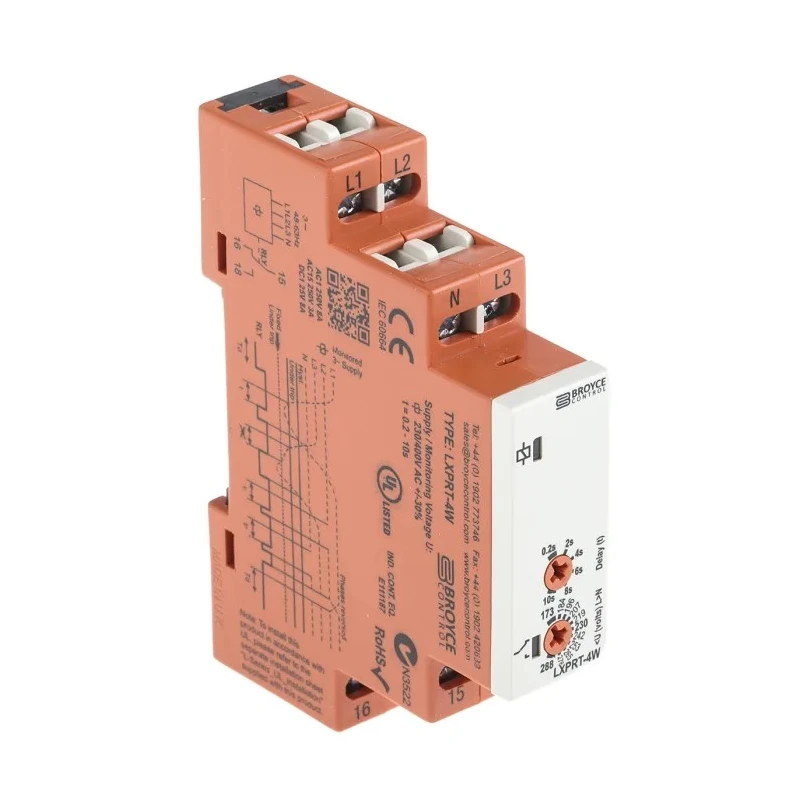

Broyce Control 3 Phase Monitoring Relay, 173/288 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 230V LXPRT-4W 230V (400V)

Free Delivery in India | Lowest Global Shipping Charges

Broyce Control 3 Phase Monitoring Relay, 173/288 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 230V LXPRT-4W 230V (400V)

Name: Broyce Control 3 Phase Monitoring Relay, 173/288 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 230V LXPRT-4W 230V (400V)
Brand: Broyce Control
SKU: 411201
Price: 115.68 USD
Availability: InStock



Category Relay Brand Broyce Control Condition New

Specifications

Country of Origin	United Kingdom
Brand	Broyce Control
Height	89mm
Length	66.5mm
Model	LXPRT-4W 230V (400V)
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Series	L
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	3
Switching Voltage	250V ac
Contact Current	8A
Supply DC Voltage	25 V ac
Supply AC Voltage	230V ac
Monitoring Voltage Range	173/288 V ac

Key Features

Features DIN rail mount for easy installation and maintenance.
Equipped with screw terminals providing secure electrical connections.
Includes green LED indicator for supply status and red LED for relay status.
Supports a switching voltage of up to 250V AC with a contact current rating of 8A.
Operates reliably within a temperature range up to 60°C for industrial environments.
Complies with CE, UL, RoHS, and IEC standards ensuring quality and safety.

Product Description

Broyce Control LXPRT-4W 230V (400V) is a 3 Phase Monitoring Relay designed for precise phase-to-phase voltage monitoring in electrical automation and control systems. It supports a monitoring voltage range of 173/288 V AC and includes a SPDT relay output capable of switching up to 8 amps at 250 V AC. The relay is supplied at 230 V AC with an auxiliary supply voltage of 25 V AC. The device is housed in a compact 17.5 mm DIN rail mount enclosure, ideal for industrial, manufacturing, HVAC, and electrical distribution panel applications.

This monitoring relay features screw terminals for secure wiring and easy maintenance. LED indicators provide clear visual feedback with a green light for supply presence and a red light indicating relay operation status. The relay operates reliably within an ambient temperature range reaching up to 60 degrees Celsius, making it suitable for demanding environments.

Compliant with international standards including CE, UL, RoHS, and IEC certifications, this product meets global safety and performance requirements. Its microprocessor-based LX Series design integrates user-configurable features and precise voltage monitoring for enhanced protection and system control.

DIN rail housing enables streamlined installation in control panels. Microprocessor-based technology ensures accurate and stable performance. Single-pole double-throw (SPDT) relay contact provides flexible switching options.

LED indication enhances operational monitoring and troubleshooting. Compact size optimizes panel space utilization. Approved for use in industrial automation, electrical control, and monitoring systems.

Suitable for use in electrical panels across industrial, commercial, HVAC, and manufacturing sectors, the Broyce Control LXPRT-4W monitoring relay ensures safe and efficient operation of three-phase electrical equipment.
