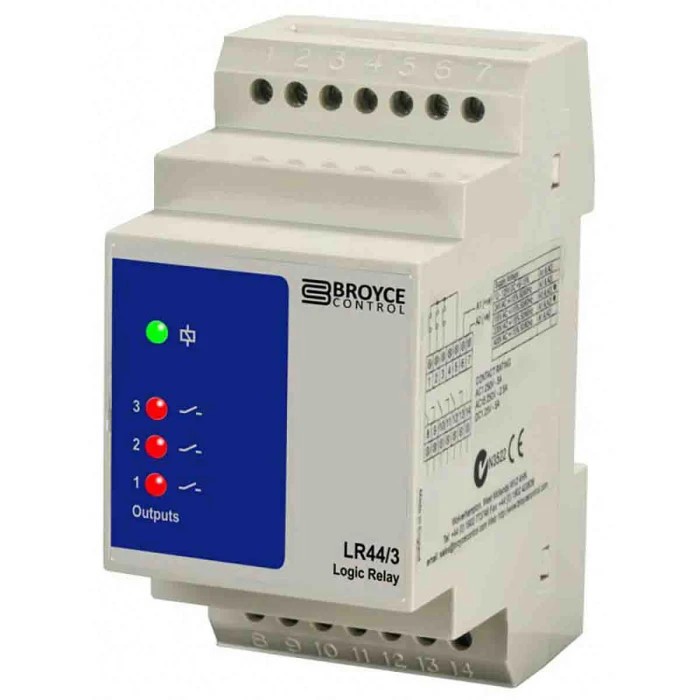

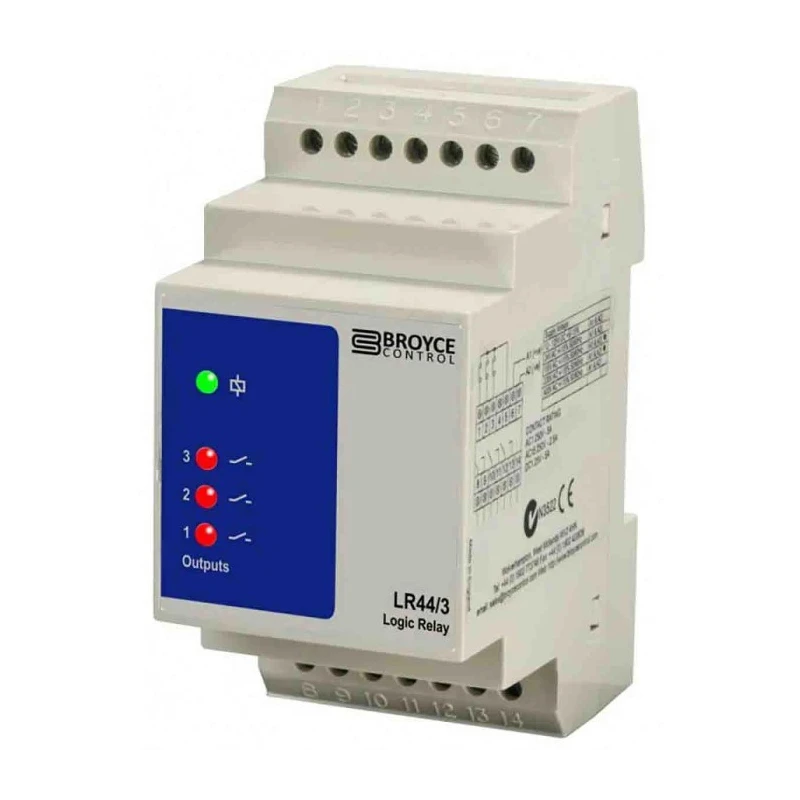

Broyce Control Monitoring Relay 3PST DIN Rail Mount 100V AC 230V AC 100-230V DC LR44/3 100-230V AC/DC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Broyce Control |
| Height | 85mm |
| Function | Stillson Pipe |
| Length | 63.5mm |
| Model | LR44/3 100-230V AC/DC |
| IP Rating | IP20 |
| Width | 44mm |
| Mount Type | DIN Rail |
| Series | 44 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PST |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Switching Voltage | 250V |
| Contact Current | 5A |
| Supply DC Voltage | 100 to 230 V dc |
| Supply AC Voltage | 100, 230V ac |
Key Features
- Monitors normally open external contacts with 3PST contact configuration.
- Mounts easily on DIN Rail with secure screw terminal connections.
- Supports supply voltage from 100 to 230 V AC and DC operation.
- Switching voltage rated up to 250 V with 5 A contact current capacity.
- Operates reliably within temperature range up to 60°C with IP20 protection.
- Includes isolated auxiliary supply for continuous operation.
- Alternates output relays on each contact closure with built-in helper function.
- Complies with RoHS, CE standards and EMC emissions and immunity requirements.
Product Description
Broyce Control LR44/3 100-230V AC/DC Monitoring Relay 3PST DIN Rail mount is engineered for industrial and automation applications requiring precise monitoring of motor, compressor, and generator operations.
This relay monitors the status of three external normally open contacts and alternates the output relays sequentially on each closure event, balancing wear across connected devices. It features a helper function that energizes secondary relays when multiple contacts close simultaneously ensuring operational continuity.
The product supports a wide supply voltage range from 100 to 230V AC or DC, with a switching voltage capacity of up to 250 V and a contact current rating of 5 amps. It has an IP20 ingress protection rating suitable for standard indoor electrical environments.
Compactly sized at 63.5 mm long, 44 mm wide, and 85 mm high, it easily mounts onto standard DIN rails using screw terminals for secure electrical connections. The isolated auxiliary power supply ensures the relay operates independently from the switching contacts.
Constructed in the United Kingdom, the LR44 series meets stringent industrial standards including RoHS compliance, CE certification, and EMC immunity and emission standards (EN 61000-6-2, EN 61000-6-3).
Monitors three external normally open contacts for motor and equipment control. Alternates relay outputs to balance operational load and wear. DIN Rail mounting with screw terminals ensures easy installation. Wide supply voltage range of 100 to 230 V AC or DC.
Contact current rating of 5 A with switching voltage up to 250 V. Compact design for space-saving application integration. Industrial-grade protection with IP20 rating. Compliance to RoHS, CE, and EMC standards guarantees safety and reliability.
Ideal for industrial, HVAC, manufacturing, and control system applications. Explore the range of Monitoring Relays and control devices at EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 3PST contact configuration, allowing it to monitor three external normally open contacts.
The relay supports a wide supply voltage range from 100 to 230 V AC or DC.
The maximum switching voltage is rated at 250 V.
It has a contact current capacity of 5 A.
The relay measures 63.5 mm in length, 44 mm in width, and 85 mm in height.
It has an IP20 ingress protection rating, suitable for standard indoor environments.
It operates reliably within a temperature range up to 60°C.
It includes a helper function that energizes secondary relays when multiple contacts close simultaneously.
It is designed for DIN Rail mounting, utilizing secure screw terminal connections.
It complies with RoHS, CE standards, and EMC emissions and immunity requirements.
It is constructed in the United Kingdom.
It is ideal for industrial, HVAC, manufacturing, and control system applications.
