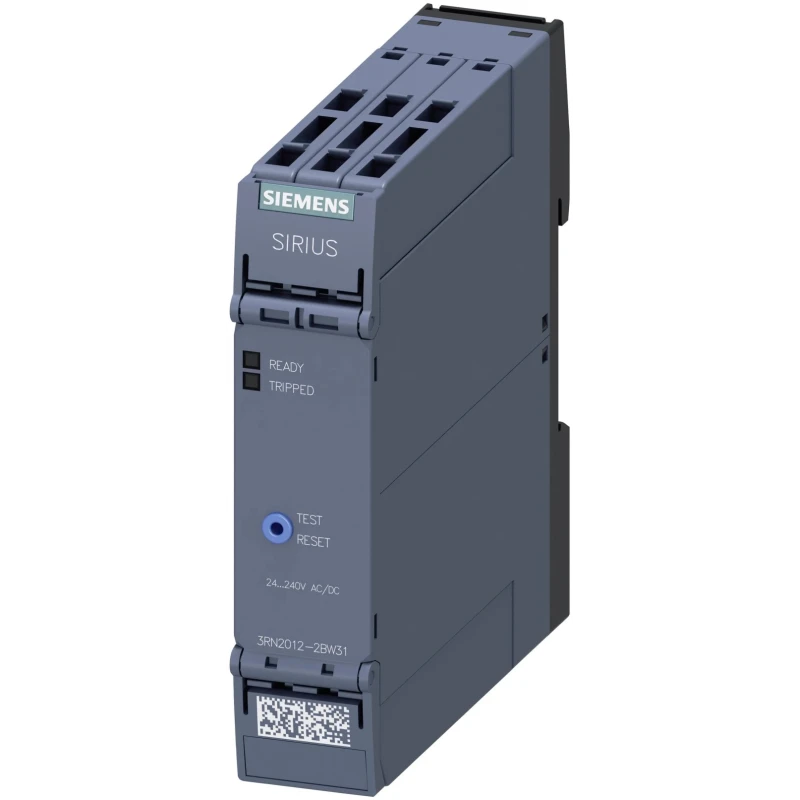

Siemens Monitoring Relay, DPDT Contact Configuration, DIN Rail Mount, 1W Power Consumption, Spring Terminal 3RN2012-2BW31

Siemens 3RN2012-2BW31 monitoring relay is an advanced device designed for industrial and automation applications requiring reliable temperature and motor protection. It features a double-pole double-throw (DPDT) contact configuration housed in a compact 22.5 mm enclosure, suitable for DIN rail mounting. With a low power consumption of only 1 watt, this relay provides efficient operation while ensuring robust electrical isolation and monitoring capabilities.

The relay’s equipped with spring terminals that facilitate secure wiring connections, minimizing maintenance requirements. It supports a supply AC voltage of 0V ac and offers a contact current of up to 5 amperes. Operating temperature ranges from -25°C to +60°C allow deployment in diverse environmental conditions.

This model features manual, automatic, and remote reset functionality combined with dual status LEDs indicating readiness and trip condition, enhancing usability. It incorporates comprehensive safety features such as galvanic isolation, wire break detection, and short circuit monitoring, ensuring reliable protection of electric motors and circuits.

Manufactured in Germany, the device conforms to industrial quality standards but has no special approvals or certifications listed. It is designed for applications in electrical automation, motor protection, industrial equipment, and process control environments.

Two change-over DPDT contacts for flexible control setups. Compact DIN rail mount enclosure facilitating integration into control panels. Low power consumption keeps operational costs minimal. Spring terminals provide robust and vibration-resistant connections.

Wide temperature operating range ensures adaptability to varying climates. IP20 protection offers basic ingress defense against solids. Manual, automatic, and remote reset options enable versatile control. LED indicators provide real-time status feedback.

Wire-break and short-circuit monitoring enhance operational safety. Galvanic isolation increases circuit safety and noise immunity.

Overall, the Siemens 3RN2012-2BW31 monitoring relay is suitable for applications in industrial automation, manufacturing, HVAC control systems, and other demanding electrical environments where precise motor and circuit monitoring is critical.
