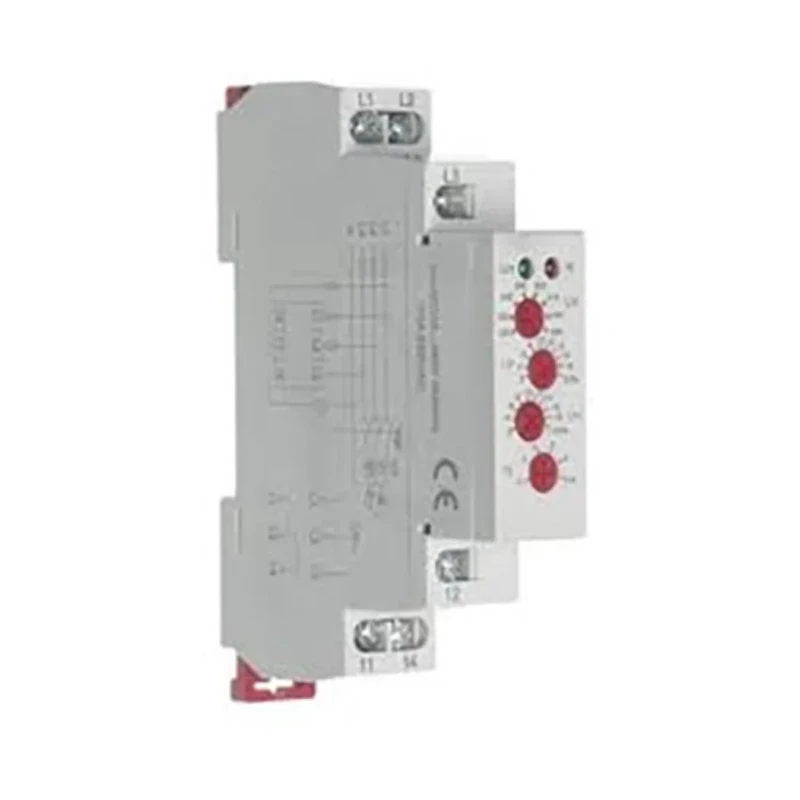

Relpol 3 Phase Monitoring Relay, Maximum 552 V Monitor Range, SPDT Contact Configuration, DIN Rail Mount, 220 V AC & ECPF08

Relpol ECPF08 3 Phase Monitoring Relay is a professional industrial-grade device developed for monitoring three-phase electrical systems, ensuring continuous operation by detecting phase loss or failure. It supports a maximum voltage monitoring range up to 552 V. This relay employs a single-pole double-throw (SPDT) contact configuration offering dependable switching capabilities.

Designed for DIN Rail mounting, it features compact dimensions - 90 mm in height, 64 mm in width, and 18 mm in length - allowing efficient use of panel space in electrical and automation systems. Its screw terminal type connections secure wiring with robust contact, ideal for industrial environments.

The relay operates on multiple supply voltages: 220 V AC and 460 V AC for main power, and 24 V DC supply voltage for auxiliary circuits, making it versatile for various electrical setups. The power consumption is low at 500 milliwatts, supporting energy-conscious installations.

This monitoring relay conforms to recognized standards including EN61010/IEC and RoHS directives for safety and environmental compliance. The device's switching voltage is rated at 250 V AC, suitable for controlling loads in industrial automation and electrical distribution systems. With a contact current capacity of 10 A, it can handle considerable electrical loads effectively.

Rated for operating temperatures up to 55°C and an IP rating of IP20, IP40, it provides protection against intrusion of solid objects, ensuring durability in industrial and manufacturing environments. Its orange housing meets DIN 43 880 standards, further emphasizing its suitability for DIN Rail integration.

Widely applicable in industrial, automation, and electrical control systems, the Relpol ECPF08 provides reliable phase monitoring, preventing equipment damage caused by phase failures, enhancing system safety and continuity.

The device supports 220 V and 460 V AC supply voltages along with a 24 V DC supply. Provides reliable monitoring of three-phase electrical systems for phase loss and failure. Equipped with screw terminal type for secure electrical connections.

Compact dimensions with 90 mm height, 64 mm width, and 18 mm length allow easy DIN Rail integration. Operates within temperature range up to 55°C ensuring robust industrial use. Power consumption is minimal at 500 mW, promoting energy efficiency.

Switching voltage is rated at 250 V AC, suitable for various industrial applications. IP20 and IP40 ratings protect against solid foreign objects ensuring device durability. Contact rating supports 10 A current, enabling effective load control.

This product is ideal for use in industries requiring precise monitoring of electrical phases, including manufacturing plants, automation control, electrical distribution systems, and HVAC installations. For additional options and related products, browse the Monitoring Relays category at EnvMart.
