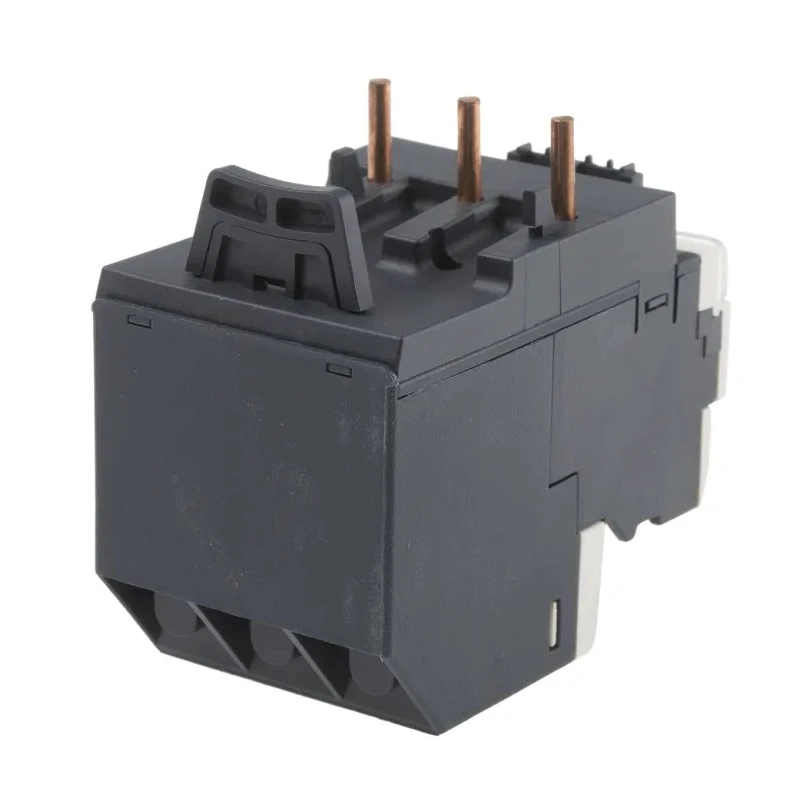

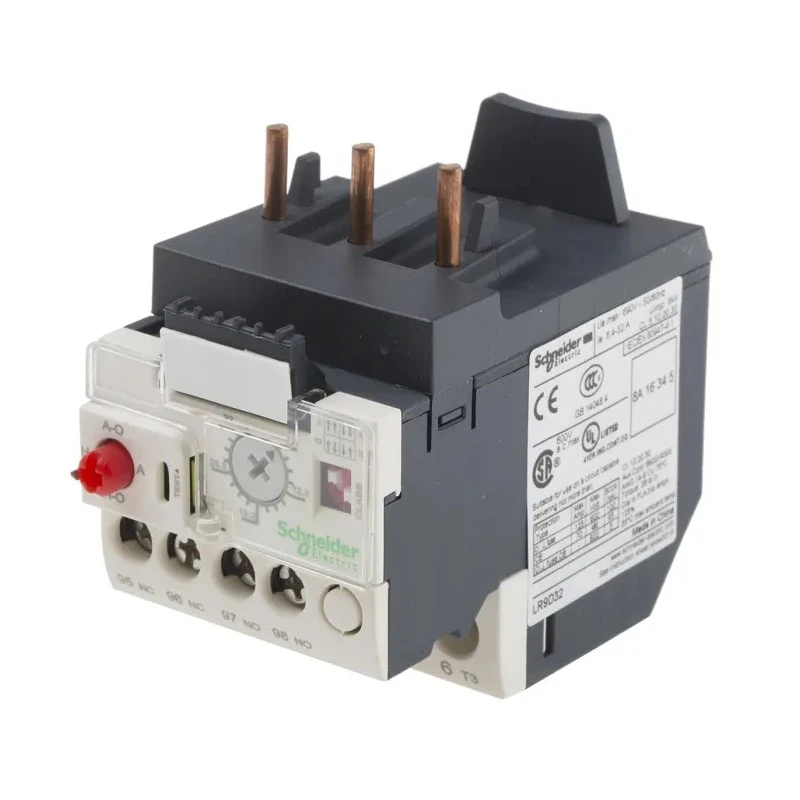

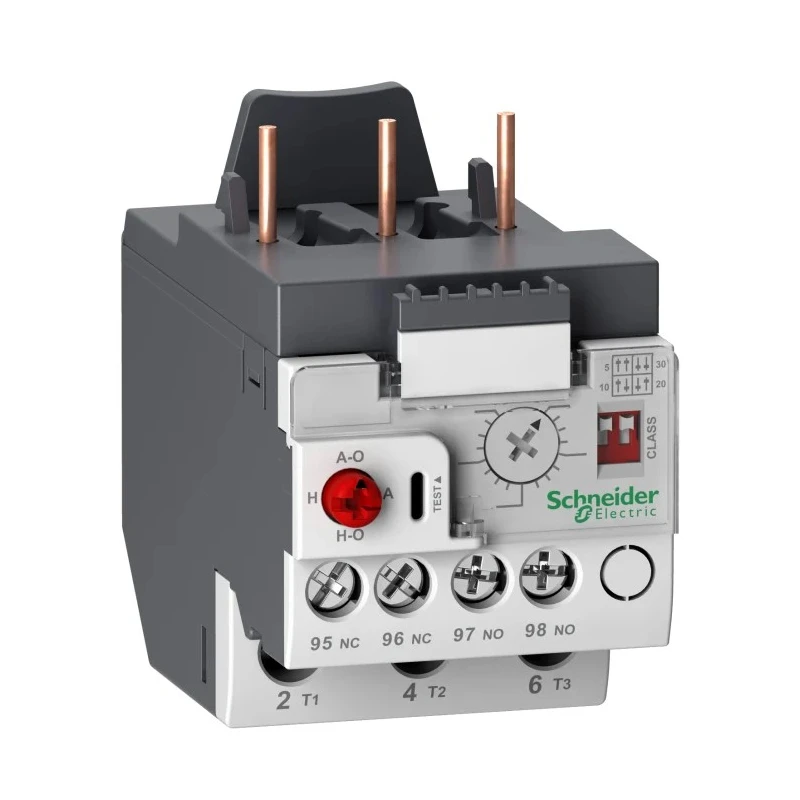

Schneider Electric TeSyS LR Thermal Overload Relay 32A, 6.4A Contact Rating, 300 mW Power, 3P LR9D32

Name: Schneider Electric TeSyS LR Thermal Overload Relay 32A, 6.4A Contact Rating, 300 mW Power, 3P LR9D32
Brand: Schneider Electric
SKU: 143574
Price: 235.31 USD
Availability: InStock



Category Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	45mm
Model	LR9D32
Depth	72.5mm
IP Rating	IP20
Width	79.9mm
Mount Type	Under Contactor Mount
Series	TeSyS LR
Power Rating	300mW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Supply Voltage	690V
Contact Voltage	690V
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	32, 6.4A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3P
Control Voltage	690V
Adjustable Current Range	6.4 → 32 A

Key Features

Compact design suitable for direct contactor mounting.
Adjustable current range from 6.4 to 32 amperes for versatile applications.
Features 1 Normally Open and 1 Normally Closed contact configuration.
Equipped with both automatic and manual reset methods.
IP20 rated front panel for protection against solid foreign objects.
Select trip class among 5, 10, 20, and 30 for customizable performance.
Suitable for industrial applications including pumping, material handling, packaging, and HVAC.
Terminal connections use screw-type for secure wiring.

Product Description

Schneider Electric LR9D32 is a professional-grade TeSyS LR Thermal Overload Relay designed for efficient and reliable overcurrent protection in industrial motor control systems. With a compact form factor and direct mounting capability under contactors, it ensures space-saving installation without compromising performance.

The relay supports an adjustable current range from 6.4A to 32A with a power rating of 300 mW and is configured with 3 poles. It includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, enabling comprehensive motor protection operations. The device offers both automatic and manual reset functions, providing operational flexibility.

IP20 rated on its front panel, the LR9D32 ensures basic protection against solid objects and is suitable for demanding industrial environments. It features a trip class selector with options 5, 10, 20, and 30 to customize trip characteristics according to application requirements.

This thermal overload relay is widely applicable across numerous industrial sectors including pumping stations, material handling, packaging machinery, HVAC systems, and other industrial automation systems. The device supports supply and control voltages up to 690V and comes equipped with screw-type terminals for secure and reliable electrical connections.

The LR9D32 meets multiple international certifications and standards, such as UL 60947-5-1, EN/IEC 60947-5-1, CSA C22.2 Nos., and GB/T standards, ensuring quality compliance and operational safety.

Compact size facilitates under-contactor mounting and easy integration with contactors. Adjustable current range from 6.4 to 32 amperes allows versatile motor protection. 1 NO and 1 NC contact configuration supports diverse electrical circuits.

Automatic and manual reset methods enhance operational convenience. IP20 front panel rating provides protection against dust and particles. Trip class selection allows tuning of thermal response for different motor applications.

Suitable for industrial, HVAC, packaging, and material handling applications. Compliance with multiple international standards for safety and performance. Screw terminal connections ensure secure wiring. Wide operating temperature range of -25°C to 70°C ensures dependable functionality.

Explore more Schneider Electric products and explore various thermal Overload Relays and contactors on EnvMart for industrial automation applications.
