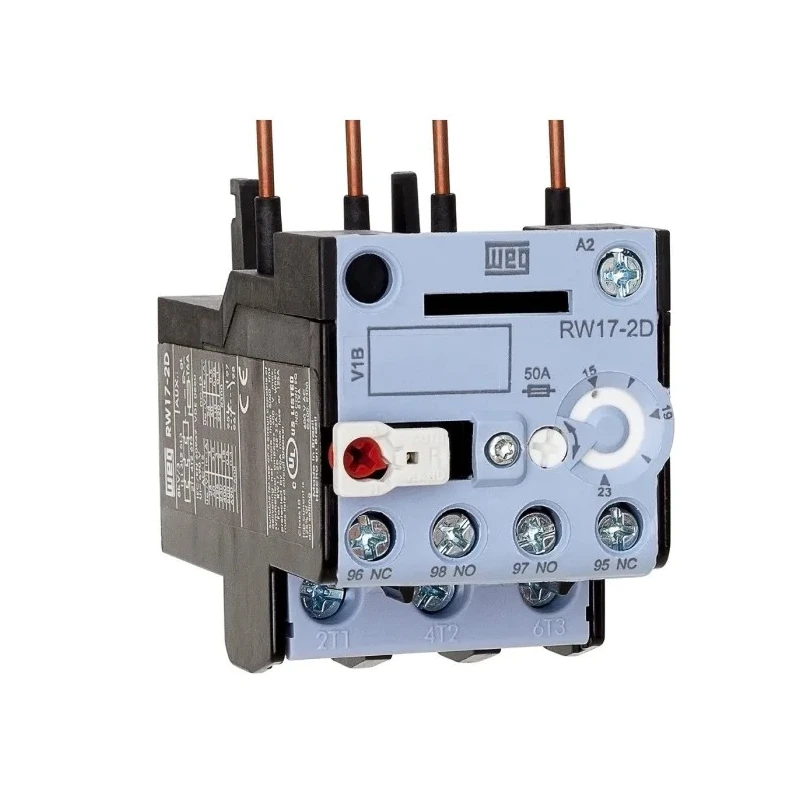

WEG Thermal Overload Relay 3 Pole DIN Rail Mount 1 NO/1 NC, 22-32A Adjustable Current, 1.4W Power RW17
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | WEG |
| Length | 71.5mm |
| Model | RW17 |
| Depth | 82.5mm |
| IP Rating | IP10, IP20 |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | RW17 |
| Power Rating | 1.4W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Supply Voltage | 100, 50V |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 22, 32A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 32A |
| Adjustable Current Range | 22 → 32 A |
Key Features
- Suitable for motor ratings up to 32A with adjustable current range from 22 to 32A.
- Equipped with 1 normally open and 1 normally closed auxiliary contact for versatile control.
- DIN rail mount design offers easy installation in electrical panels.
- Automatic and manual reset methods selectable for operational flexibility.
- Operates reliably within temperature range of -25°C to 60°C.
- Compliance with IEC 60034-30-1, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standards ensures industrial safety.
- Compact dimensions of 71.5mm length, 45mm width, and 82.5mm depth optimizes panel space.
- Rated for contact voltage up to 690V AC with an IP rating of IP10 and IP20 protection levels.
Product Description
WEG RW17 Thermal Overload Relay is engineered for industrial motor protection applications, offering reliable performance for motors with full load currents up to 32A. The device features a 3-pole configuration with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, enabling precise control and signaling capabilities in automation and motor control circuits.
The relay supports an adjustable current range from 22A to 32A, allowing calibration to specific motor ratings, enhancing protection accuracy. Both automatic and manual reset methods are selectable, providing flexibility to operators depending on the application requirements.
Constructed for easy DIN rail mounting, the relay simplifies installation into electrical distribution boards and control panels. It offers robust operation across a broad temperature range of -25°C to 60°C, suitable for diverse industrial environments.
WEG RW17 complies with industry standards IEC 60034-30-1, IEC 60947-1, IEC 60947-2, and IEC 60947-4-1, ensuring compliance with safety and performance norms. The compact build with dimensions 71.5mm length, 45mm width, and 82.5mm depth facilitates efficient panel space utilization.
Adjustable current range between 22 and 32 amperes for precise motor protection. Includes 1 NO and 1 NC auxiliary contact for expanded control options. Automatic and manual reset selectable to suit operational preferences.
Compatible with standard DIN rail mounting systems for convenient installation. Designed to operate reliably in ambient temperatures from -25°C up to 60°C. Rated for a contact voltage of 690V AC with an IP10 and IP20 ingress protection classification.
Compact three-pole relay providing tripping class 10 for sensitive motor fault detection. Phase failure sensitivity enhances motor safety by detecting power anomalies.
This thermal overload relay is ideal for use in industrial automation, motor control centers, manufacturing facilities, and HVAC systems where dependable motor protection is critical. Selecting WEG’s RW17 model supports compliance with stringent electrical standards and enhances system reliability and uptime.
Explore more products in Overload Relays category on EnvMart for comprehensive solutions in electrical and automation control gear.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable current range of this model is from 22A to 32A, allowing for calibration to specific motor ratings.
It operates reliably within a maximum temperature of 60°C.
This model is designed for DIN rail mounting, simplifying installation in electrical panels.
It supports both automatic and manual reset methods, providing flexibility for operational preferences.
The contact voltage rating for the WEG RW17 is up to 690V AC.
The dimensions are 71.5mm in length, 45mm in width, and 82.5mm in depth.
The power rating of this thermal overload relay is 1.4W.
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
This model has an IP rating of IP10 and IP20, indicating its protection levels against dust and moisture.
It complies with IEC 60034-30-1, IEC 60947-1, IEC 60947-2, and IEC 60947-4-1 standards for industrial safety.
The country of origin for this thermal overload relay is Brazil.
The rated full load current for motors protected by this relay is up to 32A.
