WEG 1.6A TeSyS GV Motor Protection Circuit Breaker 690V 3 Poles Thermal Magnetic GV2LE06

Free Delivery in India | Lowest Global Shipping Charges

WEG 1.6A TeSyS GV Motor Protection Circuit Breaker 690V 3 Poles Thermal Magnetic GV2LE06



Category Motor Protection Circuit Breaker Brand WEG Condition New

Specifications

Country of Origin	France
Brand	WEG
Model	GV2LE06
IP Rating	IP20
Overall Length	89mm
Current Rating	1.6A
Series	TeSyS GV
Overall Width	44.5mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Sensing type	Thermal Magnetic
Supply Voltage	690V
Number of Poles	3
Overall Depth	78.5mm
Better World Claim	Designed for Disassembly
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker
WEG 1.6A MPW18i Motor Protection Circuit Breaker, 690V, 70 °C, -20 °CBrand	WEG

Key Features

Features thermal magnetic sensing for reliable motor protection.
Compact size with dimensions 89mm length, 44.5mm width, and 78.5mm depth.
IP20 rated for safe operation in indoor industrial environments.
Supports operating temperatures from -20°C up to 60°C.
Includes 3 poles with a magnetic tripping level at 13 times the nominal current.
Provides high breaking capacity of 100kA ensuring robust fault interruption.
Screw clamp terminal connections enable secure and easy wiring.
Designed for start-stop control via a rocker lever rated for 100,000 AC-3 cycles.

Product Description

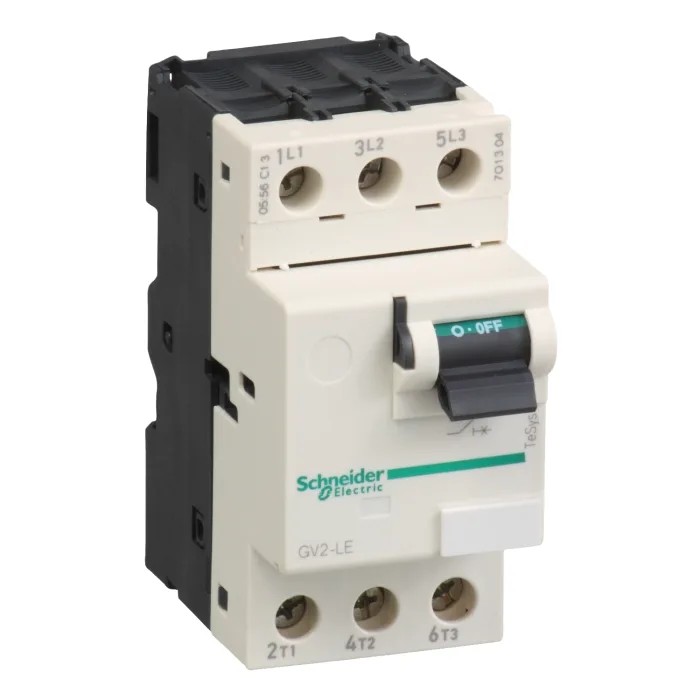

Schneider Electric GV2LE06 is a 3-pole Motor Protection Circuit Breaker designed for 3-phase motor control applications with a current rating of 1.6A and supply voltage of 690V. The device uses thermal magnetic protection, providing precise overload and short circuit protection to motors up to 0.55kW at 400V. Its compact dimensions (89mm length, 44.5mm width, 78.5mm depth) allow for flexible installation in control panels.

The GV2LE06 features an IP20 rating for protection against solid objects, suitable for indoor industrial environments. It operates reliably in temperatures ranging from -20°C to 60°C, making it adaptable to various operating conditions.

This motor circuit breaker includes screw clamp terminals ensuring secure electrical connections, and a rocker lever for manual start-stop control rated for 100,000 AC-3 mechanical operations. The magnetic tripping setting at 13 times the nominal current protects against high fault currents with a breaking capacity up to 100kA.

Certified to international standards such as IEC 60947-2, UL, CSA, and ATEX, the device meets rigorous safety and performance benchmarks. It is Green Premium certified meeting RoHS and REACH requirements and designed for easy disassembly to support recycling and sustainability efforts.

Industrial applications include motor protection in manufacturing plants, HVAC systems, automation controls, and water treatment facilities. The circuit breaker should be used in conjunction with thermal overload relays like the LRD06 for comprehensive motor protection.

Features thermal magnetic sensing for reliable motor protection. Compact size with dimensions 89mm length, 44.5mm width, and 78.5mm depth. IP20 rated for safe operation in indoor industrial environments. Supports operating temperatures from -20°C up to 60°C.

Includes 3 poles with a magnetic tripping level at 13 times the nominal current. Provides high breaking capacity of 100kA ensuring robust fault interruption. Screw clamp terminal connections enable secure and easy wiring.

Designed for start-stop control via a rocker lever rated for 100,000 AC-3 cycles. Compliant with multiple international standards including IEC, UL, CSA, and RoHS. Designed for disassembly supporting sustainability initiatives.

Explore the extensive range of motor protection and industrial control devices offered by Schneider Electric on EnvMart for optimized equipment safety and efficiency.
