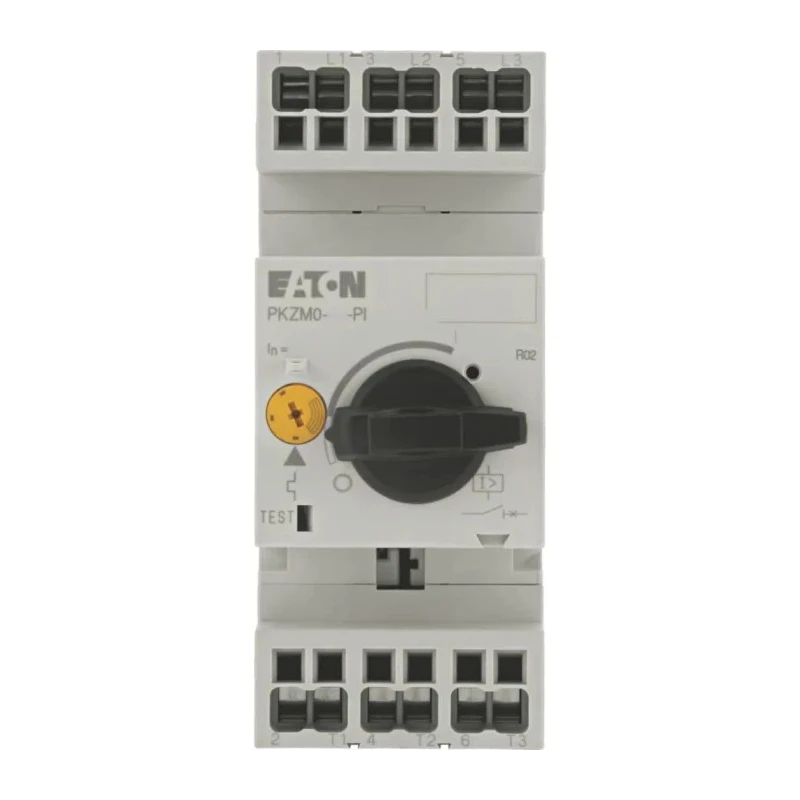

Eaton Motor Protection Circuit Breaker 25A, 690V, IP20, -25°C to 55°C, Transformer Protection 199176 PKZM0-25-T-PI

Eaton 199176 PKZM0-25-T-PI Motor Protection Circuit Breaker is a robust electrical protection device designed to safeguard transformers and electrical motors, particularly those with efficiency class IE3. This circuit breaker supports a current rating of 25A and operates at a supply voltage of 690V. Engineered with push-in terminals, it facilitates quick and reliable installation in industrial and commercial electrical systems.

Measuring 75mm in length, 45mm in width, and 75mm in depth, the compact unit features an IP20 rating, providing protection against solid foreign objects larger than 12mm but not water ingress, making it ideal for indoor applications in clean environments. It is suited for reliable operation within a temperature range from -25°C minimum to a maximum of 55°C, ensuring durability across various climates.

This device contains 3 poles and is part of Eaton's PKZM 0 series, making it compatible with IEC/EN 60715 top-hat rail mounting systems for simple integration into control panels. It offers excellent transformer protection, particularly against high inrush currents, enhancing motor longevity and operational safety. The breaker complies with RoHS environmental standards, supporting sustainable industry practices.

Typical applications include protection of transformers subject to high inrush current situations and optimized control for IE3 efficiency class motors in electrical automation and motor protection systems. Its compact form and advanced features make it suitable for industrial, manufacturing, commercial, and electrical automation use cases.

Provides transformer protection and is suitable for motors with efficiency class IE3. Features push-in terminals for easy and secure connection. Compact design with dimensions 75mm length, 45mm width, and 75mm depth. Operates reliably within temperature range of -25°C to 55°C.

Rated IP20 for protection against foreign objects and limited dust ingress. Includes 3 poles for effective circuit protection. Can be snapped onto IEC/EN 60715 top-hat rail for straightforward installation. Complies with RoHS standards ensuring environmental safety.

Designed to protect transformers against high inrush currents ensuring motor and equipment safety. Explore more options in the Motor Protection Circuit Breakers category at EnvMart for industrial and electrical applications.
