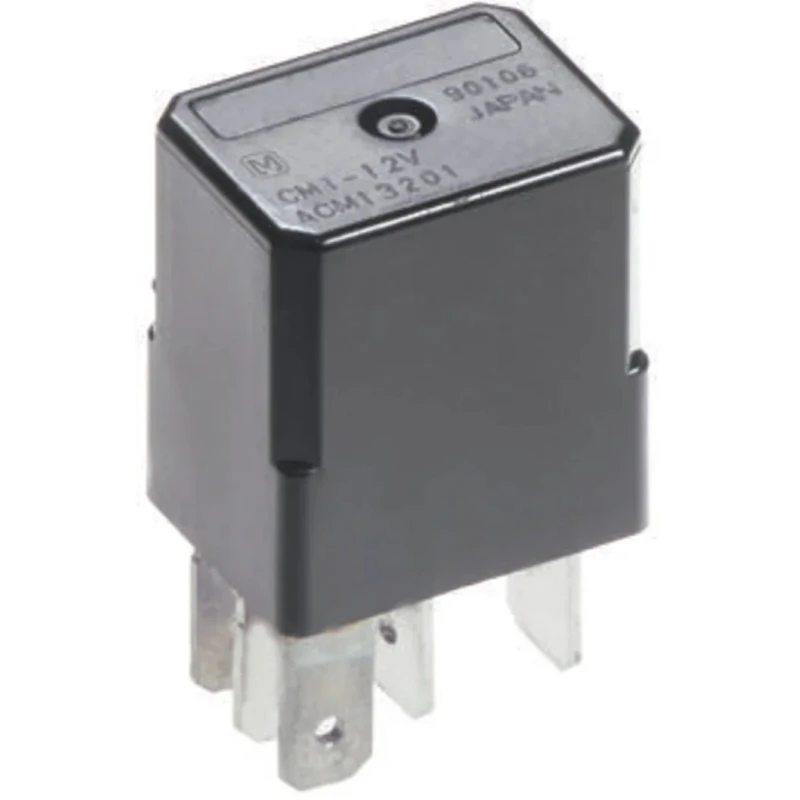

Panasonic Automotive Relay 12V DC Coil Voltage 1A Switching Current SPDT CM1-R-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 20mm |
| Model | CM1-R-12V |
| Depth | 15mm |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Small size | L20 x W15 x H22 mm |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 96Ω |
| Coil Power | 1.5W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Operates reliably within a temperature range of -40°C to 85°C.
- Features silver alloy contacts to ensure long-lasting conductivity.
- Compact dimensions of 20mm length, 15mm depth, and 22mm height for easy installation.
- Equipped with quick connect terminals and built-in resistor for enhanced performance.
- Designed for automotive systems including fan motors, heaters, air compressors, and engine applications.
- High thermal resistance up to 125°C suitable for demanding environments.
- Coil power consumption is 1.5W with coil resistance of 96Ω.
- One pole SPDT (Single Pole Double Throw) contact configuration for versatile switching.
Product Description
Panasonic CM1-R-12V Automotive Relay is a compact, plug-in mount relay designed for automotive electrical systems. It operates on a 12V DC coil voltage with a coil power of 1.5W and coil resistance of 96Ω. The relay features a Single Pole Double Throw (SPDT) contact configuration capable of switching a current of 1A.
Its compact size (L20 x W15 x H22 mm) and micro-ISO terminal design facilitate easy integration in various automotive applications such as fan motors, heaters, air compressors, and engine electronic subsystems like EPS, ABS, blower fans, and defoggers. The relay's silver alloy contacts provide reliable conductivity with high thermal resistance up to 125°C.
The device is built to function within a wide operating temperature range from -40°C to 85°C, with an isolation voltage of 500Vrms between coil and contact to ensure safety and operational reliability in tough automotive environments. The quick connect terminal type further simplifies installation and replacement.
Operates reliably within a temperature range of -40°C to 85°C. Features silver alloy contacts ensuring long-lasting electrical performance. Compact dimensions of 20mm length, 15mm depth, and 22mm height for installation flexibility.
Quick connect terminals with built-in resistor for enhanced performance and durability. High thermal resistance rating of 125°C suitable for demanding automotive conditions. Single Pole Double Throw (SPDT) switching with 1A current rating.
Coil power consumption of 1.5W and coil resistance of 96Ω. 500Vrms isolation between coil and contacts ensuring electrical safety. Suitable for applications in fan motors, heaters, air compressors, and automotive engines.
Manufactured in Japan for assured quality and reliability.
This Panasonic automotive relay is ideal for use in industrial, manufacturing, and automotive electrical control systems requiring a durable, reliable relay solution compliant with international ISO terminal arrangements.
Explore the Electronics & Electricals category at EnvMart for a wide range of industrial relays and contactors engineered to meet professional and commercial standards.
Explore more products in our Automotive Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 12V DC coil voltage.
This model has a switching current capacity of 1A.
It operates reliably within a temperature range of -40°C to 85°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay has compact dimensions of 20mm in length, 15mm in depth, and 22mm in height.
The coil power consumption is 1.5W, with a coil resistance of 96Ω.
There is an isolation voltage of 500Vrms between the coil and contacts for safety.
The relay features silver alloy contacts to ensure reliable conductivity.
It is equipped with quick connect terminals for easy installation.
It is designed for automotive systems including fan motors, heaters, air compressors, and engine applications.
The maximum operating temperature is 85°C, with high thermal resistance rated up to 125°C.
This relay is manufactured in Japan, ensuring quality and reliability.
