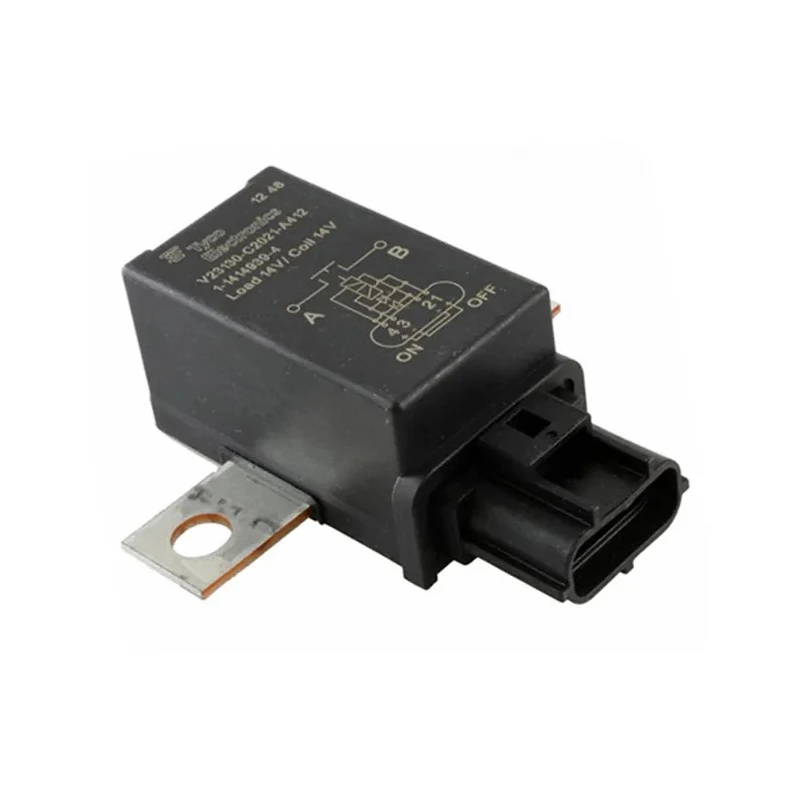

TE Connectivity Flange Automotive Relay, 12V DC Coil Voltage, 7W Coil Power, 260A Switching Current, SPST 1-1414939-4

TE Connectivity 1-1414939-4 flange automotive relay designed for 12V DC coil voltage applications with a coil power of 7W, providing robust switching capacity and reliability for automotive electrical systems.

This relay features a single pole, single throw (SPST) contact configuration rated for a high switching current of 260A, ideal for battery disconnect applications and preheating systems where high current capability is essential.

The BDS-A series relay includes an electrically settable and resettable ON/OFF bistable device suited for voltage levels up to 42V and offers enhanced safety with dustproof IP54 protection.

Constructed with silver alloy contacts and mounted via a flange, it ensures durable performance and secure installation within automotive environments. Operating temperature ranges from -40°C to 120°C, making it suitable for harsh conditions encountered in vehicles and industrial equipment.

The isolation between coil and contact is rated at 500 Vrms, assuring adequate electrical isolation for safe operation. Dimensions of 39mm (length) x 86mm (depth) x 33mm (height) allow for compact mounting within constrained spaces.

Typical industrial and automotive applications include battery disconnection to prevent fires caused by short circuits, energy management, and preheating systems in vehicles, supporting both safety and efficiency.

This automotive relay supports a high switching current of 260A suitable for demanding electrical loads. It includes a single pole, single throw (SPST) contact configuration for precise control. The relay is mounted via a flange type mount for secure installation.

Constructed with silver alloy contact material ensuring reliable conductivity and durability. Operating temperature ranges from -40°C to 120°C for versatile environmental tolerance. This product has a dustproof IP54 rating for protection against dust ingress.

Isolation between coil and contact is rated at 500 Vrms providing electrical safety. Its compact dimensions measure 39mm length, 86mm depth, and 33mm height for easy integration. The device is a part of the Battery Disconnect Switch (BDS-A) series and offers bistable ON/OFF switching.
