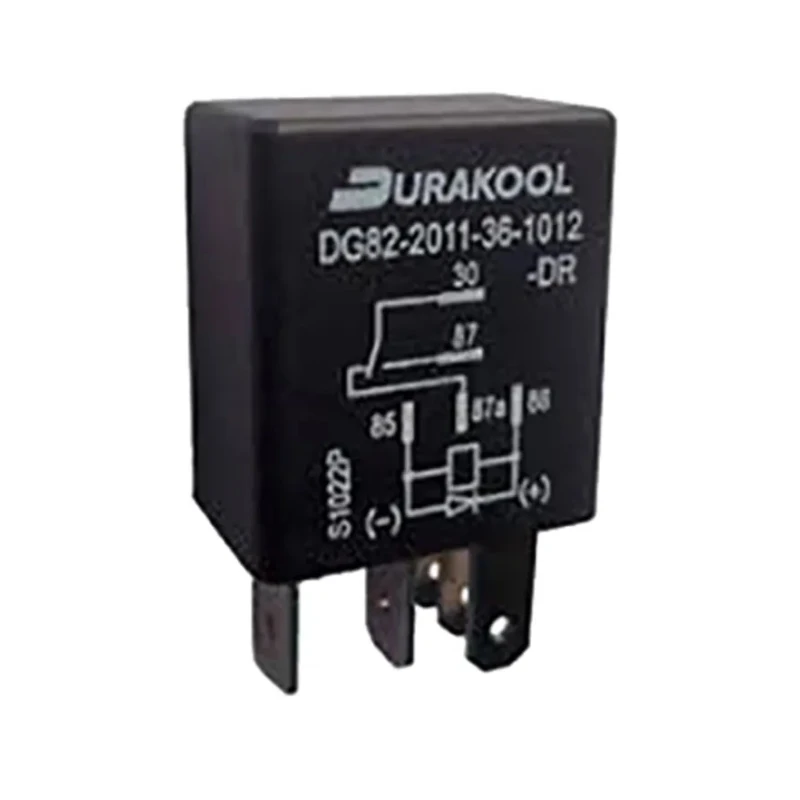

Durakool PCB Automotive Relay 12V DC Coil Voltage 90A Switching Current SPDT DG82-7011-76-1012-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 26mm |
| Length | 23.7mm |
| Model | DG82-7011-76-1012-R |
| Depth | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG82 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 97Ω |
| Coil Power | 1.81W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- General purpose miniature automotive relay suitable for PCB mounting.
- High resistance to inrush current ensures durability under demanding conditions.
- High continuous DC current capacity for reliable motor control.
- Industry standard size and footprint for compatibility with automotive systems.
- Quick connect terminal type provides ease of installation.
- Operates reliably between -40°C and 125°C temperature ranges.
- Silver tin oxide with indium oxide contact material for enhanced conductivity and longevity.
- Isolation voltage of 500 Vrms between coil and contacts for safety.
Product Description
Durakool DG82-7011-76-1012-R PCB Automotive Relay is a high-quality general purpose miniature relay designed for automotive and industrial electronic applications. It operates at a coil voltage of 12V DC and supports a high switching current of up to 90A with SPDT (Single Pole Double Throw) contact configuration.
The relay features high resistance to inrush current, enabling superior performance in motor control and other DC load switching applications. Its industry standard size and footprint allow easy integration into automotive electronic systems. The device is designed for PCB mounting with quick connect terminals for fast and secure connections.
This automotive relay is capable of functioning reliably in harsh environments with operating temperature ranges from -40°C to 125°C. The contact material is made from silver tin oxide combined with indium oxide, contributing to high conductivity and long service life.

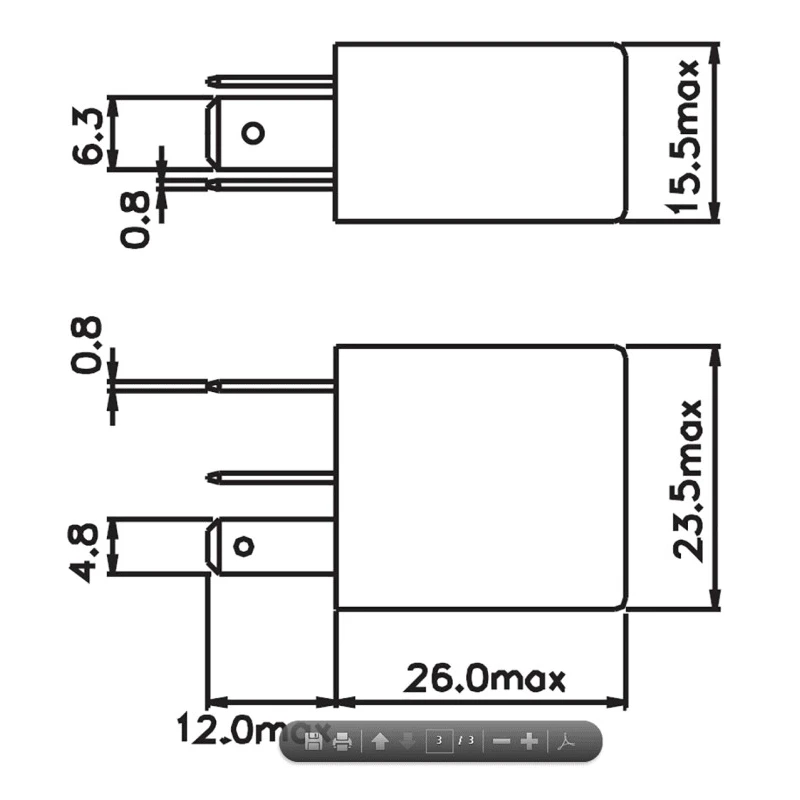

Safety is ensured with a coil-to-contact isolation voltage rating of 500 Vrms. The compact dimensions are 23.7mm in length, 26mm in height, and 15.7mm in depth, making it suitable for space-constrained assemblies.
General purpose miniature automotive relay suitable for PCB mounting. High resistance to inrush current ensures durability under demanding conditions. High continuous DC current capacity for reliable motor control. Industry standard size and footprint for compatibility with automotive systems.
Quick connect terminal type provides ease of installation. Operates reliably between -40°C and 125°C temperature ranges. Silver tin oxide with indium oxide contact material for enhanced conductivity and longevity. Isolation voltage of 500 Vrms between coil and contacts for safety.
This relay is ideal for use in industrial automotive electrical control systems, laboratory equipment, manufacturing machinery, and HVAC control circuits. Its robust design and compliance with industry standards ensure dependable performance in various commercial and industrial environments.
Explore the full range of Automotive Relays at EnvMart to find solutions perfectly tuned to your requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 90A, making it suitable for high current applications.
This relay operates at a coil voltage of 12V DC.
The relay has dimensions of 23.7mm in length, 26mm in height, and 15.7mm in depth.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay operates reliably between -40°C and 125°C.
This model is designed for PCB mounting, allowing for easy integration into electronic systems.
The isolation voltage between the coil and contacts is rated at 500 Vrms for safety.
The contact material is a combination of silver tin oxide and indium oxide, enhancing conductivity and longevity.
The coil resistance for this model is 97Ω.
It features quick connect terminals for ease of installation.
This relay is suitable for automotive electrical control systems, laboratory equipment, manufacturing machinery, and HVAC control circuits.
The coil power consumption is 1.81W.
