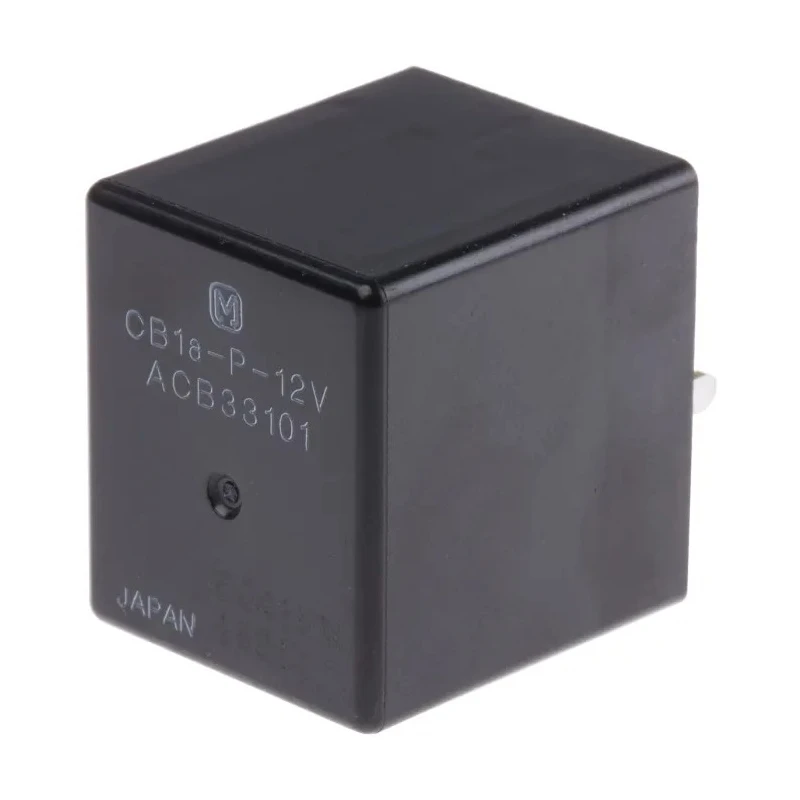

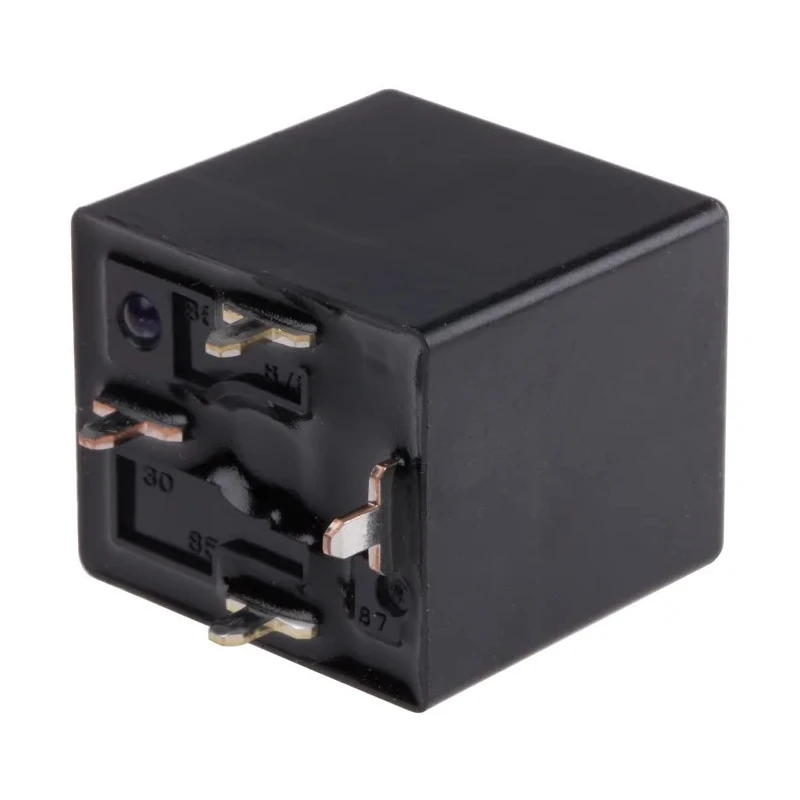

Panasonic PCB Automotive Relay 12V DC Coil Voltage 40A Switching Current SPST CB1A-P-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25mm |
| Length | 26mm |
| Model | CB1A-P-12V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Gold |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 103Ω |
| Coil Power | 1.4W |
| Isolation Coil To Contact | 500Vrms |
| RELAY,AUTOMOTIVE,1 FORM A,PCB,DC12Brand | Panasonic |
Key Features
- Compact PCB mount automotive relay suitable for high power applications.
- 12V DC coil voltage with 1.4W coil power ensures efficient operation.
- Gold contact material provides reliable conductivity and corrosion resistance.
- Operating temperature range from -40°C to 85°C for robust environmental performance.
- Isolation coil to contact voltage rated at 500Vrms for electrical safety.
- Mini-ISO terminal arrangement with PCB terminal type for easy integration.
- High switching capacity with 40A maximum switching current capability.
- Built for automotive, construction equipment and agricultural equipment applications.
Product Description
Panasonic CB1A-P-12V PCB Automotive Relay is designed for high power automotive and industrial applications requiring reliable switching performance in a compact form factor. Featuring a 12V DC coil voltage and capable of switching currents up to 40A, this relay supports SPST contact configurations with gold contacts for excellent conductivity and corrosion resistance.
Its compact PCB mount design with mini-ISO terminal arrangement allows easy integration into electronic control systems used in automobiles, construction machinery, and agricultural equipment. The relay can operate reliably across a broad temperature range from -40°C to 85°C, benefiting harsh automotive and industrial environments.
The coil power consumption is 1.4W, and the coil resistance is 103Ω, ensuring efficient power use. The relay offers electrical isolation of 500Vrms between coil and contacts, enhancing circuit safety and reducing interference risks.
Measuring 26mm in length, 25mm in height, and 22mm in depth, this relay enables space-saving designs. Its robust build quality, combined with features such as high thermal resistance and low temperature rise, makes it suitable for demanding industrial and automotive switching needs.
Typical application use cases include automotive control systems, industrial machinery switching, and heavy equipment electrical systems where compactness and high current capacity are critical.
Compact PCB mount automotive relay suitable for high power applications. 12V DC coil voltage with 1.4W coil power ensures efficient operation. Gold contact material provides reliable conductivity and corrosion resistance.
Operating temperature range from -40°C to 85°C for robust environmental performance. Isolation coil to contact voltage rated at 500Vrms for electrical safety. Mini-ISO terminal arrangement with PCB terminal type for easy integration.
Dimensions: Length 26mm, Height 25mm, Depth 22mm for space-saving mounting. High switching capacity with 40A maximum switching current capability. Built for automotive, construction equipment and agricultural equipment applications.
Japanese manufacture ensuring quality and reliability. Explore more automotive and industrial relays in EnvMart's Electronics & Electricals category for reliable and proven switching solutions.
Explore more products in our Automotive Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 40A, making it suitable for high power applications.
This relay operates with a coil voltage of 12V DC.
The relay can operate reliably within a temperature range of -40°C to 85°C.
It features a Single Pole Single Throw (SPST) contact configuration.
The coil power consumption is 1.4W, ensuring efficient operation.
The relay measures 26mm in length, 25mm in height, and 22mm in depth.
The isolation voltage rating between the coil and contacts is 500Vrms, enhancing electrical safety.
It uses a mini-ISO terminal arrangement with a PCB terminal type for easy integration.
The contacts are made from gold, providing reliable conductivity and corrosion resistance.
This relay is suitable for automotive control systems, industrial machinery switching, and heavy equipment electrical systems.
The coil resistance is 103Ω, which is important for determining the current draw.
This relay is manufactured in Japan, ensuring quality and reliability.
