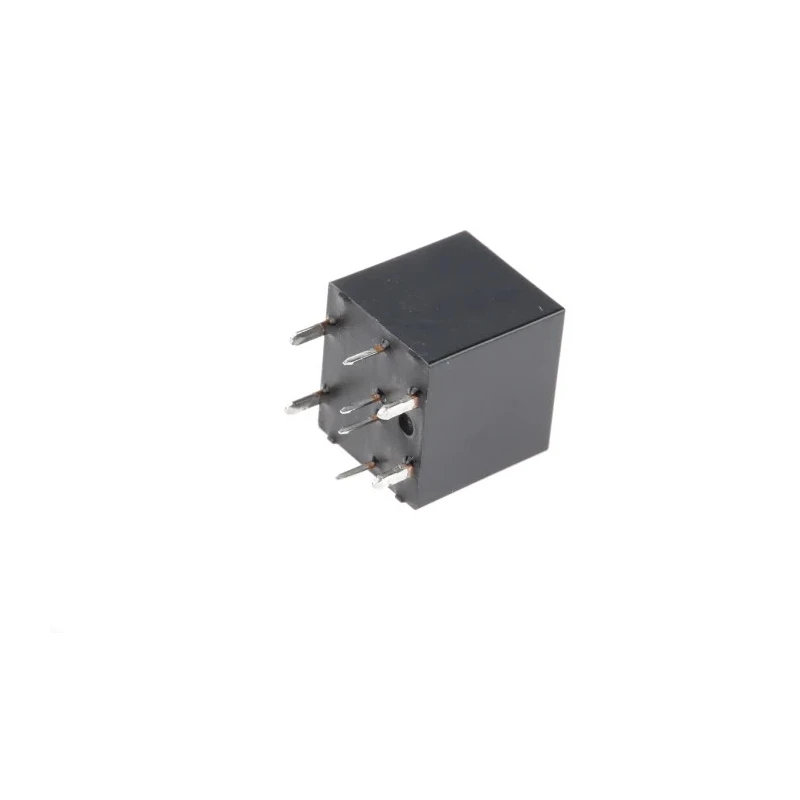

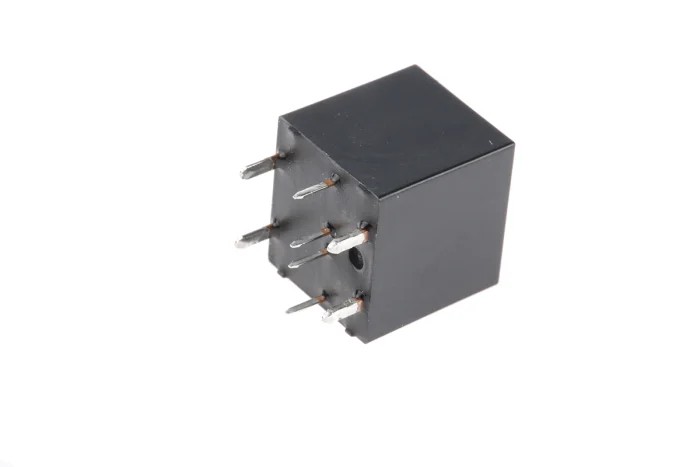

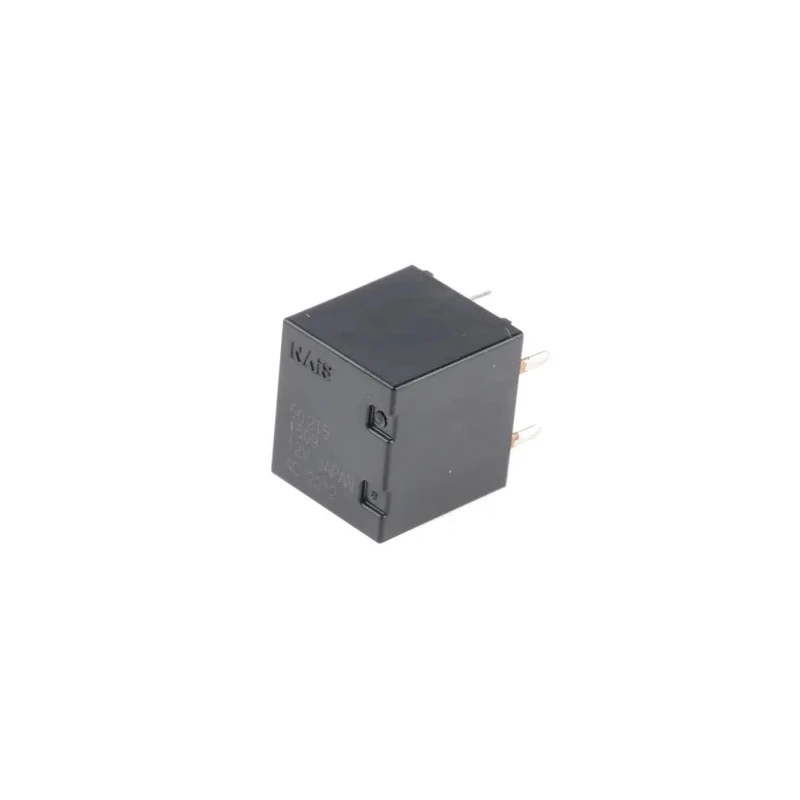

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current DPST ACJ2212
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 12.2mm |
| Model | ACJ2212 |
| Depth | 13.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Applications | Powered windows, automatic door locks, powered seats |
| Number of Poles | 2 |
| Coil Resistance | 225Ω |
| Coil Power | 640mW |
| Isolation Coil To Contact | 500Vrms |
| Panasonic PCB Mount Automotive Relay, 12V dc Coil, SPDTBrand | Panasonic |
Key Features
- Extremely compact design for miniaturized relay units.
- Nominal coil power of 640 mW with 225Ω coil resistance.
- Silver alloy contacts ensuring reliable conduction.
- Maximum switching current capacity of 20A for 1 hour and 30A for 2 minutes.
- DPST contact configuration with 2 poles and through-hole terminal type.
- Wide operating temperature range from -40°C to 85°C.
- PCB mount type suitable for automotive electrical systems.
- Isolation between coil and contact rated at 500 Vrms.
Product Description
Panasonic ACJ2212 is a super miniature PCB automotive relay featuring a 12V DC coil voltage and a 20A switching current capacity. The relay adopts a DPST (Double Pole Single Throw) contact configuration with two poles and is engineered for compactness and efficiency in automotive systems.
Constructed with silver alloy contacts, this relay ensures optimal conductivity and durability. The coil power is nominally rated at 640 mW with a coil resistance of 225 ohms, facilitating reliable operation within various automotive electrical circuits.
It has a maximum current capacity of 20A for continuous operation up to one hour and can withstand up to 30A for short durations of two minutes. The relay uses through-hole terminal type and is designed specifically for PCB mounting.
Designed to operate under a wide temperature range from -40°C to 85°C, the relay offers robust performance in challenging automotive environments. The isolation voltage between the coil and contacts is rated at 500 Vrms ensuring electrical safety and noise reduction.
Physical dimensions are compact with a length of 12.2mm, a height of 13.5mm, and a depth of 13.7mm, making it ideal for applications where space saving is important. Extremely compact design for miniaturized relay units.
Nominal coil power of 640 mW with 225Ω resistance. Silver alloy contact material for reliable conduction. Maximum switching current of 20A continuous, 30A for short durations. DPST contact configuration with 2 poles. Through-hole terminal type for PCB mounting.
Operating temperature range from -40°C to 85°C. Coil to contact isolation rated at 500 Vrms. Compact dimensions: 12.2mm x 13.5mm x 13.7mm. Typical automotive applications such as powered windows, door locks, and seats.
This Panasonic automotive relay is ideal for use in automotive electrical systems, including power window controls, electric door locks, powered mirrors, sunroofs, seats, lift gates, and smart junction box related products in vehicles. It helps achieve electrical control miniaturization while ensuring environmental protection through cadmium-free contacts and lead-free solder.
Explore more Panasonic Automotive Relays and related electrical components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current capacity of this relay is 20A for continuous operation and 30A for short durations of up to two minutes.
This model operates with a coil voltage of 12V DC.
The relay features a DPST (Double Pole Single Throw) contact configuration with two poles.
The nominal coil power is rated at 640 mW with a coil resistance of 225 ohms.
The dimensions of this relay are 12.2mm in length, 13.5mm in height, and 13.7mm in depth.
It operates within a wide temperature range from -40°C to 85°C.
This model uses a through-hole terminal type for PCB mounting.
The contacts are made of silver alloy, ensuring reliable conduction.
It is typically used in automotive applications such as powered windows, automatic door locks, and powered seats.
The isolation between the coil and contact is rated at 500 Vrms.
The relay is manufactured in Japan.
This relay belongs to the ACJ series from Panasonic.
