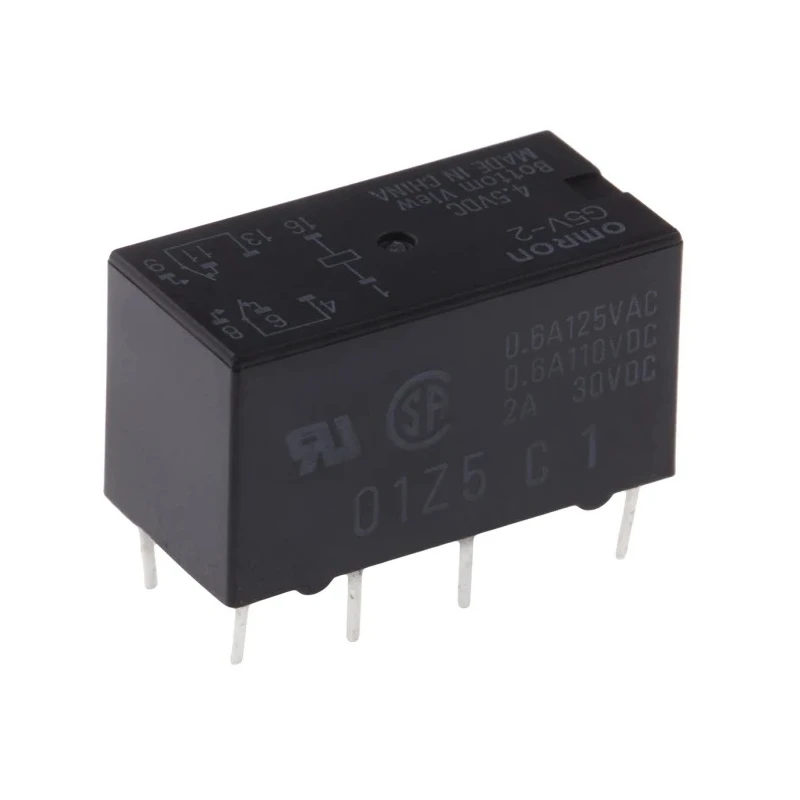

Omron PCB Signal Relay 4.5V dc Coil 2A DPDT G5V-2 4.5DC

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Signal Relay 4.5V dc Coil 2A DPDT G5V-2 4.5DC

Name: Omron PCB Signal Relay 4.5V dc Coil 2A DPDT G5V-2 4.5DC
Brand: Omron
SKU: 430568
Price: 3.95 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	11mm
Length	20.2mm
Model	G5V-2 4.5DC
Width	10mm
Mount Type	PCB
Contact Material	Gold Plated
Series	MT
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Switching Current	2A
Terminal type	Solder
Standards/Approvals	RoHS
Coil Resistance	4000Ω
Coil Voltage	4.5V dc
Switching DC Voltage	125V dc
Switching AC Voltage	125V ac
Coil Power	580mW

Key Features

Fully sealed relay suitable for immersion cleaning.
Conforms to BT Type 47 requirements and BT specification 4597.
Ideal for signal switching applications in electronics and electrical systems.
Gold plated contacts ensure reliable conductivity and corrosion resistance.

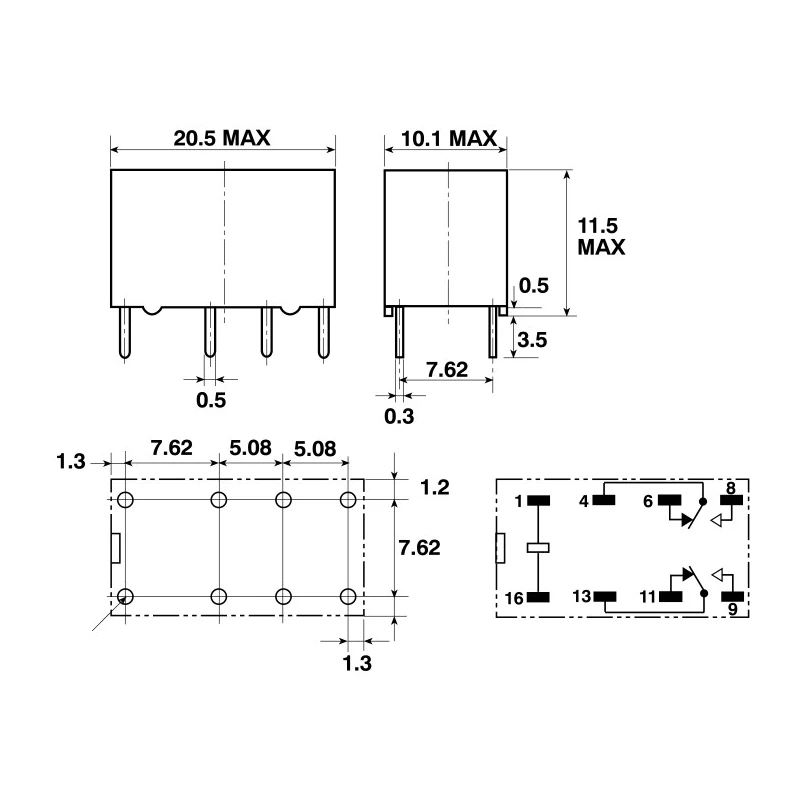

Compact design with dimensions 20.2mm length, 11mm height, and 10mm width.
Operates within temperature range -25°C to 70°C.
Coil power consumption of 580mW with coil resistance of 4000Ω.
Supports switching voltages up to 125V AC and DC.

Product Description

Omron G5V-2 4.5DC PCB Signal Relay is a high-quality, fully sealed signal relay designed for immersion cleaning and ideal for sensitive signal switching applications in industrial and electronic control systems.

This relay features a 4.5V DC coil voltage and is capable of switching a current of 2 amperes with a double-pole double-throw (DPDT) contact configuration. The gold-plated contacts ensure excellent conductivity and durability even under demanding conditions.

Its compact size of 20.2mm in length, 11mm in height, and 10mm in width makes it suitable for space-constrained PCB layouts. The relay operates reliably within an ambient temperature range from -25°C to 70°C, making it suitable for diverse industrial environments.

The coil power rating is 580mW with a coil resistance of 4000 ohms, optimized for low power consumption. It supports switching voltages up to 125V AC and 125V DC, suitable for a wide range of control signals and loads.

Its solder terminal type and PCB mounting style simplify integration into electronic assemblies. The product complies with RoHS environmental standards and carries approvals from UL and CSA while conforming to FCC part 68.

Fully sealed for immersion cleaning. Conforms to BT Type 47 requirements and specification 4597. Gold plated contact material for durability and reliability. Compact and robust PCB mount design. Wide operating temperature range from -25°C to 70°C.

Low coil power consumption of 580mW. Supports switching of AC and DC voltages up to 125V. Suitable for industrial, laboratory, and automation applications.

This Omron signal relay is used extensively in industrial automation, electrical control panels, telecommunications equipment, and manufacturing systems where reliable and accurate signal switching is critical. Its compact size, robust features, and certifications make it a preferred choice for professionals requiring dependable performance on PCBs.
