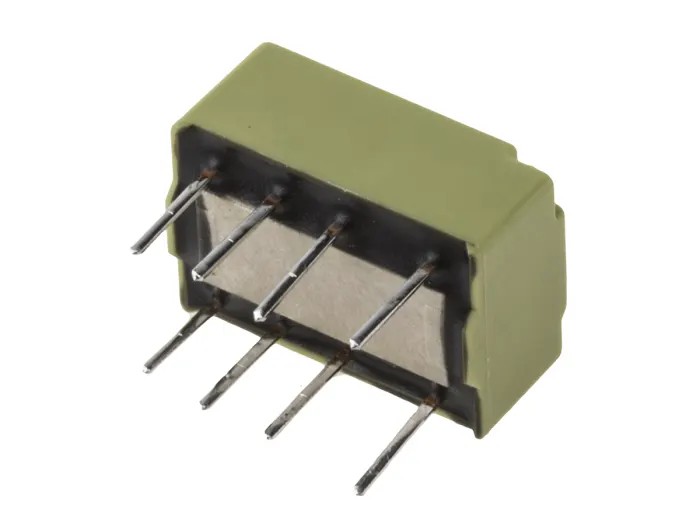

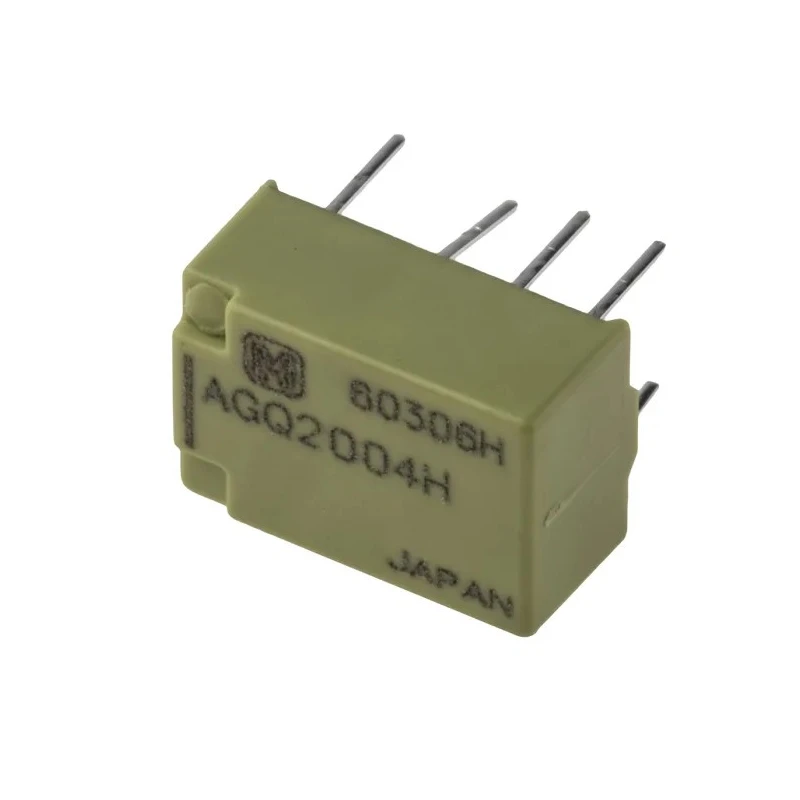

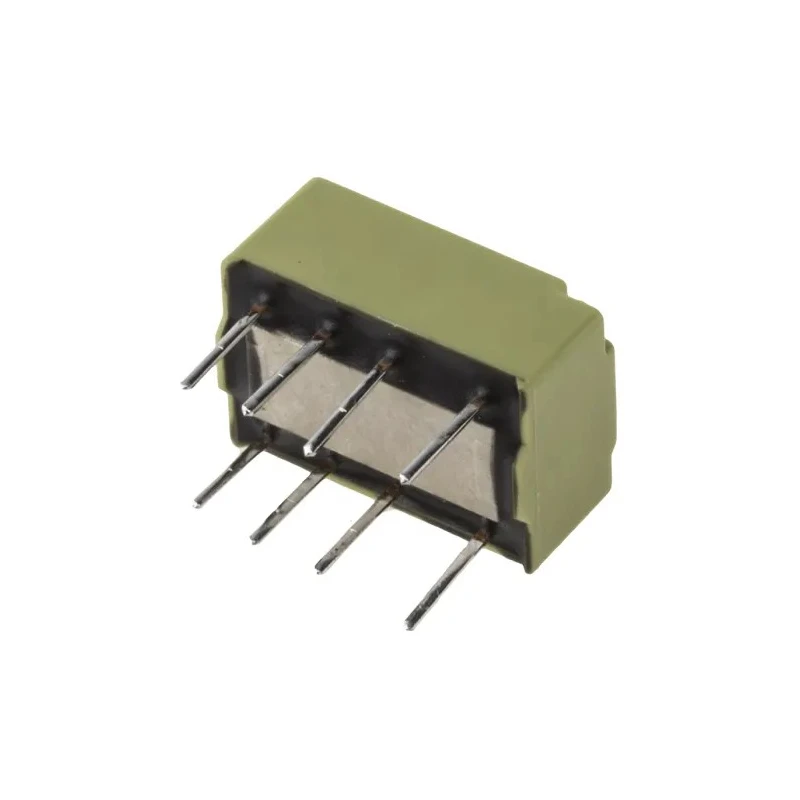

Panasonic Signal Relay, PCB Mount, 4.5V DC Coil, 1A Switching Current, DPDT Contact Configuration AGQ2004H

Panasonic AGQ2004H signal relay is a miniature relay featuring a 4.5V DC coil and a DPDT (Double Pole Double Throw) contact configuration engineered for PCB mounting. With a switching current of 1A, it is ideal for applications that require precise and reliable switching such as transmission systems, telephony, measuring instruments, and audio-visual equipment.

This relay is part of the FTR-B4 series, designed to deliver high performance in a very small form factor, suitable for high-density circuit board layout. It supports switching voltages of up to 125V AC and 110V DC, offering versatility across a range of electrical control devices.

The coil has a resistance of 145Ω and consumes 140mW power, making it energy efficient. The contact materials are gold plated silver aluminium, which ensures low contact resistance and excellent conductivity, enhancing signal integrity.

It operates reliably in extreme temperature ranges from -40°C to 85°C, complying with RoHS standards for environmental safety. The physical dimensions are compact at 10.9mm in length, 7.2mm width, and 5.2mm height, with PCB terminal type connectors for simple and secure mounting.

The relay’s compact design supports high-density PCB installations. It provides stable switching performance with low coil power consumption. Suitable for various industrial, laboratory, and commercial electronics applications.

RoHS compliant ensuring environmental and safety standards. Gold plated contact materials increase durability and electrical reliability.

This Panasonic Signal Relay is a dependable component for enhancing signal control in multiple electronic applications including telecommunications and measurement devices. It is manufactured in Japan, ensuring high build quality and reliability.
