Omron PCB Signal Relay 48V DC Coil 1A DPDT G5V-2-H1 48DC

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Signal Relay 48V DC Coil 1A DPDT G5V-2-H1 48DC

Name: Omron PCB Signal Relay 48V DC Coil 1A DPDT G5V-2-H1 48DC
Brand: Omron
SKU: 427031
Price: 5.74 USD
Availability: InStock



Category Signal Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	11.5mm
Length	20.5mm
Model	G5V-2-H1 48DC
Width	10mm
Mount Type	PCB
Contact Material	Gold Plated
Series	Cradle N
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Switching Current	1A
Terminal type	Solder
Standards/Approvals	RoHS
Coil Resistance	7600Ω
Coil Voltage	48V dc
Switching DC Voltage	125V dc
Switching AC Voltage	125V ac
Coil Power	300mW

Key Features

Operates with a coil voltage of 48V DC for efficient control.
Features a DPDT (Double Pole Double Throw) contact configuration.
Offers switching current capacity of 1A suitable for signal applications.
Gold plated contacts ensure excellent conductivity and corrosion resistance.
Fully sealed design provides enhanced durability and reliability.
Operating temperature ranges from -25°C up to 70°C for broad environmental suitability.
Coil resistance of 7600Ω and coil power consumption of 300mW for energy efficiency.
Meets RoHS compliance and conforms to FCC Part 68 requirements.

Product Description

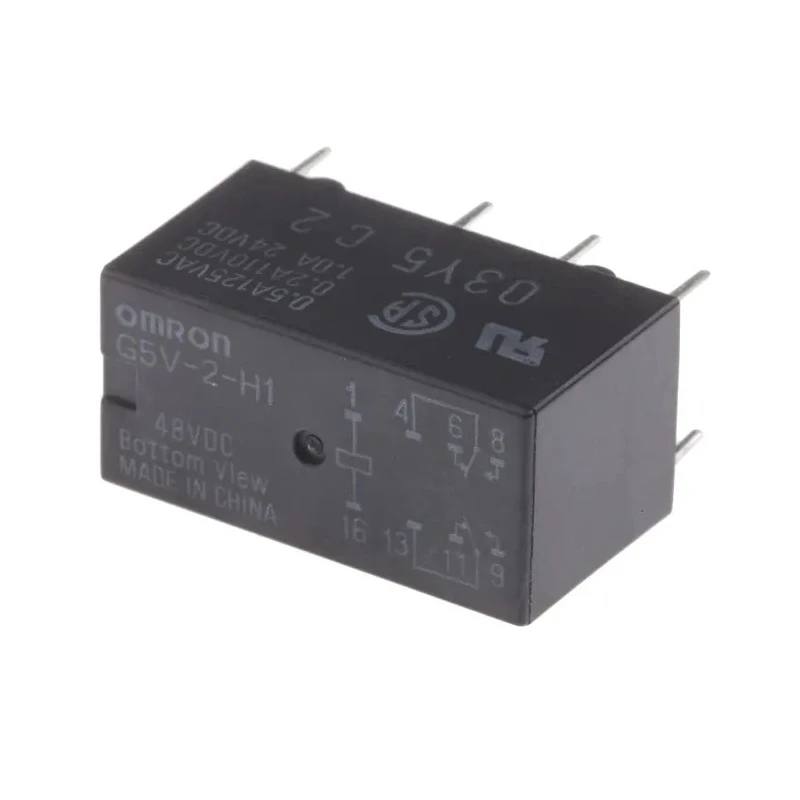

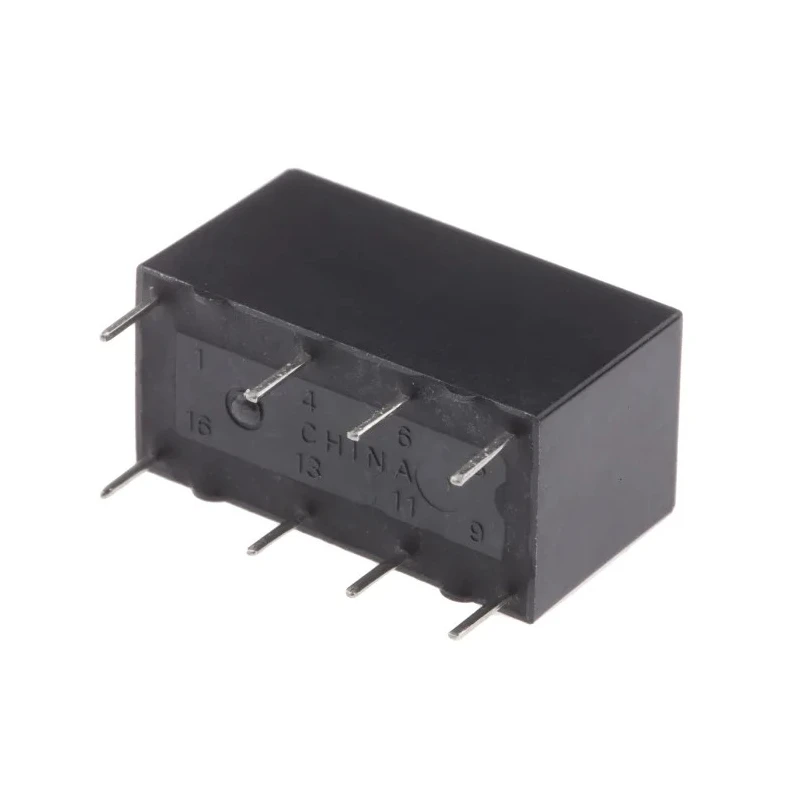

Omron G5V-2-H1 48DC PCB Signal Relay is a high-quality miniature relay designed for signal circuits requiring reliable low current switching. Operating with a 48V DC coil, this relay offers a 1A switching current capacity and a DPDT contact configuration, making it ideal for various electronic control applications.

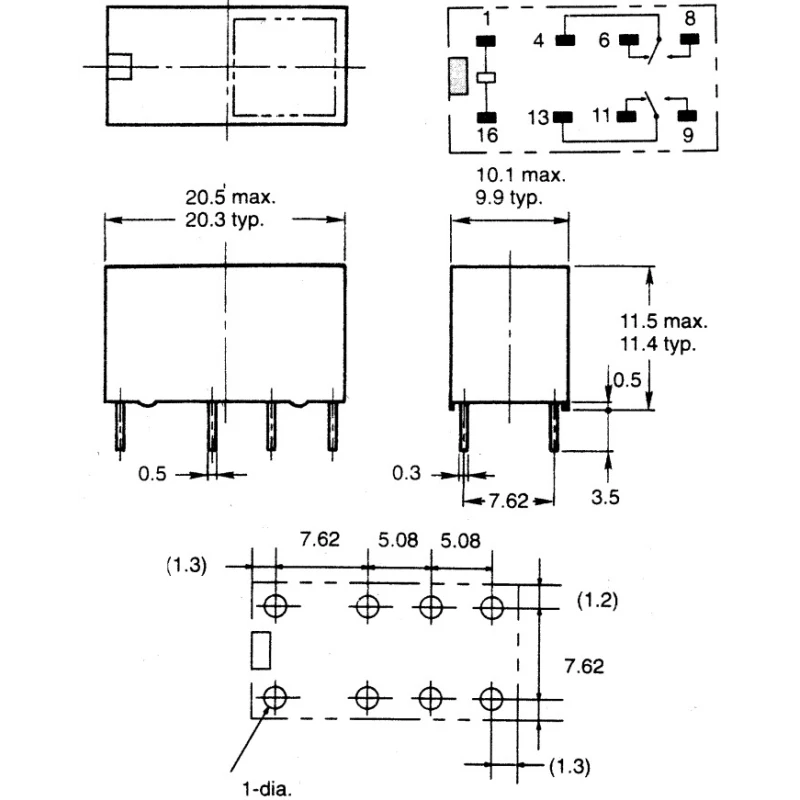

The relay features compact dimensions of 20.5mm length, 10mm width, and 11.5mm height, enabling it to fit efficiently on printed circuit boards. It includes gold plated contacts that provide excellent conductivity and resistance against corrosion, ensuring long operational life.

Its fully sealed construction protects the internal mechanism from dust and moisture, enhancing its durability for industrial and commercial electronic uses. The product is suitable for use in industrial automation, signal conditioning, and electronic control systems.

The coil power consumption is low, at 300mW, with a coil resistance of 7600Ω, optimizing power use. The relay reliably operates within a temperature range of -25°C to 70°C, suitable for diverse environmental conditions.

Compliant with RoHS standards and FCC Part 68 requirements, the G5V-2-H1 48DC relay supports global regulatory adherence. It is mounted on PCBs with solder terminals for secure and efficient integration into electronic assemblies.

Operates with a coil voltage of 48V DC. DPDT contact configuration for multi-contact switching. 1A switching current suitable for signal applications. Gold plated contacts for high conductivity and corrosion resistance. Fully sealed relay body for durability.

Temperature range from -25°C to 70°C for wide application range. Coil resistance 7600Ω and coil power 300mW for energy efficiency. PCB mount with solder-type terminals for secure installation. Complies with RoHS and FCC Part 68 standards.

Compact dimensions ensure easy PCB integration.

This relay is widely used in industrial, laboratory, and automation control systems where precise signal switching and reliability are critical. Its compact size and efficient electrical characteristics make it ideal for dense PCB layouts. Explore the full range of Omron relays on EnvMart for robust and compliant Signal Relay solutions.
