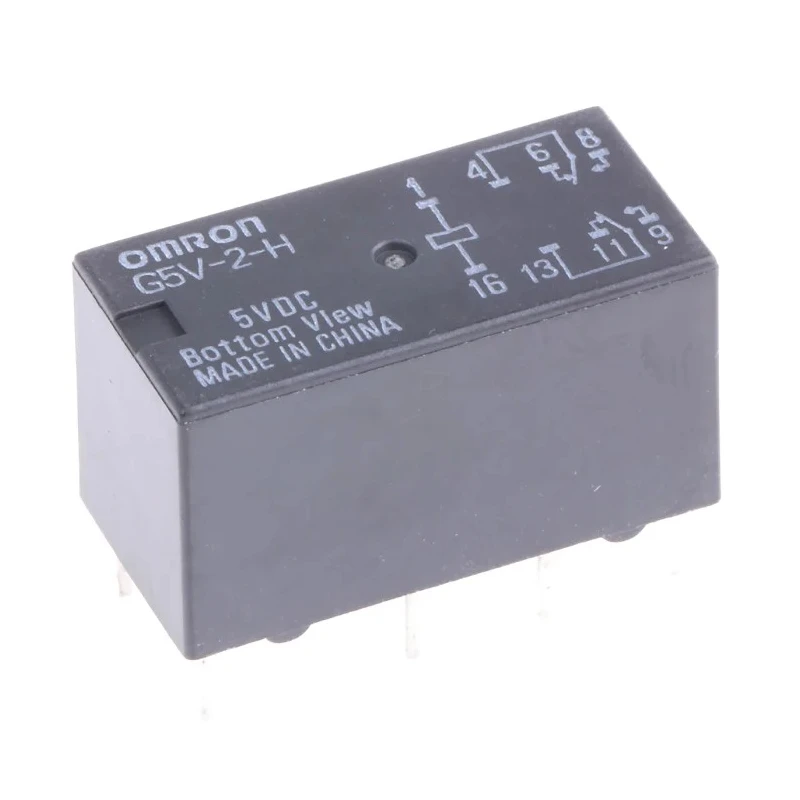

Omron PCB Signal Relay 5V dc Coil 1A DPDT G5V-2-H 5DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H 5DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Cradle N |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 166Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
Key Features
- This relay operates with a coil voltage of 5V dc for efficient power consumption.
- It supports dual pole double throw (DPDT) contact configuration for flexible switching.
- The relay is designed for mounting on PCBs with solder-type terminals.
- Operating temperature ranges from -25°C to 70°C, suitable for varied environments.

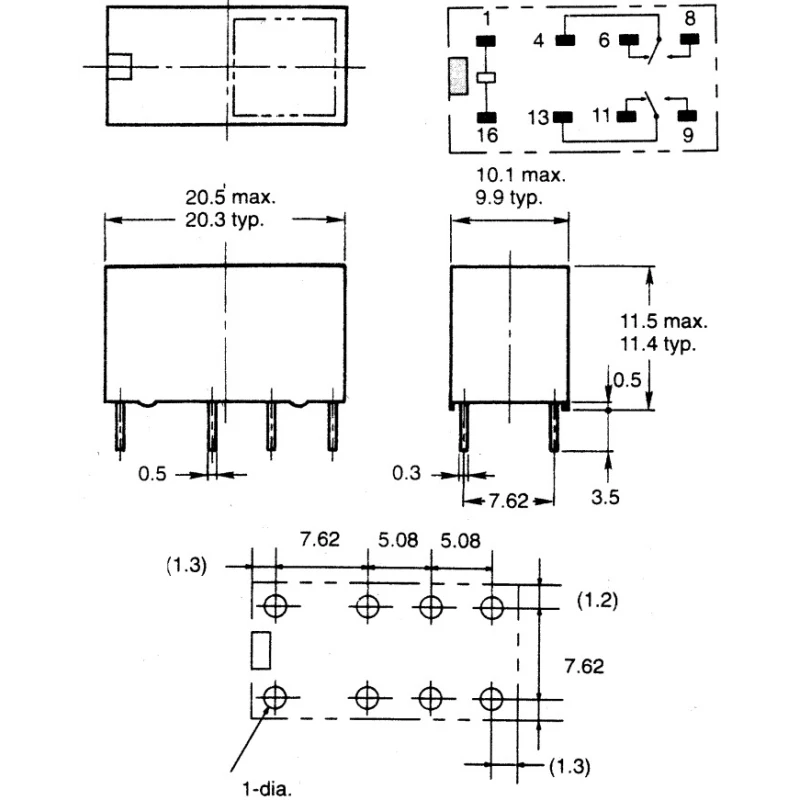

- Compact dimensions of 20.5mm length, 10mm width, and 11.5mm height enable easy integration.
- Gold-plated contacts ensure high reliability and low resistance during operations.
- Coil power consumption is 150mW with a coil resistance of 166Ω ensuring high sensitivity.
- It conforms to RoHS standards and is fully sealed to protect internal components.
Product Description
Omron G5V-2-H 5DC PCB Signal Relay is a miniature, high-sensitivity relay designed for signal circuits requiring dependable switching performance. This relay utilizes a 5V dc coil to actuate contacts with a DPDT configuration, allowing versatile double pole double throw switching suitable for various control applications.
The relay is engineered for PCB mounting with solder terminals, offering compact dimensions of 20.5mm length, 10mm width, and 11.5mm height to fit tight circuit board layouts. Gold-plated contacts provide low contact resistance and enhanced durability for stable electrical performance.
Operating reliably in temperatures from -25°C to 70°C, the relay's coil power rating is 150mW with a coil resistance of 166Ω to ensure ultra-high sensitivity, especially suitable for delicate signal control uses. The unit is fully sealed, meeting RoHS compliance and certified by UL and CSA, assuring quality and conformity with industrial safety standards.
This relay is ideal for a broad range of electrical and automation applications, including signal processing circuits, industrial control equipment, and more. Its fully sealed design offers protection against environmental factors, extending operational life in various settings.
This relay operates with a coil voltage of 5V dc for efficient power consumption. It supports dual pole double throw (DPDT) contact configuration for flexible switching. The relay is designed for mounting on PCBs with solder-type terminals.
Operating temperature ranges from -25°C to 70°C, suitable for varied environments. Compact dimensions of 20.5mm length, 10mm width, and 11.5mm height enable easy integration. Gold-plated contacts ensure high reliability and low resistance during operations.
Coil power consumption is 150mW with a coil resistance of 166Ω ensuring high sensitivity. It conforms to RoHS standards and is fully sealed to protect internal components. UL and CSA approvals further validate its industrial safety and quality.
Originating from China, this relay is built for signal applications in electronic circuits. Explore more quality relays and electrical components on EnvMart for your automation and electronic equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V dc.
It features a dual pole double throw (DPDT) contact configuration, allowing for versatile switching.
The maximum switching current for this relay is 1A.
This relay has compact dimensions of 20.5mm in length, 10mm in width, and 11.5mm in height.
The coil power consumption is 150mW.
It operates reliably in temperatures ranging from -25°C to 70°C.
The relay is designed for PCB mounting with solder-type terminals.
The contacts are made of gold-plated material, which ensures low resistance during operations.
Yes, it conforms to RoHS standards and is certified by UL and CSA.
The coil resistance is 166Ω.
The maximum switching voltage is 125V dc for DC and 125V ac for AC applications.
This relay is manufactured in China.
