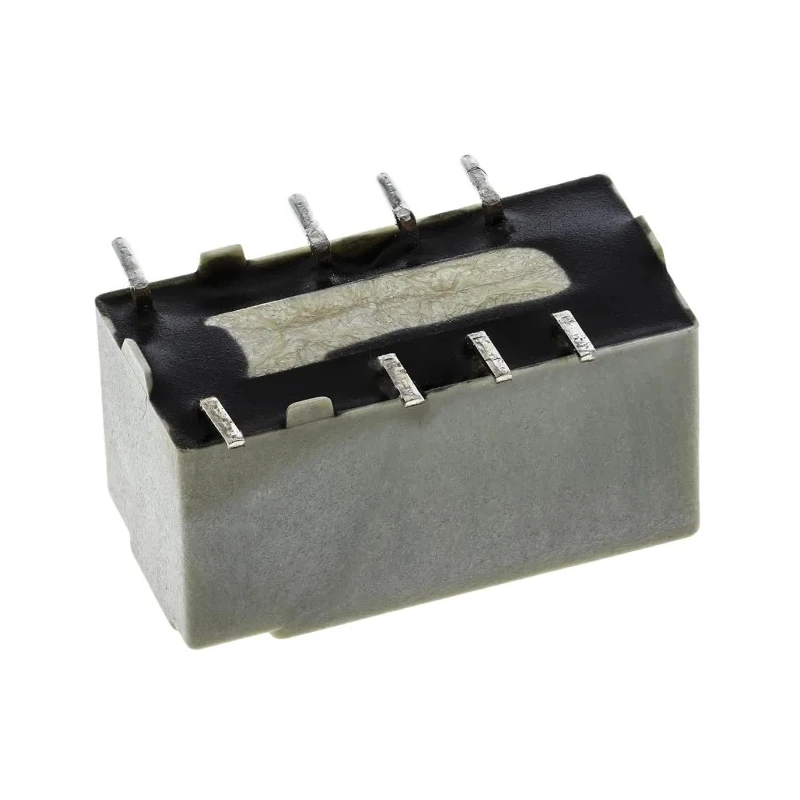

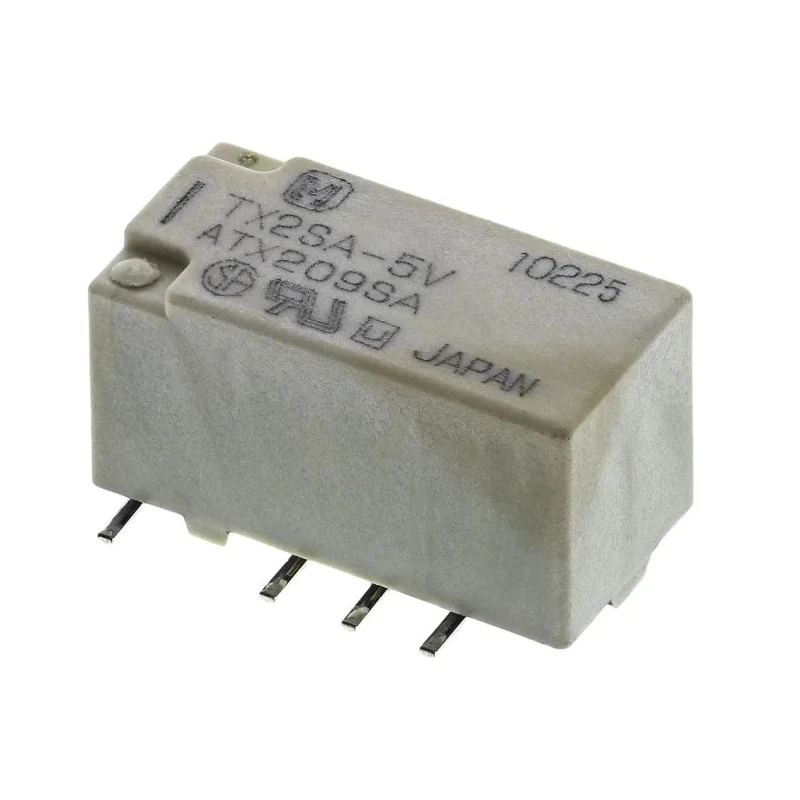

Panasonic Surface Signal Relay, 5V DC Coil Voltage, 2A Switching Current, DPDT Contact Configuration TX2SA-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2SA-5V |
| Width | 7.4mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
Key Features
- Features high contact capacity of 2A ideal for signal switching needs.
- Equipped with sealed surface mount design for enhanced durability.
- Operates reliably within temperature range of -40°C to 85°C.
- Gold plated contacts provide superior conductivity and corrosion resistance.
- Coil power consumption is minimal at 140mW, with coil resistance of 178Ω.
- Compact dimensions of 15mm length, 8.2mm height, and 7.4mm width.
- Compliant with RoHS standards ensuring environmental safety.
- Suitable for telecommunication, measurement, security, and medical equipment applications.
Product Description
Panasonic TX2SA-5V is a high-performance surface signal relay designed for precision electronic switching. This relay features a 5V DC coil voltage with a switching current capacity of 2A, configured in a Double Pole Double Throw (DPDT) contact arrangement. Its coil consumes only 140mW of power with a resistance of 178Ω, making it energy efficient.
The relay’s compact footprint measures 15mm in length, 8.2mm in height, and 7.4mm in width. Its surface mount design allows for easy integration onto printed circuit boards (PCBs), improving manufacturing efficiency. The gold plated contact material ensures high conductivity and reliable signal transmission, while a robust sealed construction facilitates automatic washing and protects against environmental contaminants.
With a wide operating temperature range from -40°C to 85°C, this signal relay maintains performance under harsh conditions. It switches AC and DC voltages up to 220V, making it versatile for various industrial and commercial electronics tasks.
This relay is part of Panasonic's G6K series, renowned for high breakdown voltage and excellent resistance against vibration and shock, enhancing operational longevity and reliability. It meets RoHS environmental and safety standards and is manufactured in Japan, ensuring high quality and compliance.
Common use cases include telecommunications infrastructure, measurement instrumentation, security systems, and medical devices where precise and dependable signal control is critical.
High contact capacity of 2A with DPDT configuration for flexible signal switching. Surface mount type allows compact PCB layout and automated manufacturing. Gold plated contacts reduce contact resistance and improve reliability.
Sealed design supports automatic washing and protects internal components. Wide temperature tolerance ensures consistent operation under extreme conditions. Compliant with RoHS directives for environmental safety. Manufactured in Japan, guaranteeing premium quality standards.
