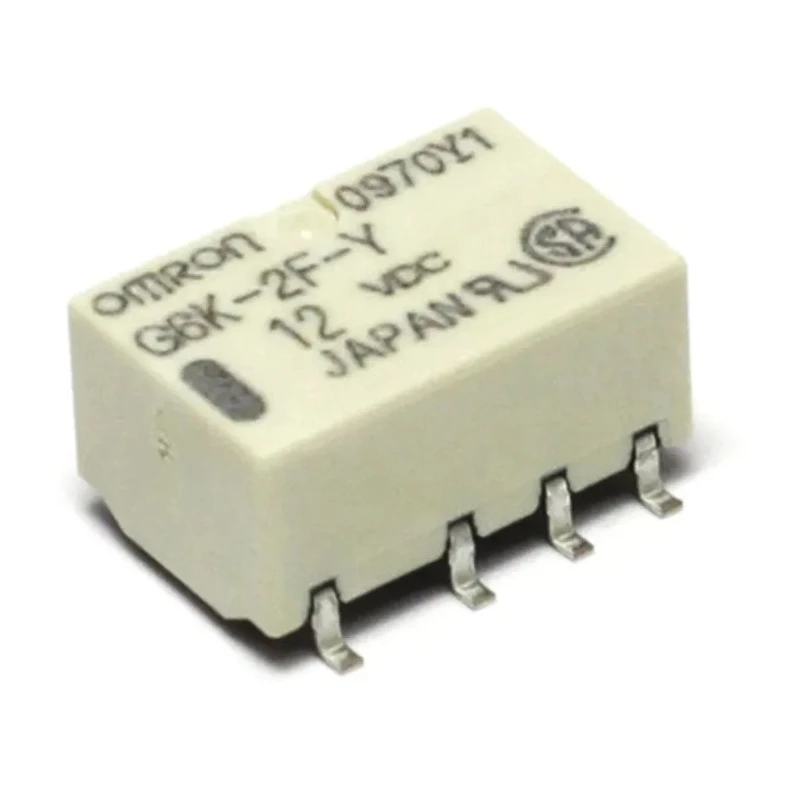

Omron Surface Signal Relay DPDT 4.5V DC Coil 1A 30W Switching Power G6KU-2F-Y DC4.5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6KU-2F-Y DC4.5 |
| Width | 6.9mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 194Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- This relay operates with a coil power consumption of approximately 100mW.
- It supports switching AC voltage up to 125V AC and DC voltage up to 60V DC.
- Features gold plated contacts ensuring reliable conduction and low contact resistance of 100mΩ.

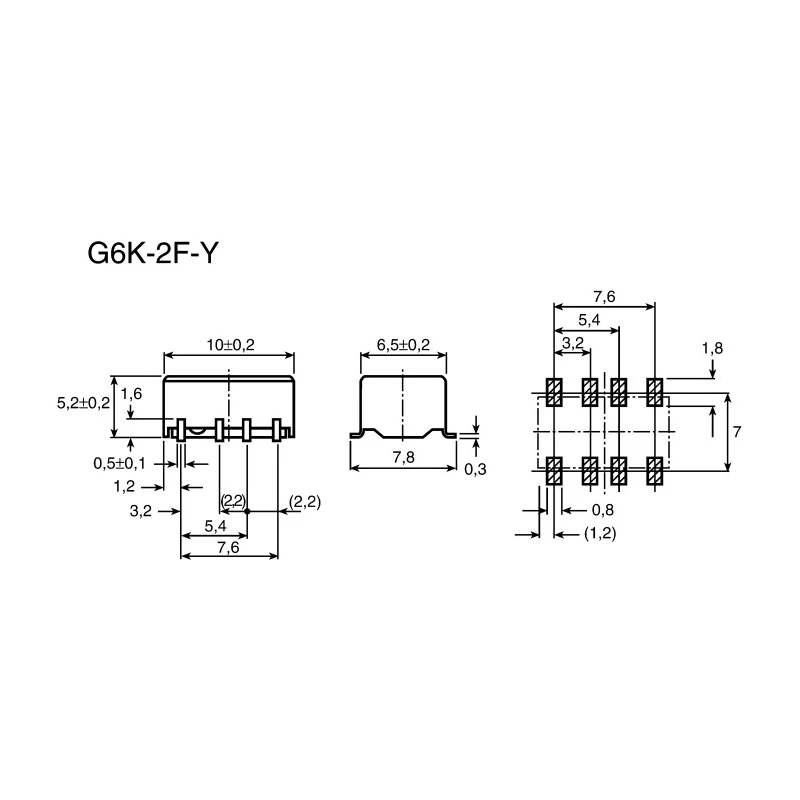

- Compact surface mount design with dimensions 10mm length, 6.9mm width, and 5.2mm height.
- Operates reliably within a temperature range of -40°C to 70°C.
- Conforms to RoHS standards and has FCC and Bellcore high voltage surge withstand specifications.
- Ideal for use in industrial, automation, and electronic signal switching applications.
- Low profile and fully sealed construction enhances reliability.
Product Description
The Omron G6KU-2F-Y DC4.5 is a surface mount signal relay designed for industrial and electronic applications requiring reliable and compact switching solutions. It features a 4.5V DC coil with low power consumption around 100mW, making it energy efficient and suitable for integration in automated systems.
This DPDT (double pole double throw) configuration relay supports a switching current of 1A and switching power of 30W, accommodating signals up to 125V AC and 60V DC. The contacts are gold plated to ensure low contact resistance of 100mΩ, promoting superior electrical conductivity and long service life.
With compact dimensions of 10mm length, 6.9mm width, and 5.2mm height, the relay is ideal for high-density surface mount PCB layouts. It operates reliably across a wide temperature range from -40°C to 70°C, suitable for harsh industrial environments.
The Omron G6K series incorporates a unique terminal structure optimized for infrared soldering, guaranteeing excellent solder joints and durability. The G6KU-2F-Y model conforms to FCC Part 68 and Bellcore surge withstand standards, assuring robustness against voltage spikes common in industrial control systems.
The device is RoHS compliant, supporting environmentally friendly and sustainable manufacturing practices. This Signal Relay is well-suited for applications in automation, industrial machinery, electronic control circuits, and signal conditioning systems.
This relay has a low profile and fully sealed construction enhancing reliability. It is manufactured in Japan, ensuring high quality and precision engineering. Its surface mount terminal type enables easy automated PCB assembly.
Suitable for electronics manufacturing, industrial automation, and control panels. Explore the wide range of Omron relays and related products at EnvMart for your signal switching and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 4.5V DC.
The maximum switching current for the G6KU-2F-Y relay is 1A.
This relay has dimensions of 10mm in length, 6.9mm in width, and 5.2mm in height.
It can switch AC voltage up to 125V and DC voltage up to 60V.
The contact configuration is DPDT (double pole double throw).
The contact resistance is 100mΩ, ensuring reliable conduction.
The coil power consumption is approximately 100mW.
It operates reliably within a temperature range of -40°C to 70°C.
This relay conforms to RoHS standards and FCC Part 68, as well as Bellcore surge withstand specifications.
This model uses a surface mount terminal type, suitable for automated PCB assembly.
The G6KU-2F-Y relay is manufactured in Japan.
It is suitable for use in industrial automation, electronic control circuits, and signal conditioning systems.
