TE Connectivity PCB Signal Relay 24V DC Coil 3A 4PDT V23003B 37C110

Free Delivery in India | Lowest Global Shipping Charges

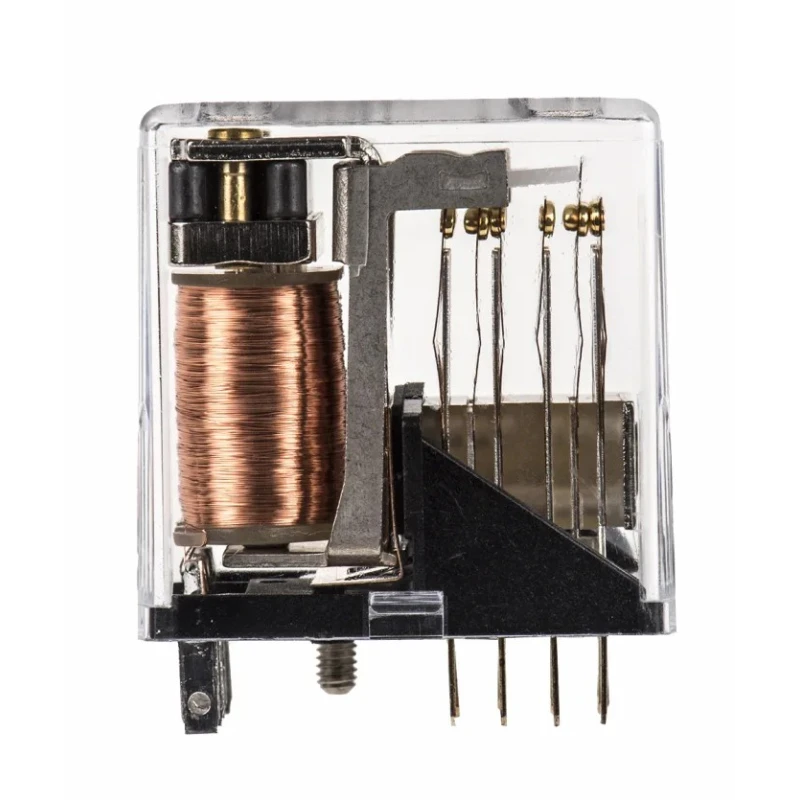

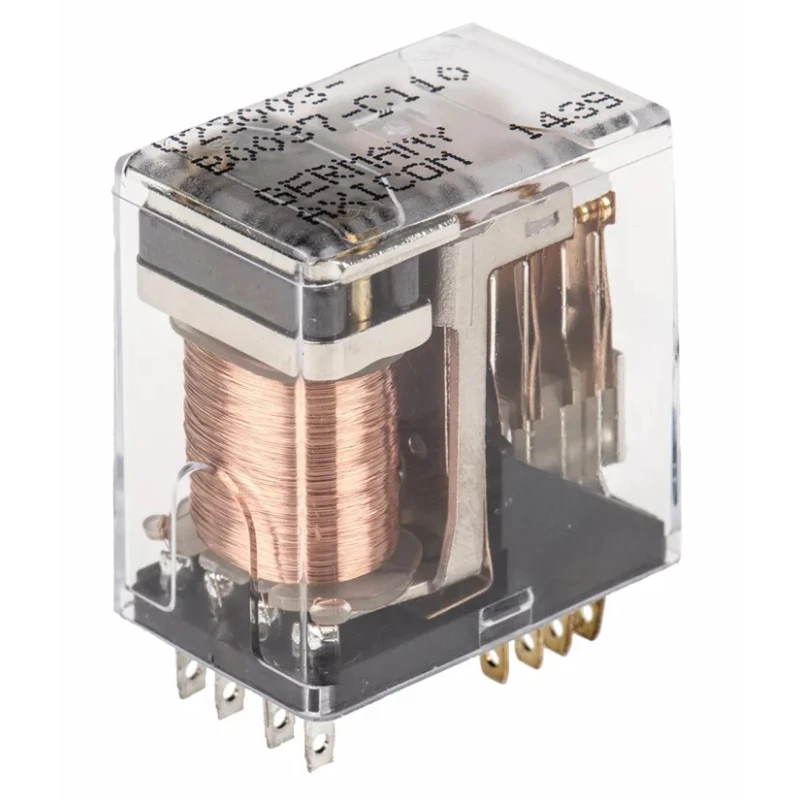

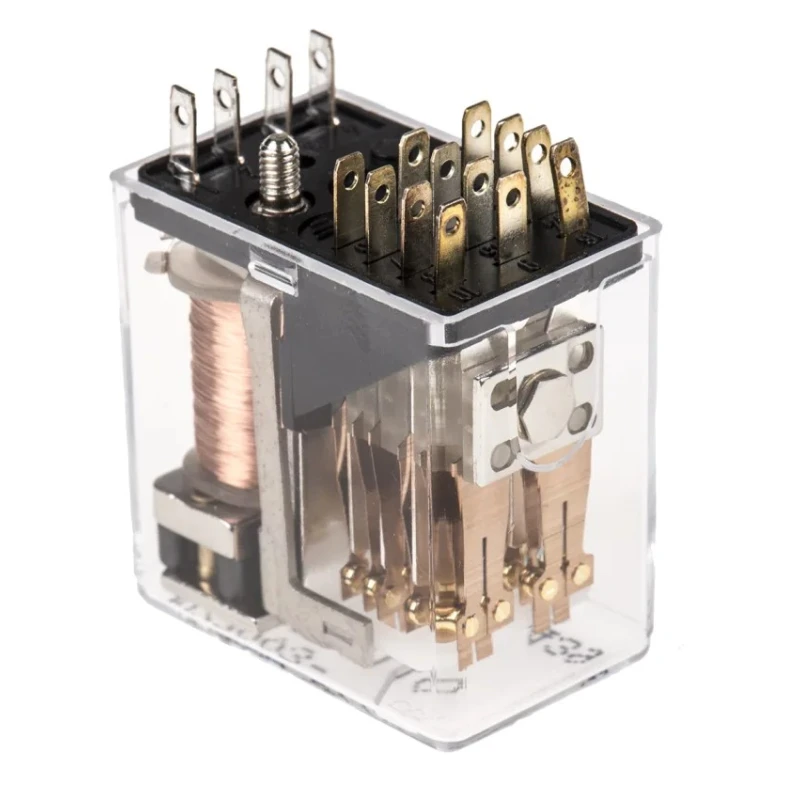

TE Connectivity PCB Signal Relay 24V DC Coil 3A 4PDT V23003B 37C110

Name: TE Connectivity PCB Signal Relay 24V DC Coil 3A 4PDT V23003B 37C110
Brand: TE Connectivity
SKU: 425408
Price: 20.22 USD
Availability: InStock



Category Signal Relay Brand TE Connectivity Condition New

Specifications

Country of Origin	Germany
Brand	TE Connectivity
Height	30mm
Length	30mm
Model	V23003B 37C110
Width	19mm
Mount Type	PCB
Contact Material	Gold Plated
Maximum Operating Temperature	70°C
Contact Configuration	4PDT
Minimum Operating Temperature	-40°C
Switching Current	3A
Terminal type	Plug-In
Standards/Approvals	RoHS
Coil Resistance	400Ω
Coil Voltage	24V dc
Switching DC Voltage	150V dc
Switching AC Voltage	125V ac
Coil Power	1.44W

Key Features

The relay operates with a coil resistance of 400 ohms and coil power of 1.44 watts.
Supports switching voltages up to 125V AC and 150V DC.
Designed to perform reliably in temperatures ranging from -40°C to 70°C.
The plug-in terminal type facilitates easy installation on PCBs.
Complies with RoHS standards ensuring environmentally friendly design.
Manufactured in Germany, ensuring high-quality build and durability.

Product Description

TE Connectivity V23003B 37C110 PCB Signal Relay is a high-quality 24V DC coil relay designed for reliable switching applications on printed circuit boards. It features a 4PDT contact configuration enabling multiple contact switching within compact dimensions of 30mm by 30mm by 19mm.

Engineered with a coil resistance of 400 ohms and coil power consumption of 1.44 watts, this relay is suitable for sensitive signaling tasks and industrial signal conditioning where reliability is critical. The contacts are gold plated, enhancing conductivity and reducing wear from repeated switching cycles.

It supports switching currents up to 3 amperes and can handle switching voltages up to 125 volts AC and 150 volts DC. Its operational temperature range from -40°C to 70°C allows usage in stringent industrial environments.

The plug-in terminal type simplifies integration into PCB assemblies and allows for both fixed and plug-in installations. The relay is dustproof and suited for complex electronic applications requiring precise and durable signal relay performance.

The relay operates with a coil resistance of 400 ohms and coil power of 1.44 watts. Supports switching voltages up to 125V AC and 150V DC. Designed to perform reliably in temperatures ranging from -40°C to 70°C. The plug-in terminal type facilitates easy installation on PCBs.

Compact dimensions: 30mm length, 30mm height, and 19mm width. Complies with RoHS standards ensuring environmentally friendly design. Manufactured in Germany, ensuring high-quality build and durability.

This TE Connectivity Signal Relay is widely used in industrial automation, electronic manufacturing, instrumentation, and control systems where reliable switching is mandatory. It offers durability and precision necessary for complex signal control applications.

Explore the Electronics & Electrical category for more relay and signal conditioning solutions that suit a variety of industrial and commercial applications. Choose TE Connectivity products for trusted quality and performance at EnvMart.
