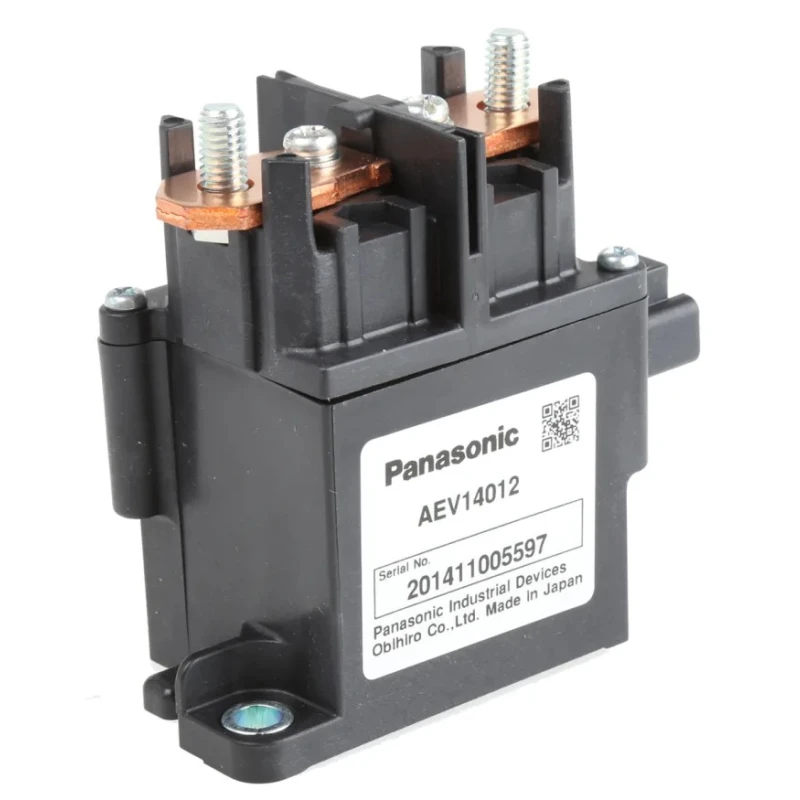

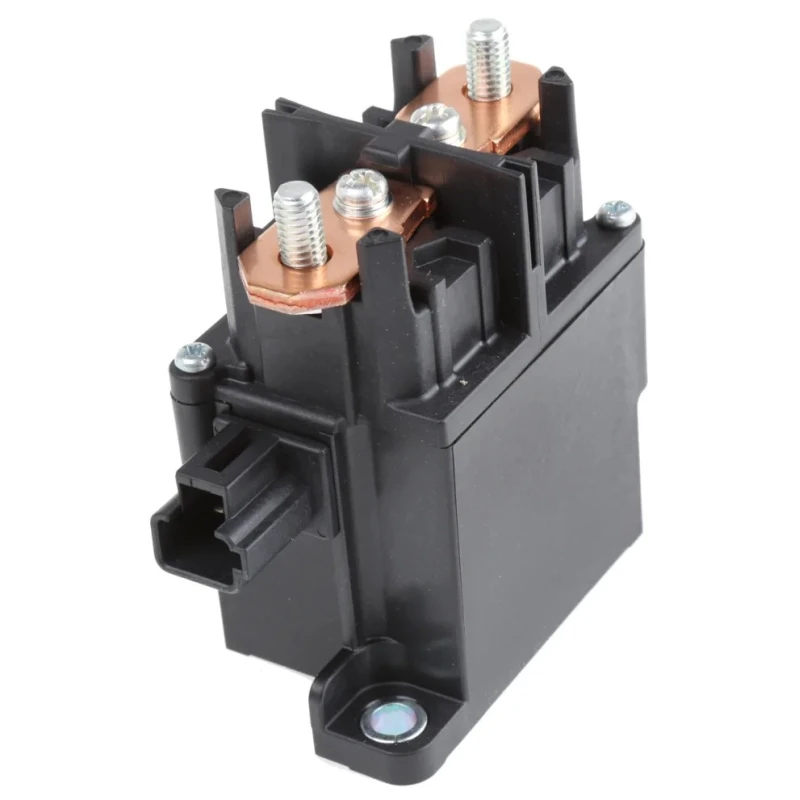

Panasonic Panel Automotive Relay, 12V DC Coil, 120A Switching Current, SPNO AEV14012
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 80mm |
| Length | 75.5mm |
| Model | AEV14012 |
| Depth | 40mm |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Series | AEV |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPNO |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Coil Resistance | 34Ω |
| Coil Power | 4.2W |
Key Features
- Robust panel mount automotive relay designed for high current switching.
- Features Single Pole Normally Open (SPNO) contact configuration with copper alloy contacts.
- Coil power consumption is 4.2W with coil resistance of 34 ohms.
- Wide operating temperature range from -40°C to +80°C for durability.
- Compact and lightweight design with dimensions 75.5mm length, 80mm height, and 40mm depth.
- Terminal type is screw with terminal protection cover for secure connections.
- Sealed capsule mechanism with hydrogen gas fill for high contact reliability.
- Suitable for automotive, electric vehicle, hybrid vehicle, and construction equipment use.
Product Description
Panasonic AEV14012 Panel Automotive Relay is a high capacity automotive relay engineered for efficient and reliable switching of high current circuits using a 12V DC coil. This relay is part of the Panasonic AEV series featuring a robust sealed capsule mechanism where the contact portion is sealed in hydrogen gas, preventing contact oxidation and ensuring excellent contact reliability over extended life.
The relay’s compact panel mount form factor makes it suitable for space-constrained applications while offering a 120A maximum switching current capability. It employs a Single Pole Normally Open (SPNO) contact configuration with copper alloy contacts, providing durable and efficient electrical conduction.
Operating temperatures from -40°C to +80°C accommodate harsh automotive and industrial environments. The coil power requirement is 4.2 watts with a coil resistance of 34 ohms, optimized for low coil current draw.
This relay includes screw terminals with a terminal protection cover to ensure secure and safe installation. Standard dimensions of 75.5mm length, 80mm height, and 40mm depth contribute to compact and lightweight design suitable for modern automotive electrical systems.
Panasonic automotive relays like the AEV14012 find application in electric vehicles, hybrid vehicles, fuel-cell vehicles, battery charge and discharge systems, general automotive motor use, and construction equipment where high current switching performance is critical.
High current switching with robust SPNO contact design. Compact and lightweight panel mount design. Wide -40°C to +80°C operating temperature range. Sealed contact mechanism for long-lasting reliability. Copper alloy contacts for optimal performance.
Screw terminal connections with protective cover. Versatile use in automotive and industrial applications. Explore more Automotive Relays and related components at EnvMart for your industrial and automotive electrical design, maintenance, and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 120A.
The coil power consumption is 4.2W.
It features a Single Pole Normally Open (SPNO) contact configuration.
The dimensions are 75.5mm in length, 80mm in height, and 40mm in depth.
The operating temperature range is from -40°C to +80°C.
It uses screw terminals with a terminal protection cover for secure connections.
The contacts are made of copper alloy.
Yes, it is suitable for automotive, electric vehicles, hybrid vehicles, and construction equipment.
The coil resistance is 34 ohms.
The mounting type is panel mount.
It belongs to the AEV series of relays.
The country of origin for this relay is Japan.
