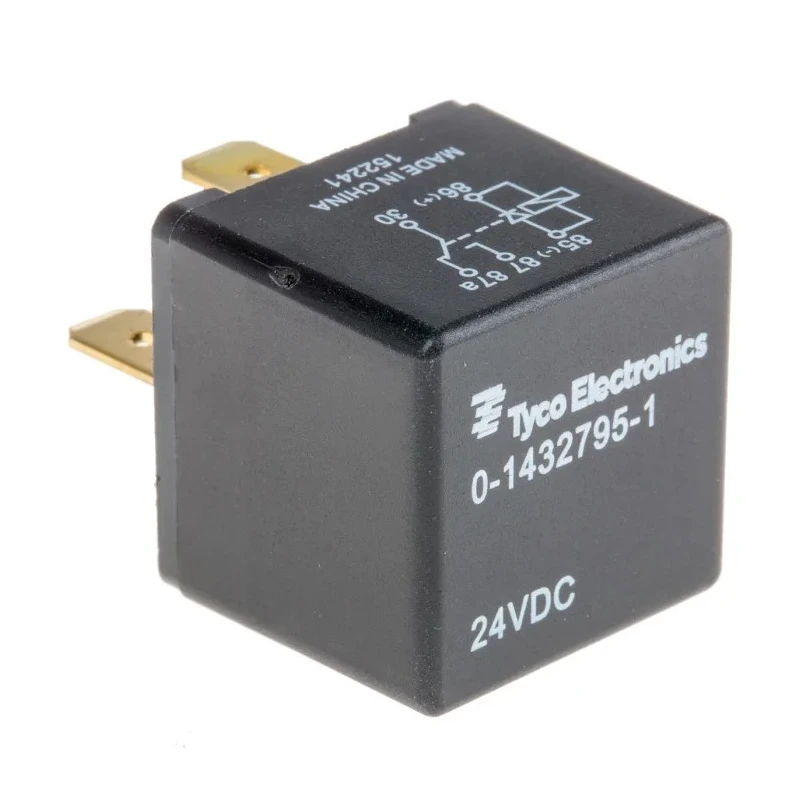

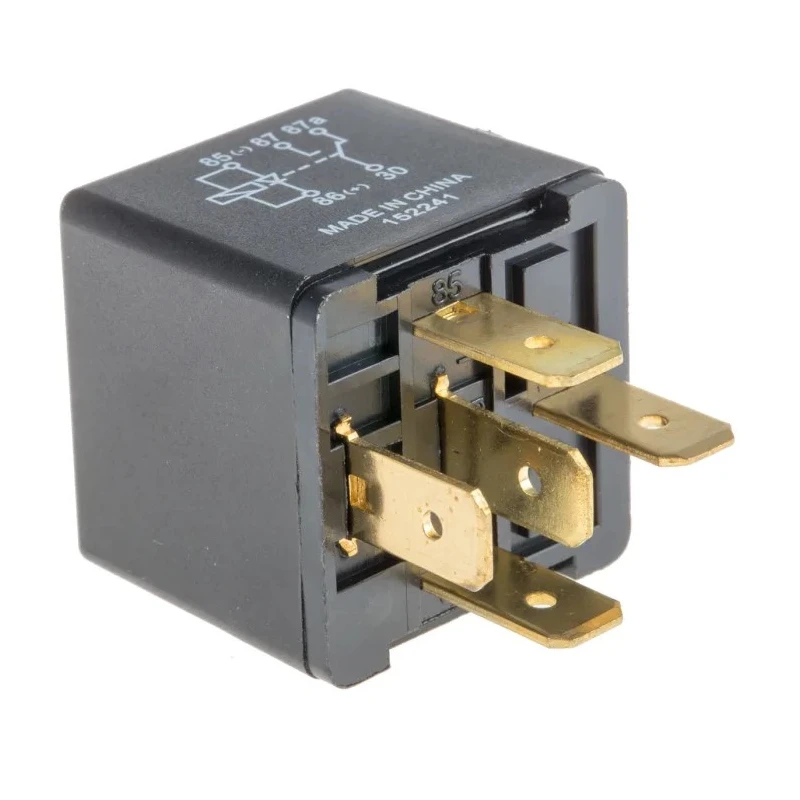

TE Connectivity Automotive Relay SPDT 24V DC Coil Voltage 30A Switching Current 1432795-1

TE Connectivity 1432795-1 automotive relay is a high-quality SPDT non-latching relay designed specifically for automotive electrical applications. Featuring a reliable 24V DC coil voltage and 30A switching current capacity, this relay ensures robust performance in demanding automotive environments.

The relay is part of the VF4 series, known for its durable plated brass terminals and a coil resistance of 360 ohms that maintains consistent operation. It supports quick connect terminals, allowing for efficient installation in automotive systems.

Engineered to operate within a wide temperature range of -40°C to 85°C, it offers excellent environmental resilience for automotive headlamps, ignition loads, and other vehicle electrical control needs. The relay's compact dimensions of 26.5mm by 24.5mm by 26.5mm enable versatile mounting options.

With a coil to contact isolation voltage rating of 500 Vrms and contact material made from silver tin oxide, the relay exhibits high electrical insulation and contact durability. It reacts swiftly with an approximate operate time of 10 milliseconds and a release time of 13 milliseconds, enhancing automotive circuit responsiveness.

This automotive relay is certified to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring compliance with critical electrical safety and electrostatic discharge requirements.

Non-latching VF4 series panel mount relay with SPDT contact configuration. Coil resistance of 360 ohms ensures stable operation. Quick connect terminals for easy installation. Operates reliably between -40°C and 85°C ambient temperatures.

Isolation coil to contact voltage is rated at 500 Vrms for safety. Contact material utilizes silver tin oxide for durability. Compact dimensions of 26.5mm length, 24.5mm height, and 26.5mm depth. Operate time is approximately 10 milliseconds with release time around 13 milliseconds.

Suitable for automotive headlamps and ignition load control. Certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

This TE Connectivity automotive relay is ideal for automotive, industrial, HVAC, and manufacturing electrical control applications requiring reliable switching with fast response times and compliance with safety and electrostatic standards. Explore the extensive range of Automotive Relays and electrical components on EnvMart for your application needs.
