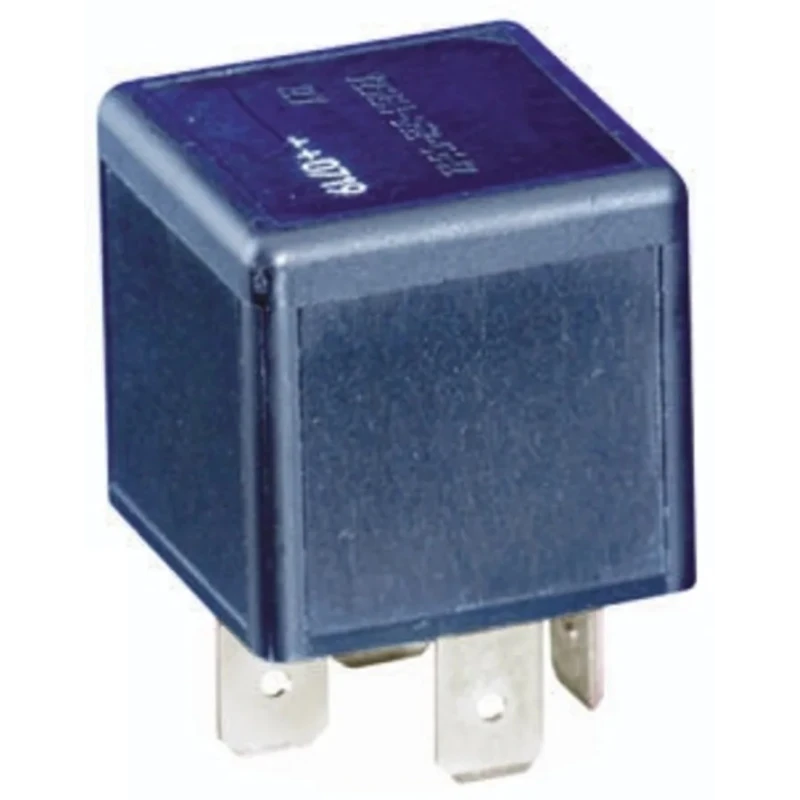

TE Connectivity Automotive Relay 12V DC Coil Voltage 40A Switching Current SPST V23134B0052C642 7-1393302-5
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 51.9mm |
| Length | 25.9mm |
| Model | V23134B0052C642 7-1393302-5 |
| Depth | 29.9mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| Coil Resistance | 90Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Designed for automotive applications including ignition lock and lamp load control.
- Features a coil power of 1.6W with coil resistance of 90 ohms.
- Single pole, single throw (SPST) contact configuration ensures precise switching.
- Quick connect terminal type allows easy installation.
- Operates efficiently in temperatures ranging from -40°C to 125°C.
- Silver contact material with isolation voltage of 500V between coil and contact.
- Part of the F4 series, known for robust performance and dust protection to IP54 standard.
Product Description
TE Connectivity V23134B0052C642 7-1393302-5 automotive relay is a compact and reliable electrical component designed for various automotive uses. Operating at a coil voltage of 12V DC and capable of switching currents up to 40A, this relay features a single pole single throw (SPST) contact configuration, suitable for controlling circuits such as ignition locks and lamp loads.
The relay's coil power consumption is 1.6W with a coil resistance of 90 ohms, providing efficient energy usage. Its quick connect terminal type ensures fast and secure wiring installation, simplifying maintenance and replacement tasks.
Engineered to operate in a wide temperature range from -40°C to 125°C, this relay is built to withstand harsh automotive environments. Its dimensions are compact (25.9mm length, 51.9mm height, and 29.9mm depth), making it suitable for tight installation spaces.
The relay uses silver for contact material offering excellent conductivity and durability. It provides an isolation voltage of 500V between coil and contact, ensuring operational safety and preventing electrical interference.
Part of the F4 series, these mini ISO automotive relays are protected against dust ingress to an IP54 level, making them reliable for applications such as ABS systems, fuel pumps, electric power steering, wiper control, car alarms, and blower fans.
Designed for automotive electrical switching and control applications. Supports reliable operation over a wide temperature spectrum. Quick connect terminals for ease of use. Compact design suitable for constrained spaces.
Silver contacts ensure longevity and low resistance. IP54 dust protection rating for enhanced durability. Part of the F4 series offering various contact arrangements and configurations.
This TE Connectivity automotive relay is manufactured in Portugal, reflecting high quality in materials and assembly. It is ideal for use in automotive manufacturing, repair, and maintenance operations, as well as other industrial applications requiring dependable DC relay switching.
Explore more Automotive Relays and related electrical components on EnvMart to optimize your industrial and automotive electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay operates at a coil voltage of 12V DC.
It is capable of switching currents up to 40A.
This model features a single pole, single throw (SPST) contact configuration.
The coil power consumption is 1.6W.
It operates efficiently in temperatures ranging from -40°C to 125°C.
The relay uses silver for its contact material, which provides excellent conductivity.
The isolation voltage between the coil and contact is 500V.
The relay has dimensions of 25.9mm in length, 51.9mm in height, and 29.9mm in depth.
It features a quick connect terminal type for easy installation.
This model is part of the F4 series, known for its robust performance.
This relay is manufactured in Portugal.
It is designed for automotive applications such as ignition locks and lamp load control.
