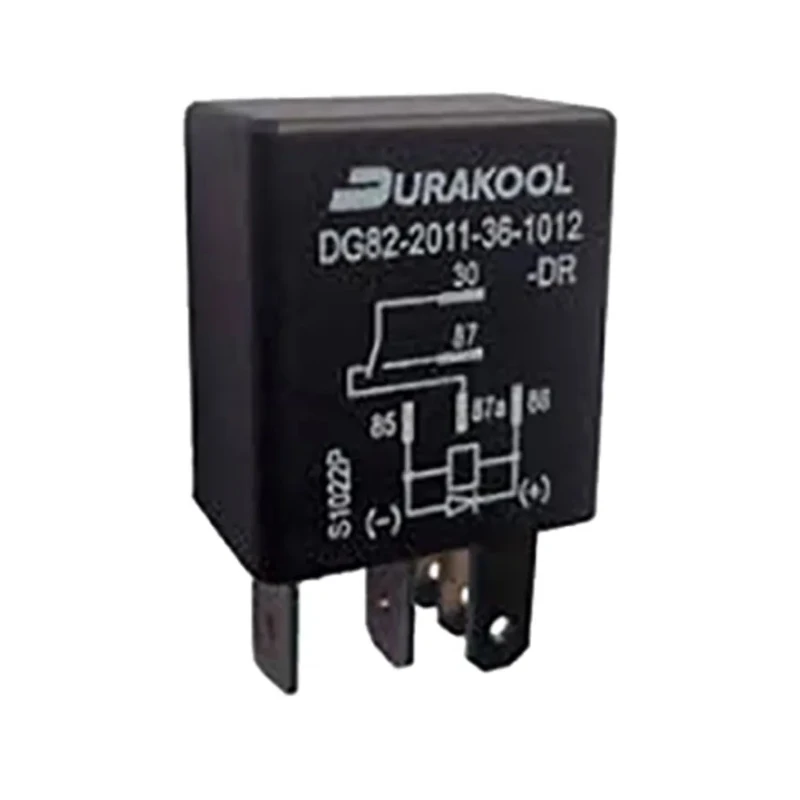

Durakool PCB Automotive Relay, 12V Coil Voltage, 1.81W Coil Power, 90A Switching Current, SPDT DG82-2011-36-1012-DR

Durakool DG82-2011-36-1012-DR PCB Automotive Relay is designed specifically for automotive electrical and control applications requiring reliable switching performance. It features a 12V coil voltage and low coil power consumption of 1.81W, making it efficient for continuous operation.

This relay includes a single pole double throw (SPDT) contact configuration that supports switching currents up to 90A, making it ideal for controlling DC motors and other heavy automotive loads.

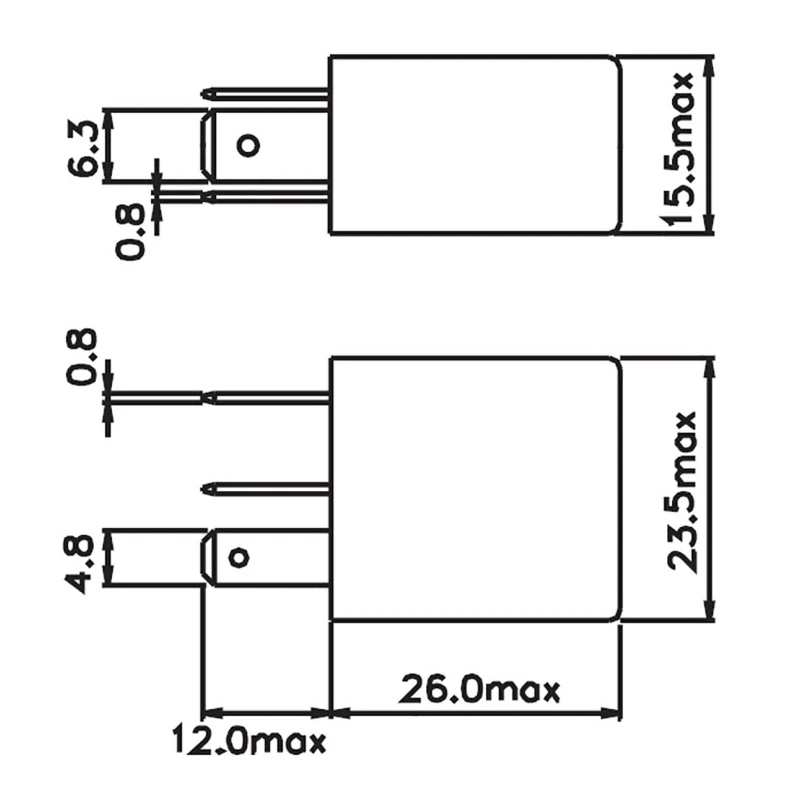

The relay utilizes silver alloy contact material to ensure excellent electrical conductivity and mechanical durability. Its compact dimensions (26.5mm length, 21.4mm height, and 15.7mm depth) facilitate integration on printed circuit boards (PCB) via PCB terminals and mounts securely on the circuit board.

Engineered to operate reliably in extreme temperature conditions ranging from -40°C to 125°C, this relay offers high resistance to inrush currents and a high continuous DC current capacity, enhancing overall durability and operational life.

SPDT contact configuration for versatile switching applications. High switching current of 90A suitable for automotive electrical control. Single pole design with PCB terminal for secure mounting. Wide operating temperature range from -40°C to 125°C.

Compact size for space-constrained PCB environments. 500Vrms isolation between coil and contacts for safety. Silver alloy contacts for improved electrical performance. Durakool DG82 series reliability with industry-standard footprint and longevity.

This relay is suitable for industrial, automotive, manufacturing, and electrical control systems requiring reliable DC motor control and switching performance. Explore more high-quality relays and contactors in the Electronics & Electricals category on EnvMart for diverse application needs.
