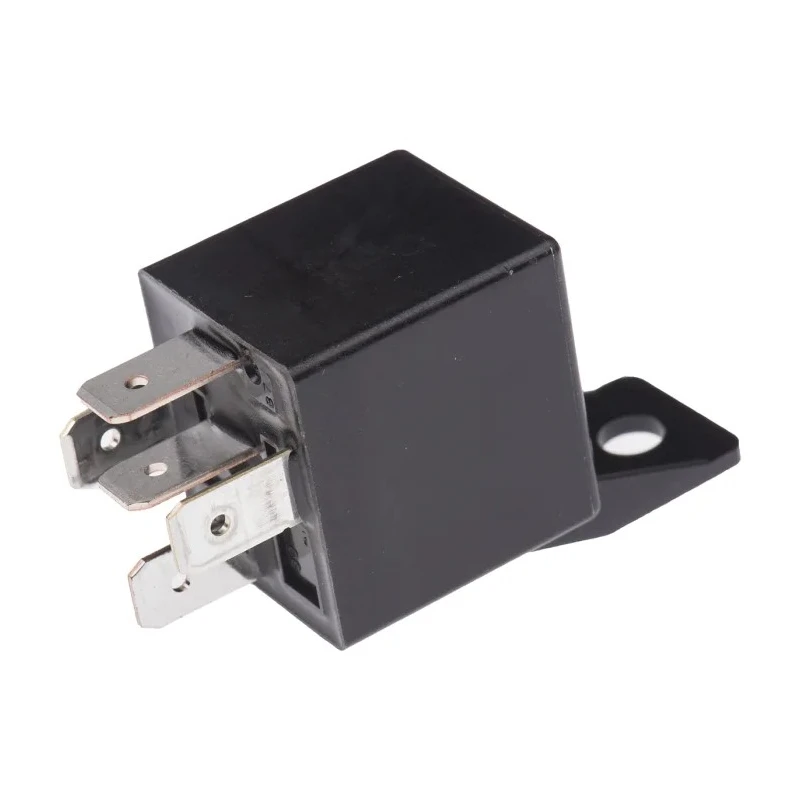

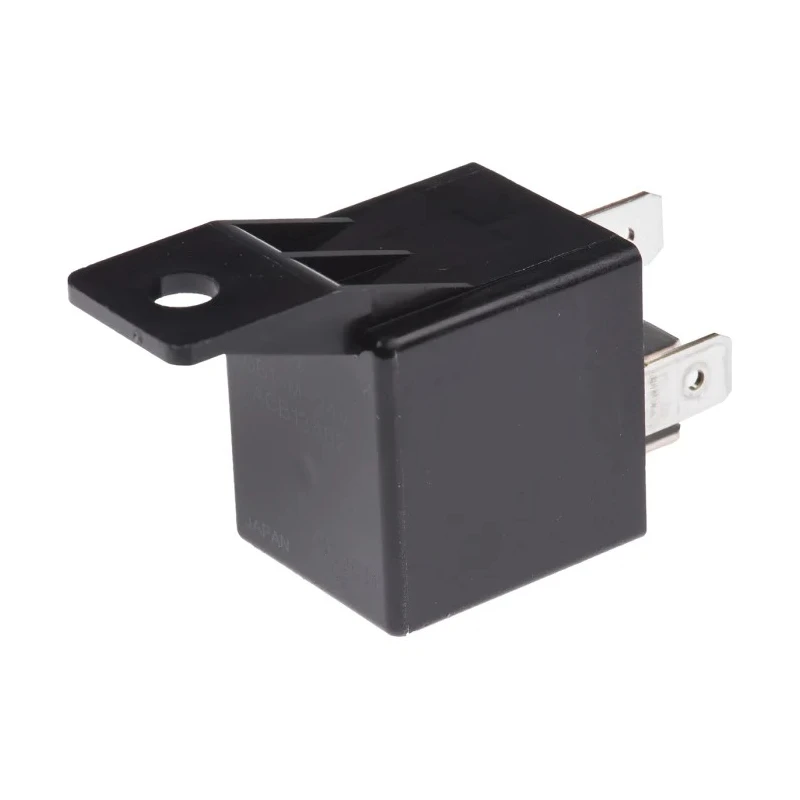

Panasonic Automotive Relay PCB Mount SPDT 24V DC Coil Voltage 20A Switching Current CB1-M-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 25mm |
| Length | 26mm |
| Model | CB1-M-24V |
| Depth | 22mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 320Ω |
| Coil Power | 1.8W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- High switching capacity suitable for automotive applications.
- Compact PCB mount with dimensions 26mm length, 25mm height, and 22mm depth.
- Coil power consumption of 1.8W and coil resistance of 320 ohms.
- Single pole double throw (SPDT) contact configuration with silver alloy contacts.
- Operates reliably between -40°C to 85°C temperature range.
- Quick connect terminal type for easy installation.
- Isolation between coil and contact rated at 500Vrms.
- Made in Japan, ensuring high quality manufacturing standards.
Product Description
Panasonic CB1-M-24V automotive relay is a high performance PCB-mount relay with a 24V DC coil voltage and a switching current capacity of 20A. It is ideal for automotive, construction, and agricultural equipment applications, providing reliable switching in a compact and robust form factor.
The relay features a single pole double throw (SPDT) contact configuration and uses silver alloy contact material, ensuring durable and low resistance connections. Designed with a coil power of 1.8W and coil resistance of 320 ohms, it operates efficiently with minimal temperature rise.
Mounting on PCB is made easy with its mini-ISO terminal arrangement and quick connect terminals. The compact dimensions of 26mm length, 25mm height, and 22mm depth make it suitable for space-constrained installations.
This relay performs reliably over a wide temperature range from -40°C to 85°C, with coil-to-contact isolation rated at 500Vrms, enhancing safety and durability in industrial and automotive environments.
Manufactured in Japan, the Panasonic CB series relays are known for their high thermal resistance, compact size, and reliable performance under demanding conditions. High switching capacity for automotive and industrial uses.
Compact PCB mount design with mini-ISO terminal arrangement. Wide operating temperature range from -40°C to 85°C. Quick connect terminals for efficient installation. Silver alloy contacts for durability and low resistance.
Coil-to-contact isolation of 500Vrms ensures electrical safety. Low coil power consumption of 1.8W minimizes energy usage. Part of the trusted Panasonic CB series for reliable operation. Made in Japan, confirming quality and manufacturing expertise.
This Panasonic CB1-M-24V Automotive Relay is suited for industrial, laboratory, automotive, and agricultural sectors requiring dependable relay performance with compact PCB mount installation. Explore more high-quality relays and electrical components in the dedicated Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic CB1-M-24V automotive relay has a switching current capacity of 20A.
This model has dimensions of 26mm in length, 25mm in height, and 22mm in depth.
It features a single pole double throw (SPDT) contact configuration.
The relay operates with a coil voltage of 24V DC.
The coil power consumption is 1.8W.
It operates reliably between -40°C and 85°C.
This model is equipped with quick connect terminals for easy installation.
The coil resistance is 320 ohms.
The isolation between the coil and contact is rated at 500Vrms.
The relay uses silver alloy for its contacts, ensuring low resistance connections.
This relay is manufactured in Japan, ensuring high quality manufacturing standards.
It is suitable for automotive, construction, and agricultural equipment applications.
