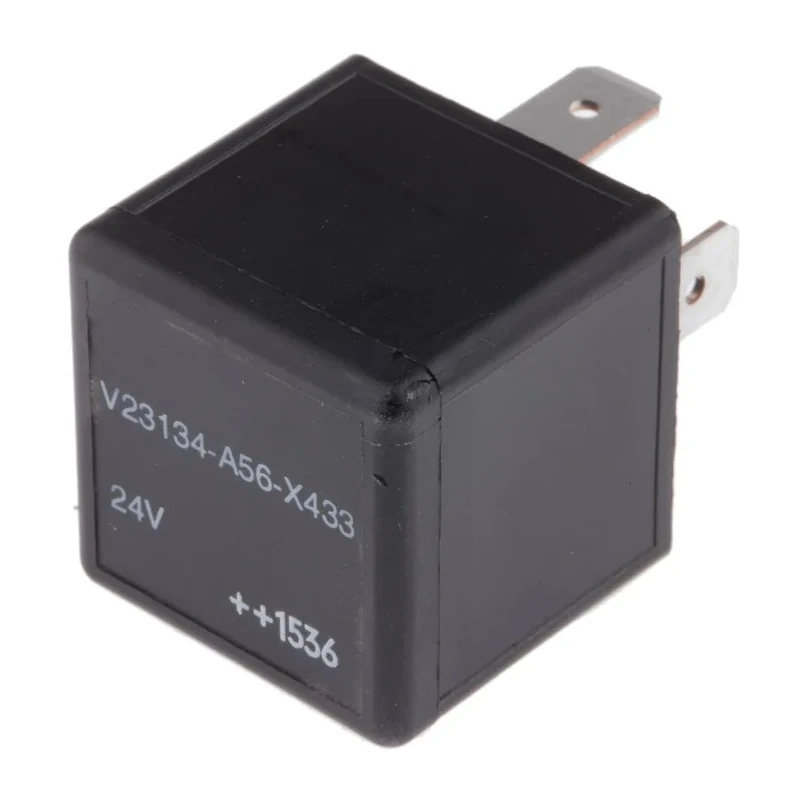

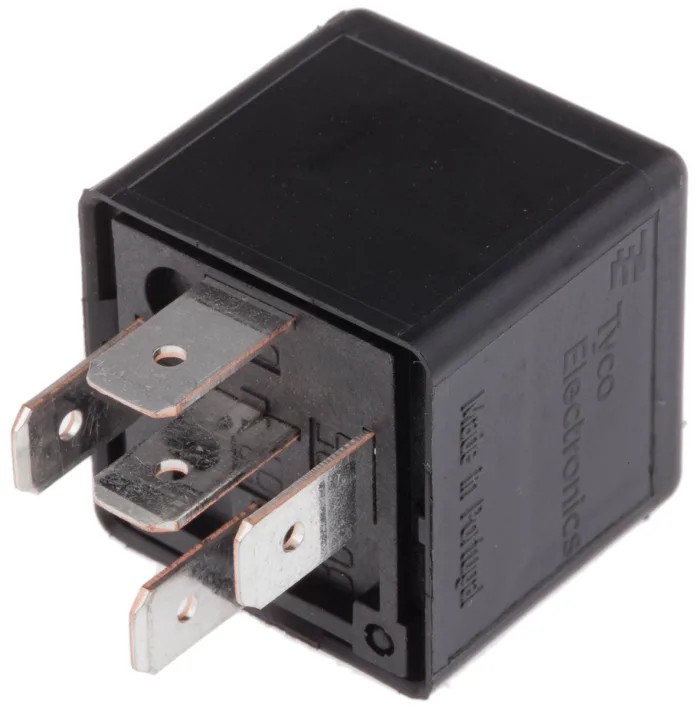

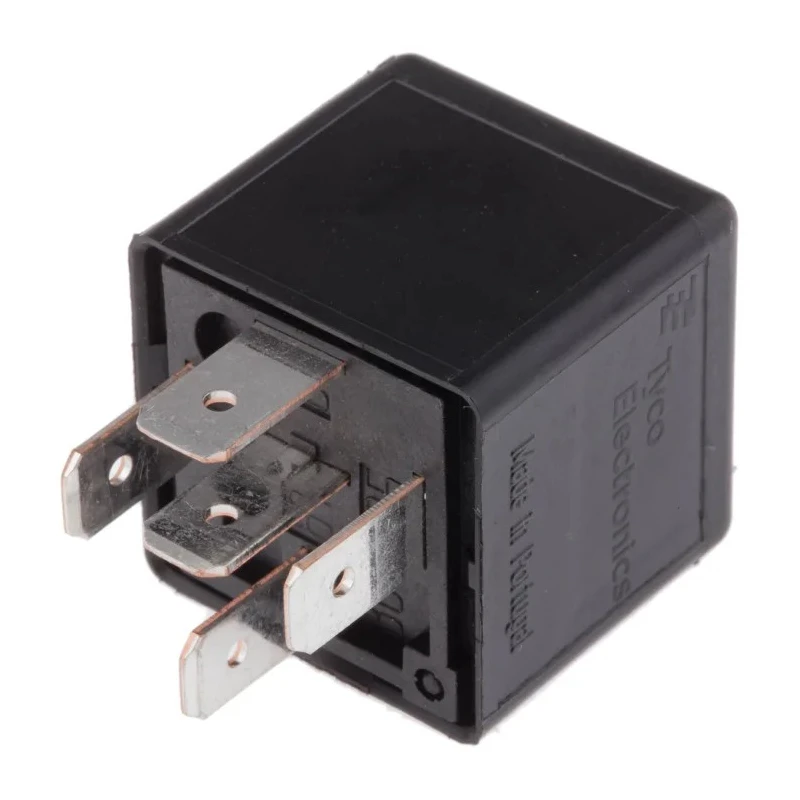

TE Connectivity Automotive Relay 24V DC Coil Voltage 40A Switching Current SPDT V23134A0056X433 1-1414168-0
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Model | V23134A0056X433 1-1414168-0 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 268Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Compact size with dimensions 25.9mm x 24.9mm x 25.9mm.
- Coil power consumption is low at 1.6 watts with 268 ohms coil resistance.
- Equipped with quick connect terminals for easy installation.
- Operates reliably in temperatures from -40°C up to 125°C.
- Isolation voltage of 500 Vrms between coil and contacts ensures safety.
- Contact material made of durable silver alloy for long service life.
- Designed to meet IP54 dust protection rating.
- Widely applied in automotive systems such as ignition lock, lamp loads, ABS, and fuel pumps.
Product Description
TE Connectivity V23134A0056X433 1-1414168-0 Automotive Relay offers robust 24V DC coil operation with 40A switching current capacity in a single-pole double-throw (SPDT) configuration. Its compact dimensions (25.9mm length, 24.9mm height, and 25.9mm depth) enable integration in tight automotive environments. The relay's coil power of 1.6W along with a coil resistance of 268Ω guarantees efficient control energy usage.
The relay features quick connect terminal types enabling fast and secure connections in automotive circuits. It operates effectively across a wide temperature range of -40°C to 125°C, meeting demanding environmental automotive requirements. Isolation between coil and contacts up to 500 Vrms ensures operational safety and noise reduction.
Constructed with silver alloy contacts, this relay provides excellent conductivity and durability under automotive electrical loads. The F4 series Mini ISO automotive relay design includes integral components and protection against dust ingress rated at IP54, ideal for harsh operating conditions.
Common industrial applications for this relay include ignition lock systems, headlamp control, exhaust emission management, ABS systems, fuel pumps, electric power steering, wiper controls, car alarms, and blower fan management in automotive vehicles.
Compact Mini ISO form factor suitable for modern automotive electronics integration. High reliability with silver alloy contacts ensuring long life cycles. Quick connect terminals facilitate installation and maintenance.
Wide operating temperature suitability for various climates and conditions. Ability to withstand electrical isolation requirements up to 500 Vrms. Designed to meet the stringent automotive industry demands for control relays.
IP54 dust protection rating offers environmental resilience. Versatile use across multiple automotive subsystems improves vehicle functionality.
This TE Connectivity automotive relay is manufactured in Portugal under high-quality standards, ensuring consistent performance in industrial automotive electrical control systems. For more automotive relay solutions, explore the Automotive Relays category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 40A.
It has compact dimensions of 25.9mm in length, 24.9mm in height, and 25.9mm in depth.
This automotive relay operates at a coil voltage of 24V DC and has a power consumption of 1.6 watts.
It is equipped with quick connect terminals for easy installation.
The relay operates effectively in temperatures ranging from -40°C to 125°C.
The isolation voltage between the coil and contacts is 500 Vrms.
The contacts are made of silver alloy, providing good conductivity and durability.
This model features a single-pole double-throw (SPDT) contact configuration.
It is designed to meet an IP54 dust protection rating.
This automotive relay is manufactured in Portugal.
It is widely applied in automotive systems such as ignition lock, lamp loads, ABS, and fuel pumps.
This automotive relay belongs to the F4 series.
