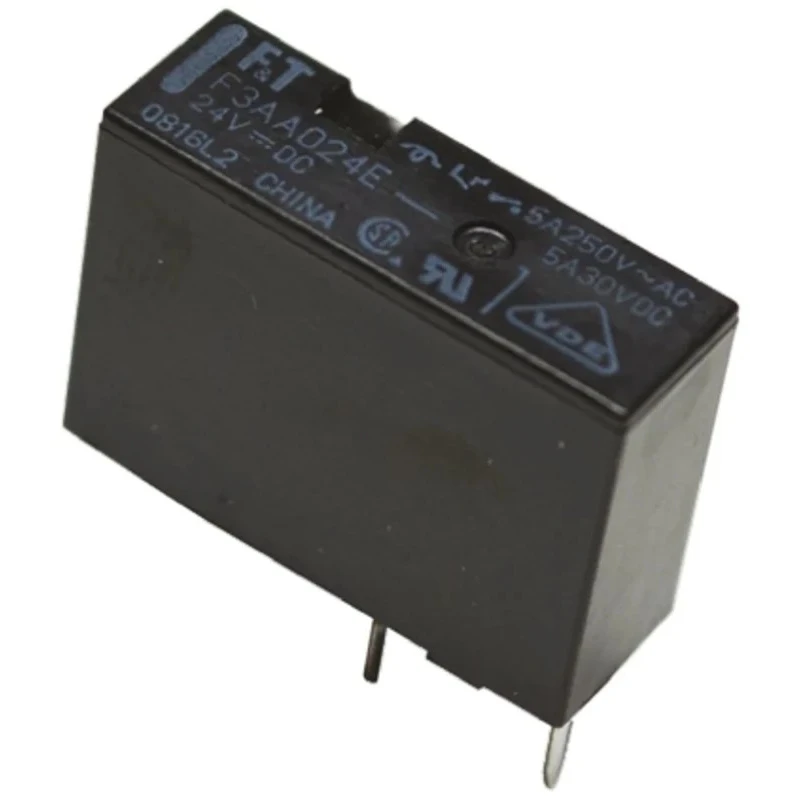

Fujitsu PCB Power Relay 24V DC Coil 5A Switching Current SPST FTR-F3AA024E-HA

Fujitsu FTR-F3AA024E-HA is a high-quality PCB power relay that provides reliable switching performance with a 24V DC coil voltage and 5A switching current capability. This SPST relay is designed for efficient PCB mounting via PCB pin terminals, making it suitable for compact electronic assemblies requiring robust power relay solutions.

The relay can handle a switching power up to 150W, making it ideal for industrial, automation, electrical, and electronic applications where precise switching of DC and AC currents is required. With switching voltage ratings of 30V DC and 277V AC, it is versatile across a range of system voltages.

Engineered for durable operation, it features a wide temperature range from -40°C to +70°C, allowing use in demanding environmental conditions. The silver alloy contacts ensure minimal wear and reliable electrical conductivity, complemented by a low contact resistance rating of 100mΩ that reduces power loss.

Its compact size with dimensions of 20.3mm (length), 15mm (height), and 7mm (width) supports high-density circuit designs. The coil power consumption is minimized at 200mW, enabling energy-efficient relay operation in sensitive electronics.

This relay conforms to established industry standards including VDE, UL, and CSA, certifying its compliance for safe and dependable use in global markets. This power relay uses a Single Pole Single Throw (SPST) contact configuration.

Designed for PCB mounting with PCB pin terminals for easy installation. Operates at coil voltage of 24V DC with a coil resistance of 2.9kΩ. Supports switching power up to 150W and switching voltages of 30V DC and 277V AC.

Temperature operating range from -40°C to 70°C ensures reliable performance. Constructed with silver alloy contacts and low contact resistance of 100mΩ. Compact dimensions: 20.3mm length, 15mm height, and 7mm width. Coil power consumption is low at 200mW for energy efficiency.

This Fujitsu PCB power relay is ideal for use in industrial automation, electrical control systems, manufacturing equipment, HVAC controls, and other commercial electronic devices where reliable power switching is critical. Explore more Power Relays and related components in EnvMart’s Electronics & Electricals category.
