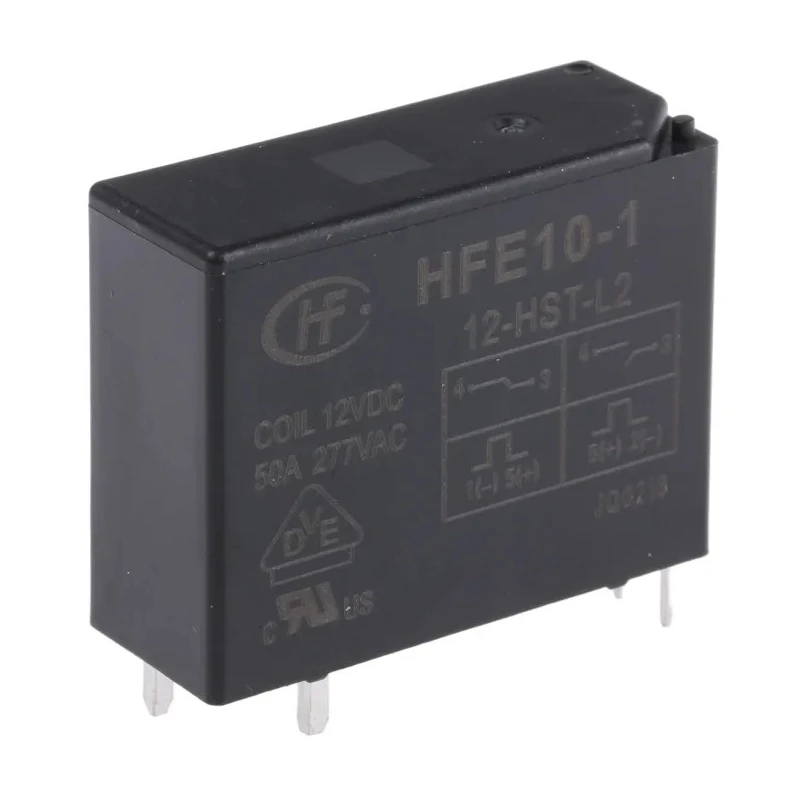

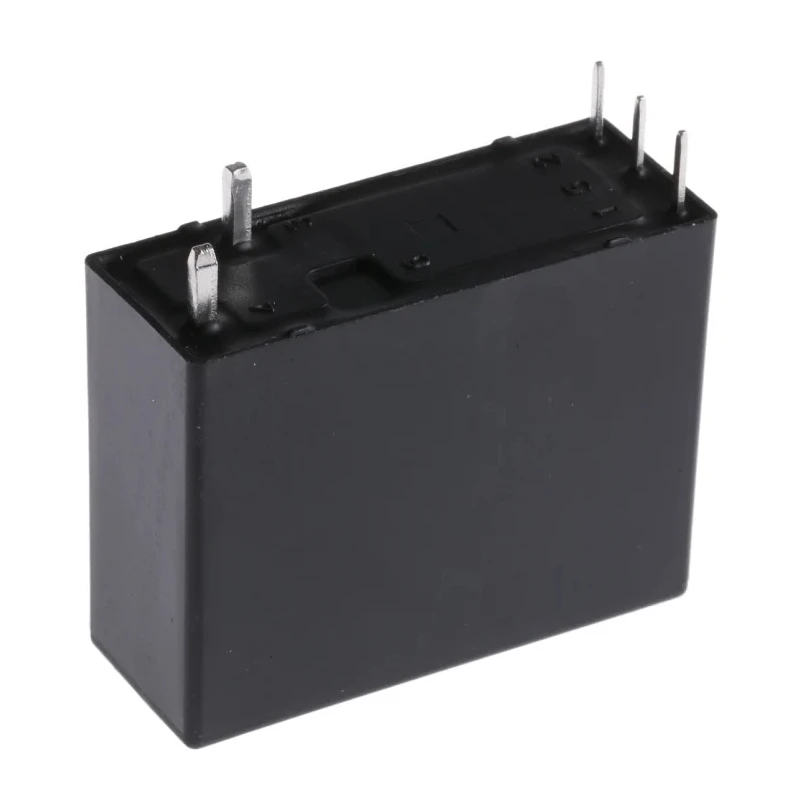

RS PRO PCB Power Relay 12V DC Coil 50A Switching Current SPST 0476577P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 30.2mm |
| Length | 39mm |
| Model | 0476577P |
| Width | 15mm |
| Mount Type | PCB |
| Contact Configuration | SPST |
| Switching Current | 50A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Voltage | 12V dc |
Key Features
- Coil power consumption of 3 W for efficient operation.
- Coil resistance rated at 48 ohms.
- Single-pole, single-throw (SPST) silver alloy contacts ensure high conductivity.
- Dielectric strength of 4 kV ensures excellent isolation between coil and contacts.
- Supports capacitor load up to 200 μF and lamp load up to 5000 W.
- Maximum switching capability of 50 A and switching power up to 12.5 kVA AC.
- Operating temperature range from -40°C to +70°C.
- Designed for PCB mounting with through-hole solder terminals.
Product Description
RS PRO 0476577P PCB Power Relay is a durable and efficient power relay designed for switching high current loads up to 50 A. This relay features a 12V DC coil and SPST contact configuration, making it ideal for applications requiring reliable single-pole control.
The relay consumes 3 W coil power with a 48 Ω coil resistance, activated by a low-current pulse. Its silver alloy contacts guarantee excellent conductivity and longevity, rated for 1,000,000 mechanical cycles. With overall compact dimensions measuring 39 mm in length, 30.2 mm in height, and 15 mm in width, it fits neatly onto printed circuit boards using through-hole solder terminals.
Special features include a dielectric strength of 4 kV to protect against electrical interference, the capability to handle capacitor loads up to 200 μF, and lamp load capacities up to 5000 W. The relay supports a maximum switching power of 12.5 kVA AC and a maximum switching voltage of 440 V AC, suitable for heavy-duty electrical switching tasks.
It is engineered to operate over a wide temperature range from -40°C to +70°C, making it suitable for harsh industrial environments, HVAC systems, industrial counting and sorting machinery, and cleaning equipment.
Coil power: 3 W for efficient low power consumption. Coil resistance: 48 Ω. SPST silver alloy contacts provide robust electrical performance. Compact PCB mounting with dimensions 39x30.2x15 mm. Dielectric strength of 4 kV between coil and contacts for enhanced safety.
Capable of handling inrush currents with minimum surge impact. Mechanical life of up to 1,000,000 cycles ensures long-term reliability. Operating temperature range from -40°C to +70°C suits demanding environments. RoHS compliant to meet environmental standards.
Through-hole solder terminal type for secure PCB attachment.
This RS PRO power relay is an essential component for electrical automation and control systems where reliable power switching and long-lasting operation are paramount. Its robust specifications and certifications make it apt for a broad range of industrial and commercial applications.
Explore more RS PRO Power Relays and electronic components on EnvMart for comprehensive automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 50 A.
This relay operates with a coil voltage of 12V DC.
The overall dimensions of this unit are 39 mm in length, 30.2 mm in height, and 15 mm in width.
The dielectric strength is rated at 4 kV, providing excellent isolation between the coil and contacts.
It operates within a temperature range of -40°C to +70°C.
This relay uses through-hole solder terminals for secure PCB attachment.
The coil power consumption is 3 W, which allows for efficient operation.
It can handle a maximum switching power of 12.5 kVA AC.
Yes, this relay is RoHS compliant, meeting environmental standards.
It supports capacitor loads up to 200 μF and lamp loads up to 5000 W.
This model has a mechanical life rated for up to 1,000,000 cycles.
