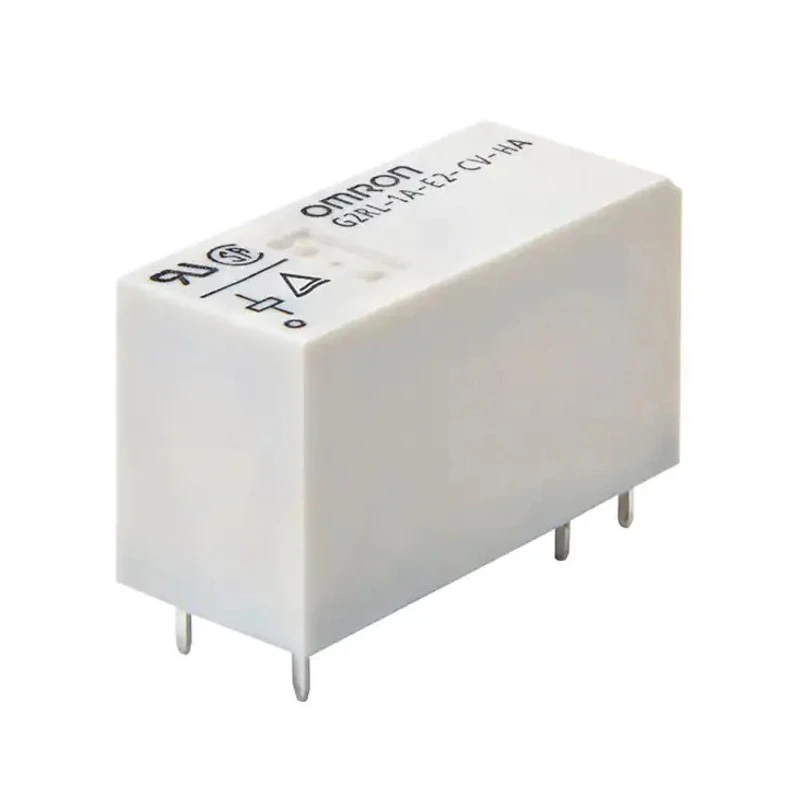

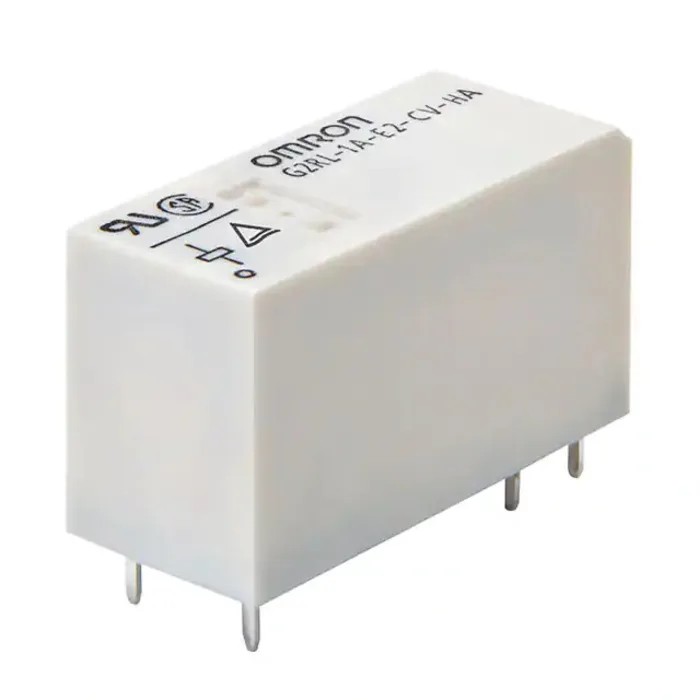

Omron Power Relay SPST PCB Mount 12V DC Coil 23A Switching Current G2RL-1A-E2-CV-HA DC12

Omron G2RL-1A-E2-CV-HA DC12 power relay is a compact and robust solution designed for high current load switching in industrial and electronic applications. Featuring a single pole single throw (SPST) contact configuration, this relay is suited for controlling circuits on printed circuit boards (PCBs) with a coil voltage of 12V DC and a low coil power consumption of 400mW. The 23A switching current capacity enables it to handle demanding electrical loads efficiently.

This relay uses silver alloy contacts, providing excellent conductivity and long operational life under harsh electrical conditions. It supports switching voltages of up to 250V AC and 60V DC, making it versatile across various systems. The coil resistance of 360 ohms and coil current of approximately 33.3 mA ensure stable operation.

The G2RL series is rated for operating temperatures from -40°C to 105°C, enabling performance in high ambient temperature environments typical in industrial and automation settings. Its compact size, with dimensions 50mm (length) x 10mm (width) x 16.7mm (height), allows for efficient space utilization on PCBs.

Mounting is via PCB with screw terminals, facilitating secure installation and reliable electrical connection. The relay complies with safety and quality standards including EN60335-1 and UL1446, underscoring its suitability for both commercial and industrial equipment.

Manufactured in Malaysia, this Omron relay is engineered for durability, precision switching, and effective load management in a broad range of applications such as automation systems, power supplies, HVAC controls, and other electrical control devices.

Features a SPST contact configuration suitable for high current load switching. Designed with a silver alloy contact material for enhanced conductivity and durability. Operates reliably within a temperature range of -40°C to 105°C.

Includes a coil resistance of 360 ohms and coil power consumption of 400mW. Supports switching voltages up to 250V AC and 60V DC, ensuring versatile use. Compact dimensions with a length of 50mm, width of 10mm, and height of 16.7mm.

Mount type is PCB with screw terminals for secure connection. Meets EN60335-1 and UL1446 standards for safety and performance. Manufactured in Malaysia ensuring quality and consistency. Browse more Power Relays and electrical components on EnvMart for reliable industrial automation solutions.
