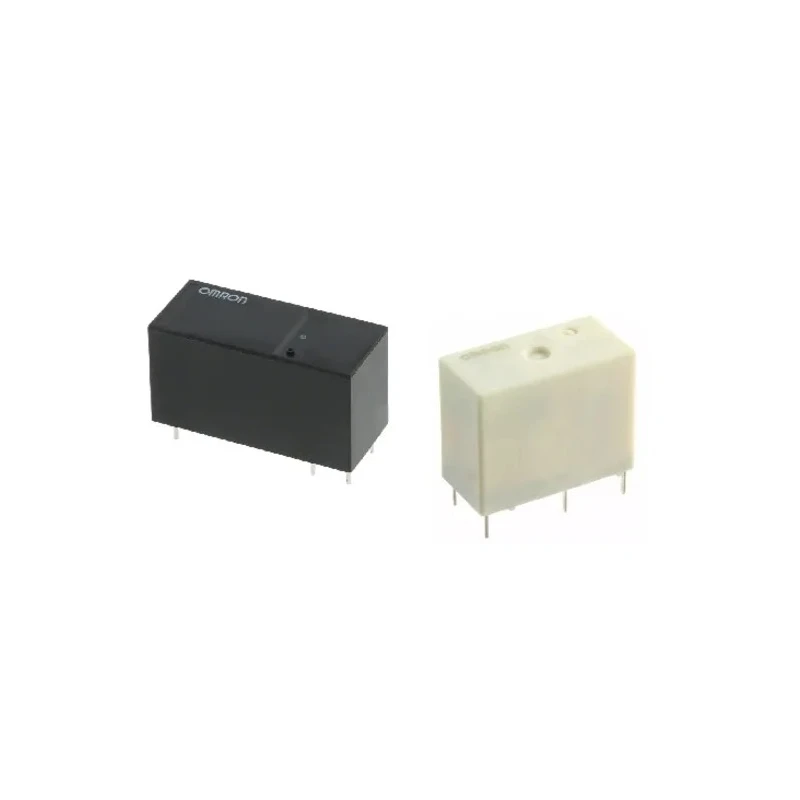

Omron PCB Relay, 12V DC Coil Voltage, 16A Switching Current, SPST Contact Configuration G5RL-U1A-E DC12

Free Delivery in India | Lowest Global Shipping Charges

Omron PCB Relay, 12V DC Coil Voltage, 16A Switching Current, SPST Contact Configuration G5RL-U1A-E DC12

Name: Omron PCB Relay, 12V DC Coil Voltage, 16A Switching Current, SPST Contact Configuration G5RL-U1A-E DC12
Brand: Omron
SKU: 426848
Price: 10.85 USD
Availability: InStock



Category Power Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	15mm
Length	50mm
Model	G5RL-U1A-E DC12
Width	10mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	G5RL-U/-K
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	16A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	CQC Certified, CSA (File No. LR31928), VDE Certified, UL (File No. E41643)
Coil Resistance	240Ω
Coil Voltage	12V dc
Switching DC Voltage	24V dc
Switching AC Voltage	250V ac
Coil Power	140mW

Key Features

Designed for PCB mount type with PCB pin terminals.
Supports switching AC voltage up to 250V and DC voltage up to 24V.
Operates reliably between -40°C to 85°C ambient temperature.
Contact material made of silver alloy ensuring excellent conductivity.
Compact dimensions of 50mm length, 15mm height, and 10mm width.
Coil resistance rated at 240 ohms with coil power consumption of 140mW.
Makes use of silver alloy contacts with low contact resistance of 100mΩ.
Carries certifications including CQC, CSA, VDE, and UL for safety and reliability.

Product Description

Omron G5RL-U1A-E DC12 is a high-quality PCB-mounted power relay designed for various industrial and electrical automation applications requiring reliable switching operations. This relay features a coil voltage of 12V DC and supports a switching current rating of 16A, making it suitable for controlling moderate loads.

The relay uses SPST (Single Pole Single Throw) contact configuration with silver alloy contacts that offer low contact resistance and high conductivity, ensuring efficient electrical performance. It supports switching voltages up to 250V AC and 24V DC, providing versatility across different electrical circuits.

The coil resistance of the relay is 240 ohms, consuming only 140mW coil power, allowing for energy-efficient operation. Its compact dimensions of 50mm (length), 15mm (height), and 10mm (width) make it an ideal component for PCB mounting within constrained assembly spaces.

Operational temperature range from -40°C to +85°C allows it to perform reliably in diverse and harsh environments. Certifications including CQC, CSA (File No. LR31928), VDE, and UL (File No. E41643) affirm the quality, safety, and compliance of this component for global usage.

Designed for easy PCB mounting with PCB pin terminals. Silver alloy contact material for enhanced electrical conductivity. Low contact resistance of 100mΩ for reliable signal transmission. Certified to multiple international standards for safety and performance.

Ideal for use in power relays, signal conditioning, and automation control circuits.

This Omron G5RL series relay provides dependable switching performance for industrial, laboratory, HVAC, and manufacturing equipment. It is engineered to meet stringent operational demands and deliver consistent, long-term service within electrical and automation systems.
