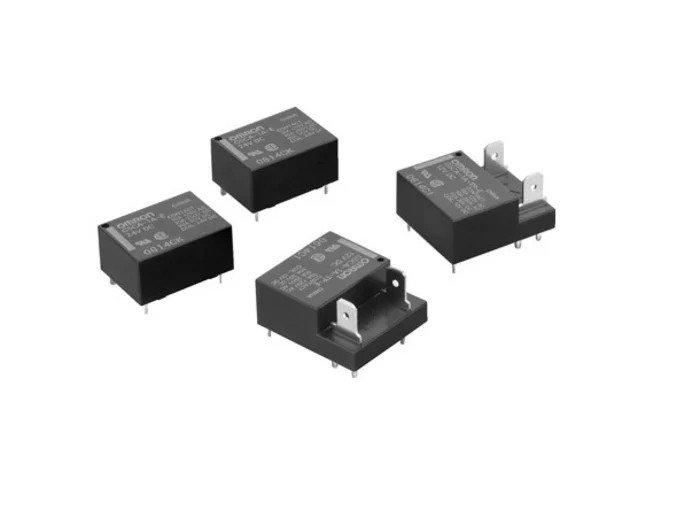

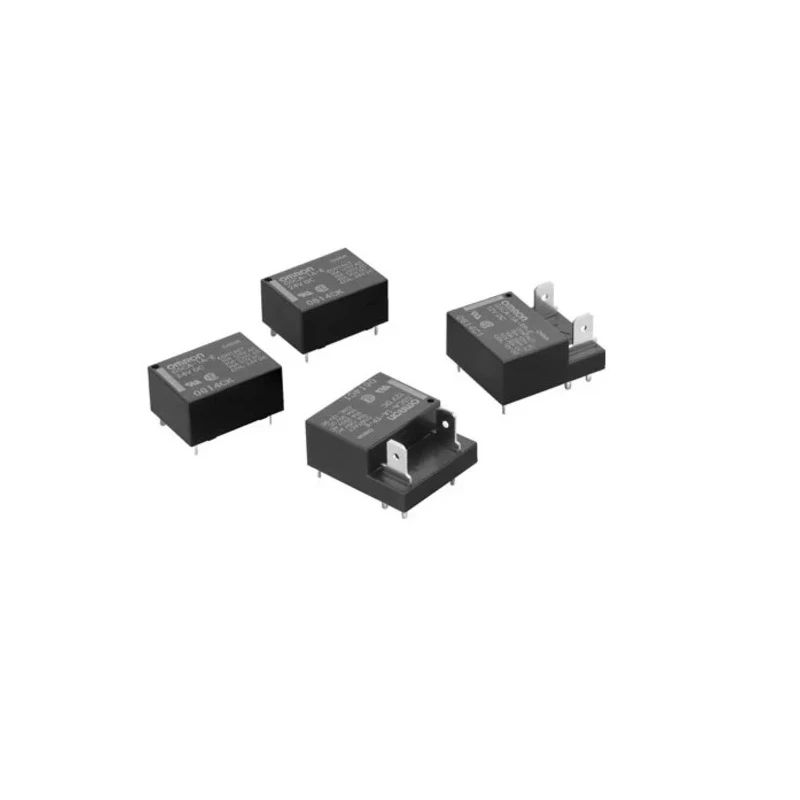

Omron PCB Relay SPST, 5V DC Coil, 15A Switching Current, Through Hole Mount, Silver Alloy Contacts G5CA-1A-E DC5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 22mm |
| Model | G5CA-1A-E DC5 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5CA |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 15A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 200mW |
Key Features
- Designed for PCB mounting with through-hole terminals.
- Features silver alloy contacts ensuring reliable conductivity and durability.
- Operates within a temperature range from -25°C to 70°C, suitable for various environments.
- Supports switching voltages up to 240V AC and 60V DC for versatile applications.
- Compact dimensions of 22mm length, 16mm width, and 11mm height enable space-saving installation.
- Low coil power consumption of 200mW reduces energy usage.
- High sensitivity coil with 2.9kΩ resistance and 40mA current draw.
- Compliant with RoHS standards for environmental safety.
Product Description
Omron G5CA-1A-E DC5 PCB Relay is a robust power relay designed for switching loads in household appliances and industrial equipment. With a 5V DC coil and a contact switching current of 15A, this SPST (single pole, single throw) relay provides reliable switching performance.
The relay features silver alloy contacts that offer enhanced conductivity and durability, making it suitable for frequent switching tasks. It supports switching voltages up to 240V AC and 60V DC, giving it versatility across different electrical systems.
This PCB relay is mounted with through-hole terminals, facilitating secure installation on printed circuit boards. Its compact size - 22 mm in length, 16 mm in width, and 11 mm in height - helps conserve space in circuit layouts.
The coil operates efficiently with a power rating of 200mW, coil resistance of 2.9kΩ, and a low coil current draw of approximately 40mA. The operational temperature range of -25°C to 70°C allows for use in diverse industrial and commercial environments.
Compliance with RoHS standards confirms its manufacture with environmentally friendly materials. The relay is widely used in industrial automation, electronic control systems, HVAC, and household electronic devices.
Designed for PCB mounting with through-hole terminals. Silver alloy contacts for enhanced durability and conductivity. Supports switching up to 15A current at 240V AC or 60V DC. Compact size suitable for space-conscious designs.
Energy-efficient coil design with low coil power consumption. Operational temperature range from -25° to 70°C. Low contact resistance for reliable electrical performance. RoHS compliant, ensuring environmentally safe production.
Applicable in industrial automation, control equipment, and household appliances. Please explore the Electronics & Electricals catalog at EnvMart for more relays and components designed to meet your industrial automation and control system requirements.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of up to 15A.
The relay has compact dimensions of 22mm in length, 16mm in width, and 11mm in height.
The coil voltage for this relay is 5V DC.
It operates within a temperature range from -25°C to 70°C.
This relay is designed for PCB mounting with through-hole terminals.
The relay features silver alloy contacts, which enhance conductivity and durability.
It supports switching voltages up to 240V AC and 60V DC.
The coil power consumption is rated at 200mW.
The coil resistance is 2.9kΩ.
Yes, this relay is compliant with RoHS standards for environmental safety.
The contact resistance is rated at 100mΩ, ensuring reliable electrical performance.
This relay is widely used in industrial automation, electronic control systems, HVAC, and household electronic devices.
