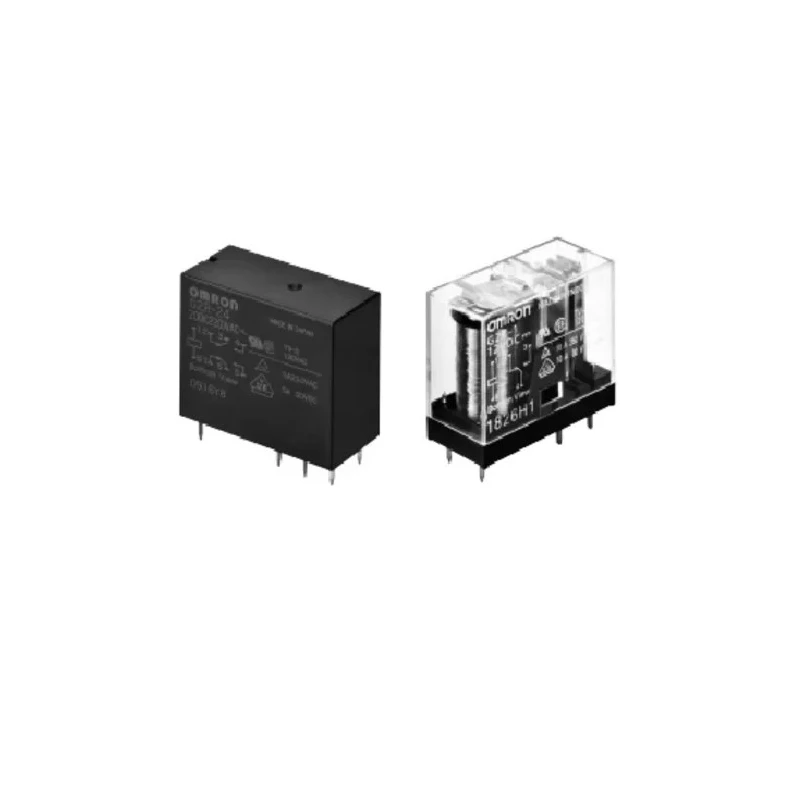

Omron PCB Power Relay 48V DC Coil, 16A Switching Current, SPDT Contact Configuration G2R-1-E DC48

Omron G2R-1-E DC48 PCB Power Relay features a 48V DC coil voltage and a 16A switching current capacity, equipped with SPDT (Single Pole Double Throw) contact configuration and screw terminal connections for PCB mounting. This relay is designed to offer reliable switching performance and durability in industrial, electrical, and automation applications.

The relay’s robust silver alloy contacts provide excellent conductivity and maintain a low contact resistance of 100 milliohms, enhancing operational efficiency. It performs reliably within a broad operating temperature range from -40°C to 70°C, suitable for challenging industrial environments.

With compact dimensions of 50mm length, 10mm width, and 15mm height, the relay integrates smoothly into circuit boards, allowing efficient space utilization. The coil resistance of 4.2 kΩ and coil power consumption of 530 mW results in a low coil current of approximately 11.5 mA, making it energy efficient.

This relay supports switching voltages up to 60V DC and 240V AC, making it ideal for switching a variety of loads including motors, lights, and other electrical devices. Its screw terminal design ensures secure and reliable connections on printed circuit boards.

Compliant with RoHS environmental standards, the Omron G2R-1-E DC48 relay is a premium choice for industrial control systems, automation equipment, laboratories, and manufacturing lines requiring robust and precise relay operation.

The coil voltage is rated at 48V DC for reliable operation. Switching current capacity is 16 Amperes, supporting versatile power applications. Contact configuration is Single Pole Double Throw (SPDT) for flexible circuit design.

Mount type is PCB with screw terminal connections for secure installation. The relay operates across a temperature range of -40°C to 70°C ensuring durability in harsh environments. Contact material comprises silver alloy ensuring low contact resistance of 100 milliohms.

Coil power consumption is efficiently low at 530 milliwatts. Dimensions measure 50mm (length) x 10mm (width) x 15mm (height), compact for integration. Coil resistance is 4.2 kiloohms with coil current approximately 11.5 mA.

Switching voltages include up to 60V DC and 240V AC for diverse circuit applications. Complies with RoHS standards indicating environmental compliance.
