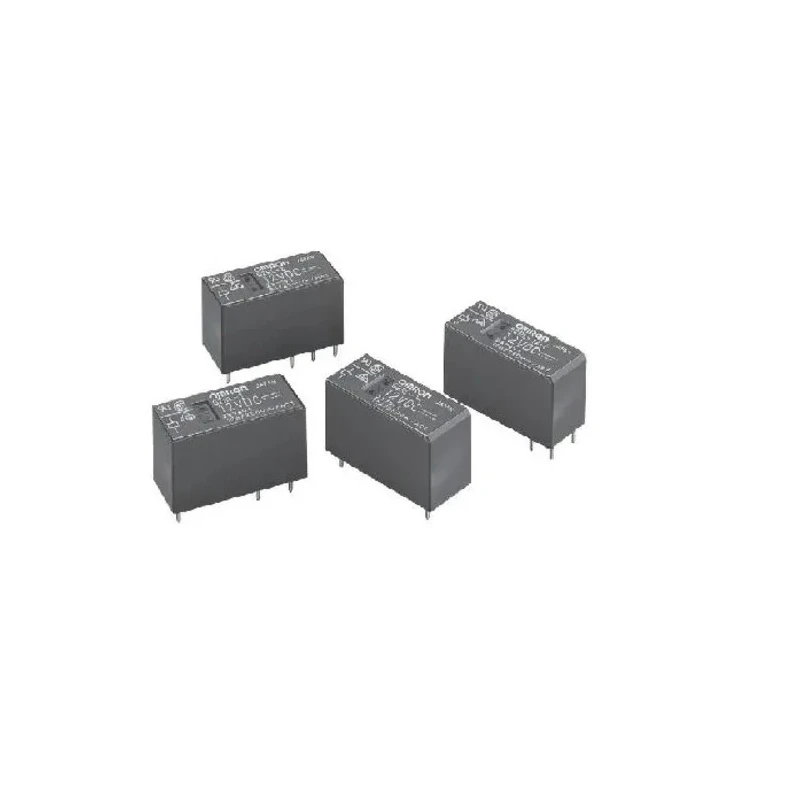

Omron Power PCB Relay 5V DC Coil 1A Switching Current SPST G2RL-2A DC5

Free Delivery in India | Lowest Global Shipping Charges

Omron Power PCB Relay 5V DC Coil 1A Switching Current SPST G2RL-2A DC5

Name: Omron Power PCB Relay 5V DC Coil 1A Switching Current SPST G2RL-2A DC5
Brand: Omron
SKU: 428345
Price: 5.05 USD
Availability: InStock



Category Power Relays Brand Omron Condition New

Specifications

Country of Origin	Malaysia
Brand	Omron
Height	15mm
Length	50mm
Model	G2RL-2A DC5
Width	10mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	G2RL
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	1A
Terminal type	Screw
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	62.5Ω
Coil Voltage	5V dc
Switching DC Voltage	60V dc
Switching AC Voltage	240V ac
Coil Power	400mW

Key Features

Operates with 5V DC coil voltage ensuring efficient control.
Supports 1A switching current suitable for various electrical applications.
Compact dimensions of 50mm length, 15mm height, and 10mm width.
Features silver alloy contacts with low 100mΩ contact resistance for reliable conductivity.
Designed for robust PCB mounting with screw terminals for secure connections.
Rated for switching up to 60V DC and 240V AC voltages.
Wide operating temperature range from -40°C to 70°C for harsh environments.
Incorporates coil resistance of 62.5Ω and coil power consumption of 400mW.

Product Description

Omron G2RL-2A DC5 power PCB relay is a compact, durable relay designed for effective high current load switching in industrial and automation applications. Featuring a 5V DC coil and 1A switching current, it supports single-pole single-throw (SPST) contact configuration optimized for PCB mount installations with secure screw terminals.

Its construction includes silver alloy contacts with a low contact resistance of 100mΩ, providing consistent electrical performance and low losses. The relay is rated to switch DC voltages up to 60V and AC voltages up to 240V, making it suitable for diverse electronic control circuits.

The relay operates reliably in a wide ambient temperature range from -40°C to 70°C, suitable for demanding industrial, automation, and electrical applications. It features a coil resistance of 62.5Ω that consumes 400mW of power, contributing to energy-efficient control in electronic systems.

Designed with a compact form factor measuring 50mm in length, 15mm height, and 10mm width, this relay fits easily onto PCBs without occupying excessive space. Compliance with RoHS standards ensures it meets environmental regulations by limiting hazardous substances.

Operates at 5V DC coil voltage with 1A switching current. SPST contact configuration ideal for reliable single-pole switching. Compact size with PCB mount compatibility and screw terminals. Silver alloy contacts for excellent conductivity and durability.

Switching voltage capability up to 60V DC and 240V AC. Wide operating temperature range of -40°C to 70°C suits harsh environments. Low coil power consumption of 400mW enhances efficiency. RoHS certified, environmentally compliant component.

Manufactured in Malaysia, assuring quality control.

This Omron power relay is widely used in industrial electronics, automation systems, HVAC controls, manufacturing equipment, and other electrical load switching applications requiring compact, efficient, and reliable relays.
