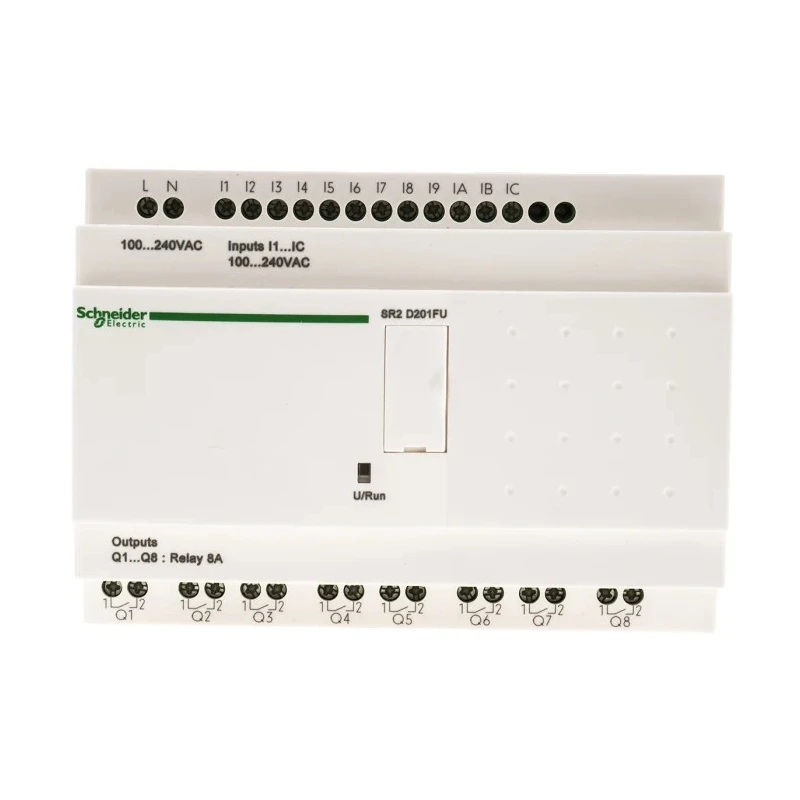

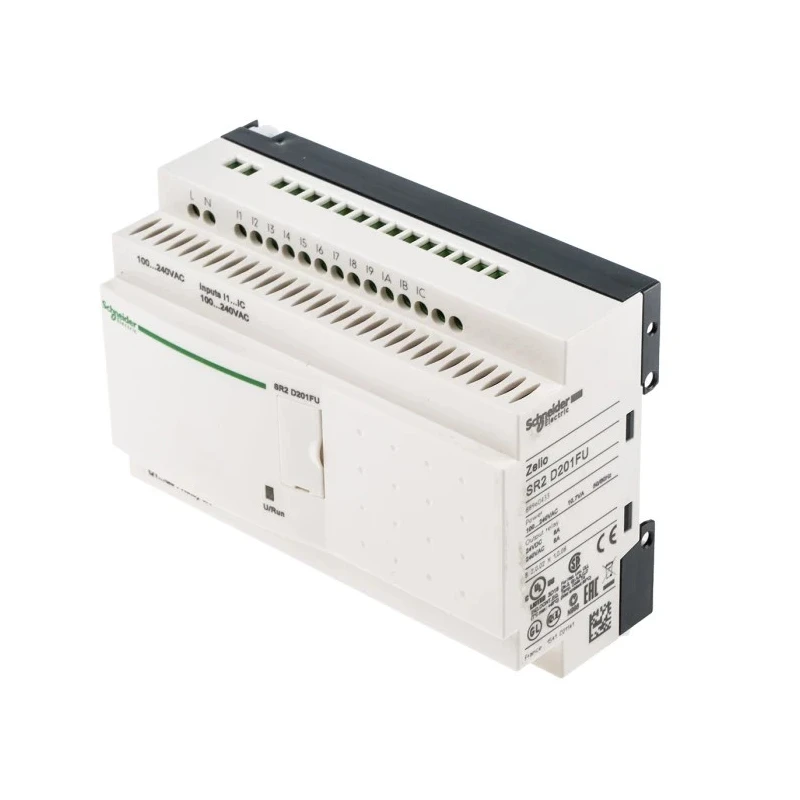

Schneider Electric Zelio Logic Series Logic Module 12-Input Discrete Input 8 Relay Outputs SR2D201FU

Schneider Electric SR2D201FU Logic Module from the Zelio Logic series offers a compact and versatile solution for industrial automation and machinery control. This module provides 12 discrete inputs and 8 relay outputs with a relay output type, making it suitable for controlling various standalone devices. It is designed to replace cable logic or specific card solutions with extensive programmable capabilities.

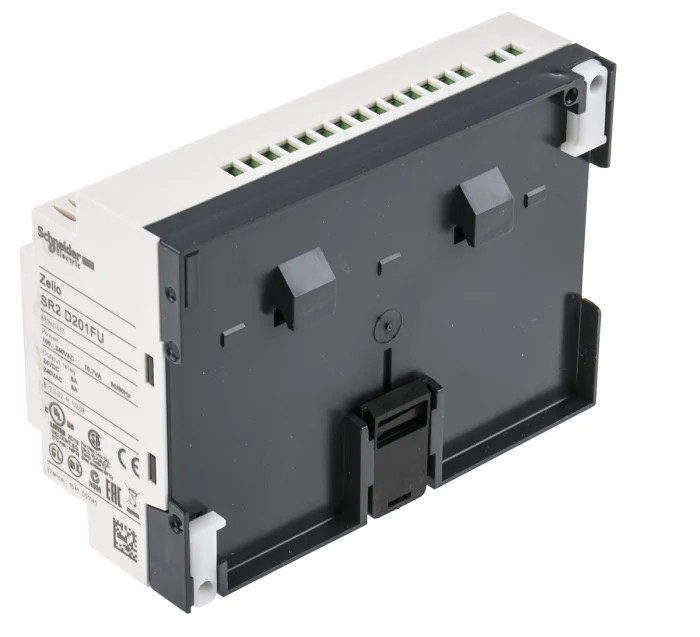

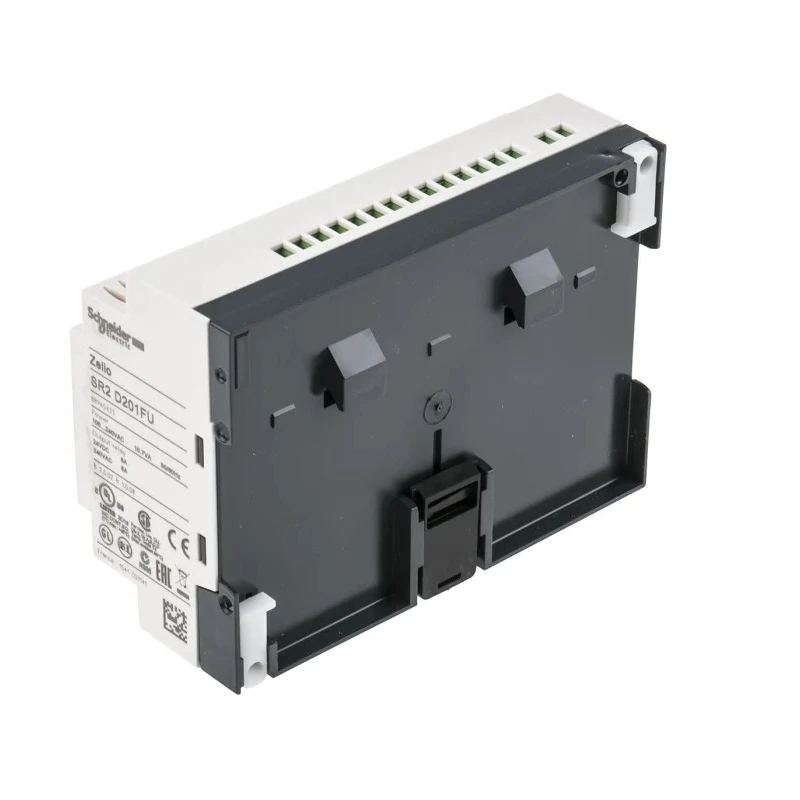

The module supports a supply voltage range of 100 to 240 V AC, and operates reliably between -20°C and 55°C. Featuring DIN rail mounting and screw terminals, installation is straightforward and adaptable to industrial panels or setups.

The included display and battery backup enhance operational reliability and user interaction, while programming can be done via Ladder Logic language using Zelio Soft 2 software. This software allows intuitive programming with multiple pre-programmed functions and the possibility to run coherence testing, simulations, and monitoring modes to ensure total device control.

The device complies with recognized standards such as UL, GOST, GL, C-Tick, and CSA, underscoring its quality and safety. Compact dimensions of 124.6mm x 107.6mm x 59.5mm reduce required space, making it cost-effective and practical for modern industrial environments.

Typical applications include control systems for smaller machinery, lighting management, as well as heating and air conditioning controls, offering automation without human intervention. Schneider Electric's Zelio Logic modules are also expandable with compatible communication extension modules providing Modbus or Ethernet connectivity.

Compatible with Zelio Logic SR2/SR3 series for flexible applications. Supports DIN rail mounting with screw terminals for ease of installation. Operates within a temperature range from -20°C to 55°C ensuring durability. Power supply voltage ranges from 100 to 240 V AC suitable for varied environments.

Includes an integrated display and battery backup for enhanced functionality. Programmable using Ladder Logic and compatible with Zelio Soft 2 software. Compact size with dimensions 124.6mm length, 107.6mm width, and 59.5mm depth.

Certified under UL, GOST, GL, C-Tick, and CSA standards confirming quality and safety. Explore Schneider Electric Zelio Logic Modules and related automation components on EnvMart for advanced industrial and commercial control solutions.
