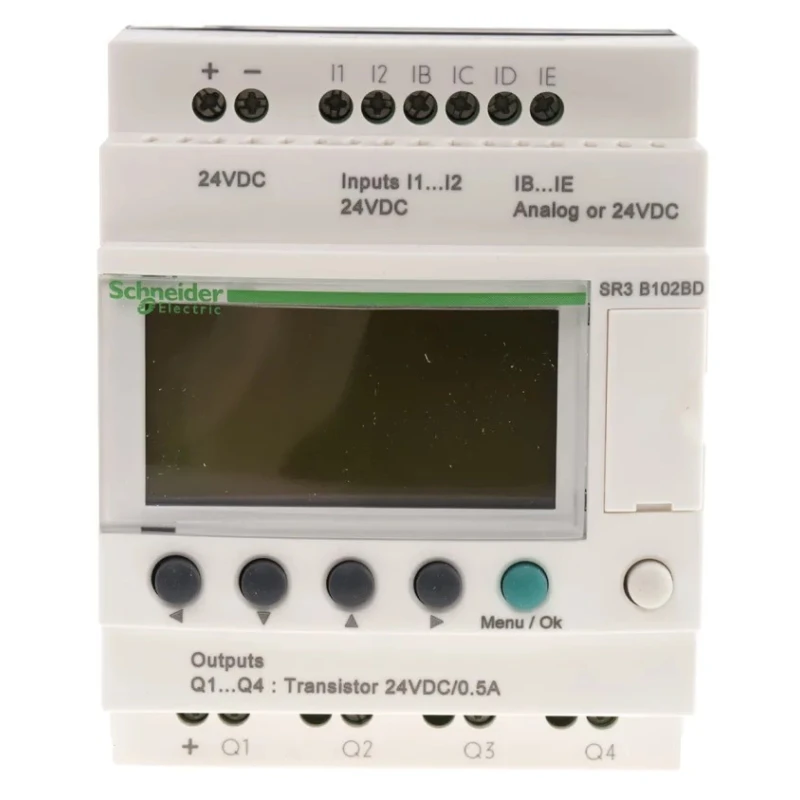

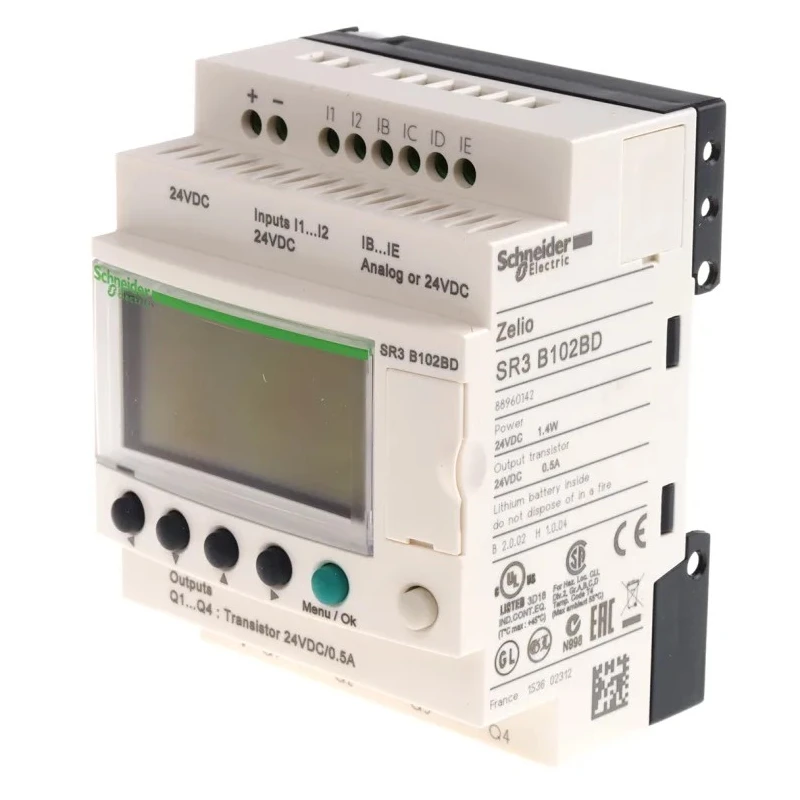

Schneider Electric Zelio Logic Series Logic Module 6-Input Analogue Input 4 Outputs Transistor Output SR3B102BD

Schneider Electric SR3B102BD Zelio Logic Series Logic Module is a compact and versatile control solution featuring 6 analogue inputs and 4 transistor outputs, operating at 24 V dc supply voltage. This new generation logic module allows simplified programming via an intuitive interface with buttons on the front of the relay, or alternatively through Windows PC using Ladder Logic and Function Block Diagram languages.

The module includes an LCD backlight display making it easier to access and monitor parameters on site. Its low power consumption combined with a wide supply voltage range makes it suitable for various industrial and commercial automation needs. Furthermore, a real-time clock is integrated for precise timing and monitoring functions.

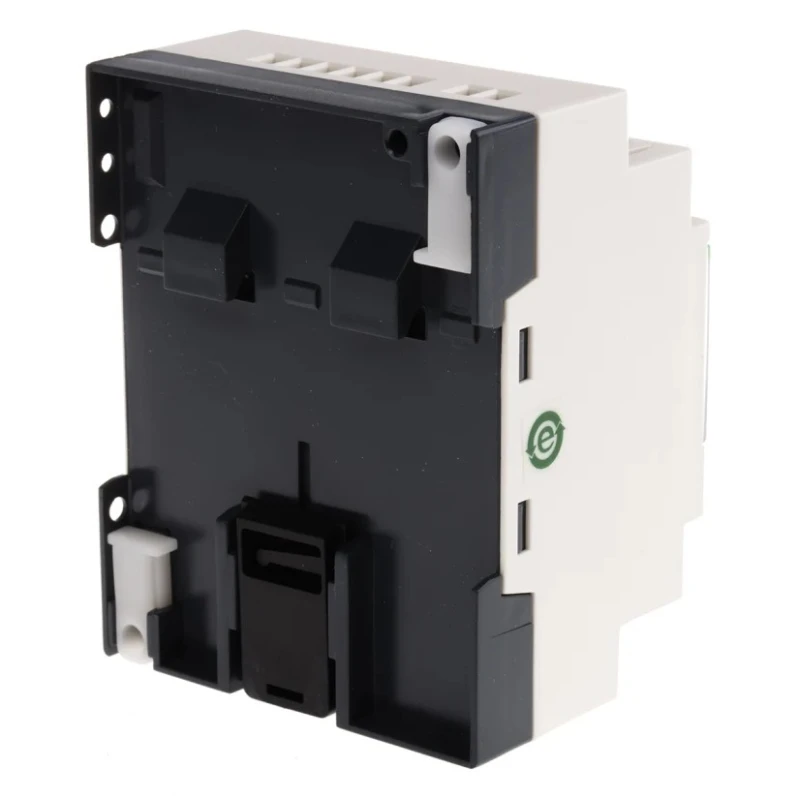

Designed for flexible installation, the SR3B102BD allows DIN rail mounting or panel mounting via screw terminals. It also features battery backup with up to 10 years of EEPROM memory retention, ensuring stable operation and data security.

Compliant with multiple international standards including CSA, C-Tick, GL, GOST, and UL, this logic module ensures reliability and safety in demanding environments. Typical applications include control systems for smaller machinery, lighting management, and heating, ventilation, and air conditioning (HVAC) controls. The compact design reduces space requirements compared to other basic modules while providing robust operation.

Features an easily programmable interface with buttons on the front panel. Supports programming via Windows PC using Ladder Logic and Function Block Diagram (FBD) languages. Equipped with an LCD backlight display for enhanced user accessibility.

Operates within a supply voltage range of 12 to 24 V dc with low power consumption. Includes a real-time clock for effective monitoring and control functions. Provides battery backup with 10-year EEPROM memory retention.

Mountable on DIN rail or panel with screw terminals for flexible installation. Complies with standards CSA, C-Tick, GL, GOST, and UL for safety and reliability. Suitable for applications such as control of smaller machinery, lighting management, and HVAC controls.

Ideal for industrial automation, manufacturing processes, building management systems, and commercial equipment control, the SR3B102BD logic module offers a cost-effective and space-saving solution with advanced features. Discover more products in the Logic Module category at EnvMart.
