TE Connectivity Surface Signal Relay 12V DC Coil, 2A, DPDT, Surface Mount, IM16GR

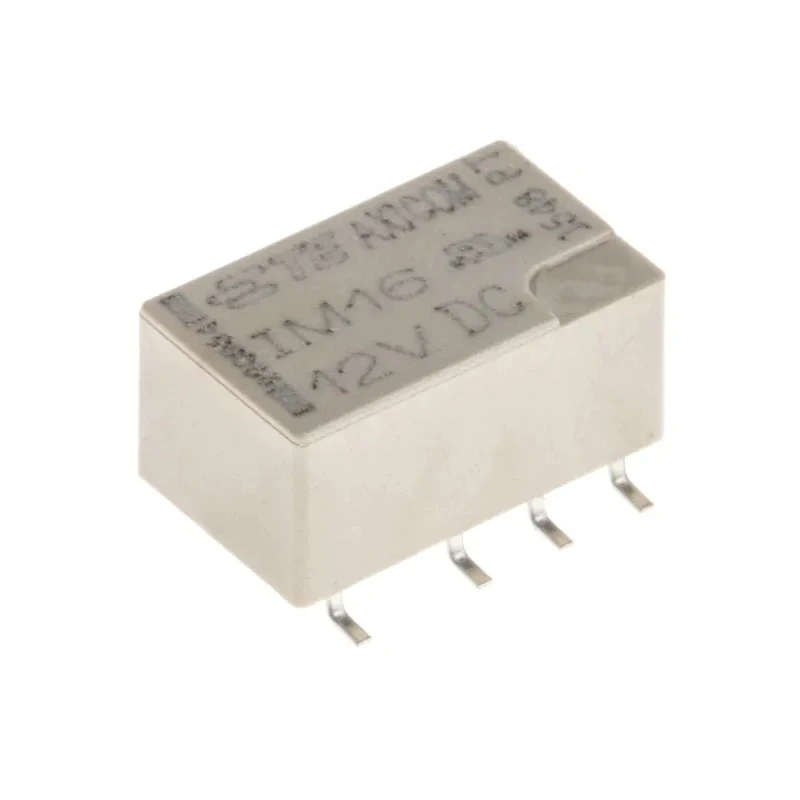

TE Connectivity IM16GR is a surface Signal Relay specifically engineered for demanding electronic and telecommunications applications. Featuring a 12V DC coil and DPDT contact configuration, this slimline relay is ideal for signal switching requirements where reliability, miniature size, and versatility are essential. The compact footprint (10x6x5.65 mm) allows for installation on tightly packed PCBs, making it highly suitable for modern telecom circuits, instrumentation, and industrial automation.

This relay adopts a gull wing SMT leg surface mount design that supports efficient automated PCB assembly. Its DPDT contacts ensure flexible switching capability for both AC and DC signals up to 2A. High switching voltage ratings - 250V AC and 220V DC - make it capable of handling a wide variety of low power signal applications.

Engineered with bifurcated, gold-plated contacts made from rhodium plated palladium nickel, this relay is designed for long-term durability, high conductivity, and minimal contact resistance. The hermetically sealed enclosure achieves IP67 protection, providing excellent resistance to moisture, dust, and other environmental influences.

Robust mechanical characteristics include shock resistance up to 300G (functional) and 500G (survival), and a wide operating temperature range from -40°C to 85°C, ensuring reliable operation across a range of industrial and commercial environments. The relay's high insulation resistance at 500V DC (>10^9 Ω) and surge handling capabilities meet Telcordia TR-NWT-001089 and EC 60950 standards for reliable signal integrity.

Applications include telecom exchanges, signal conditioning modules, automated test equipment, control systems, and any scenario where space efficiency and high-reliability switching are required. The solder terminal design simplifies installation and maintenance in both new designs and upgrades.

Industrial, laboratory, communications, and signal processing use cases benefit from the IM16GR relay’s precision, compactness, and robust build. Operates with a 12V DC coil for reliable signal switching. DPDT (Double Pole Double Throw) contact configuration for versatile circuit integration.

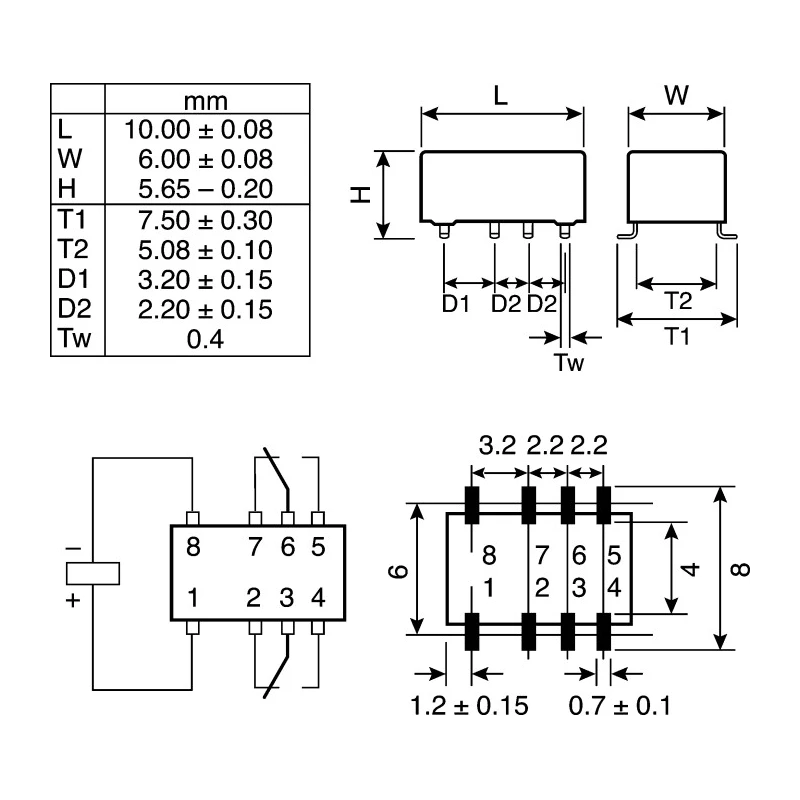

Surface mount design with gull wing SMT legs for streamlined PCB assembly. Rated for 2A switching current and up to 250V AC/220V DC switching voltages. Compact dimensions: 10mm length, 6mm width, 5.65mm height for space-efficient applications.

Gold plated, rhodium palladium nickel bifurcated contacts ensure durable performance and minimal contact resistance. Hermetically sealed and achieves IP67 protection for demanding environments. Extremely high mechanical shock resistance up to 300G functional and 500G survival.

Wide operating temperature range from -40°C to 85°C. High insulation resistance and surge capability, meeting Telcordia and EC standards. Browse more TE Connectivity relays and signal conditioning solutions in Electronics & Electricals at EnvMart.
