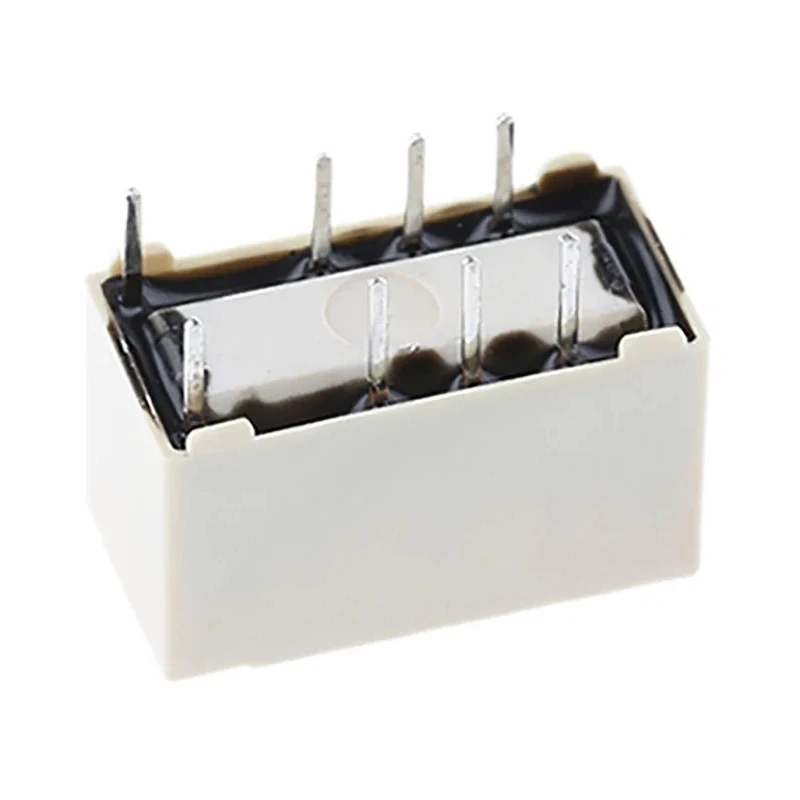

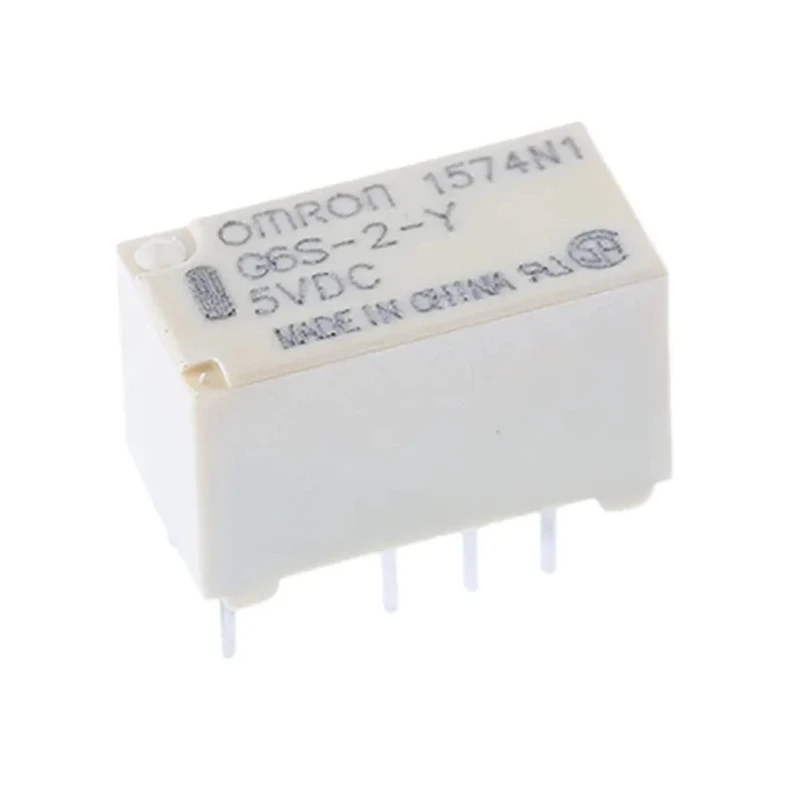

Omron Ultra-Miniature PCB Signal Relay 5V DC Coil, 2A DPDT Contact Configuration G6S-2-Y DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2-Y DC5 |
| Width | 7.3mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 200mW |
Key Features
- Ultra-miniature relay with dimensions 9.2mm height, 7.3mm width, and 14.8mm length.
- Supports switching currents up to 2 amperes with 250V AC and 220V DC maximum switching voltages.
- Gold plated contacts ensure enhanced conductivity and durability.
- Fully sealed design providing high dielectric strength and impulse withstand voltage of 2500V.
- Operating temperature range from -40°C to 85°C for diverse industrial conditions.
- Low power coil with 200mW power consumption and 125Ω coil resistance.
- Compliant with RoHS standards for environmental safety.
- Ideal for use in industrial automation, signal conditioning, and electronic control systems.
Product Description
Omron G6S-2-Y DC5 is an ultra-miniature PCB signal relay designed for reliable switching in electronic control and automation applications. It incorporates a 5V DC coil and a DPDT contact configuration, tailored for PCB mounting.
The compact design measures 9.2mm in height, 7.3mm in width, and 14.8mm in length, providing space-saving benefits in complex circuit assemblies.
This relay supports a switching current of 2A, suitable for switching AC voltages up to 250V and DC voltages up to 220V. Gold plated contacts guarantee efficient conductivity and protection against corrosion, enhancing the lifespan of the relay.
The device is fully sealed, offering high dielectric strength and is capable of withstanding impulse voltages of 2500V as per Bellcore standards, ensuring robust performance under demanding electrical conditions.
The operating temperature range from -40°C to 85°C allows it to function reliably in harsh environments, making it suitable for industrial, laboratory, and manufacturing settings.
The coil requires a low power of 200mW with a coil resistance of 125 ohms, making this relay energy efficient. Compliant with RoHS directives, it aligns with environmental safety and regulatory standards.
Ultra-miniature size for compact PCB designs. Double pole double throw (DPDT) contact configuration. Gold plated contacts for enhanced reliability. Fully sealed enclosure with high dielectric strength. Wide operating temperature range of -40°C to 85°C.
Low coil power consumption of 200mW, 125Ω coil resistance. Compliant with RoHS environmental standards. Ideal for industrial automation and signal conditioning applications.
This Omron G6S series relay is an excellent choice for designers requiring a small footprint, reliable switching performance, and compliance with international standards. Suitable for electronics, industrial automation, and signal conditioning uses.
Explore EnvMart for more products in the Signal Relay category and other Omron industrial components.
