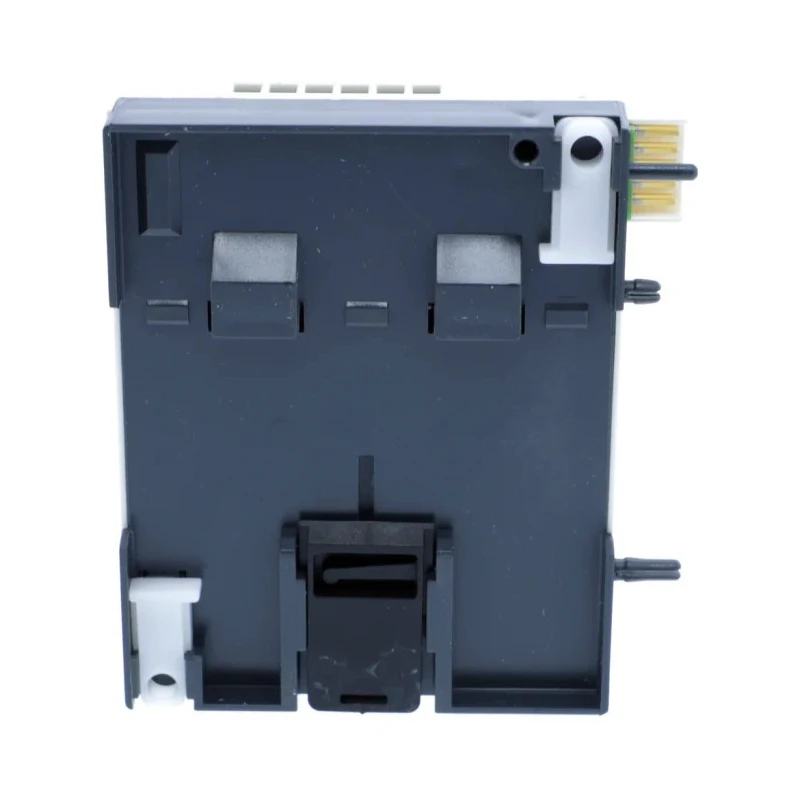

Schneider Electric Zelio Logic Series I/O Module, 6-Input, Discrete Input, 4 Outputs Relay Output SR3XT101B
Specifications
| Country of Origin | France |
|---|---|
| Display | 8 Inputs (No display |
| Brand | Schneider Electric |
| Length | 110mm |
| Model | SR3XT101B |
| Depth | 59.5mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | Zelio Logic |
| Input Type | Discrete |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | language (LADDER): 12 pre-programmed functions |
| Number of outputs | 4 |
| Supply Voltage | 24V ac |
| Standards/Approvals | CSA, C-Tick, GL, GOST, UL |
| Programming Language Used | FBD, Ladder Diagram |
| contact language (LADDER) | 12 pre-programmed functions |
Key Features
- Compact DIN Rail mountable module suitable for expanding Zelio Logic relays.
- Supports 6 discrete inputs and 4 relay outputs for versatile control.
- Operates on 24V alternating current supply voltage.
- Includes built-in EEPROM flash memory backup with up to 10 years data retention.
- Supports programming using Function Block Diagram (FBD) and Ladder Diagram languages.
- Wide operating temperature range from -20°C to 40°C for industrial environments.
- Equipped with display and battery backup for reliability and monitoring.
- Has screw-clamp terminals for secure wiring connections.
Product Description
Schneider Electric SR3XT101B is a Zelio Logic Series I/O Module designed to provide additional discrete input and relay output expansion. This module features 6 discrete inputs and 4 relay outputs operating at 24 volts AC power supply, enabling expanded control capacity for industrial automation and building/service sector applications.
The device is compact and suitable for DIN rail mounting, allowing easy installation in control panels. It includes a real-time clock with a built-in EEPROM flash memory that offers data backup for up to 10 years, ensuring data retention and recovery after power outages or incidents.
Programming is straightforward with Zelio Soft software supporting Function Block Diagram (FBD) and Ladder Diagram programming languages, making it accessible to non-specialists. The module supports screw-clamp terminals for reliable wiring and has display and battery backup features to enhance operational reliability.
With an operating temperature range from -20°C to 40°C, this module is designed for varied industrial environments. It meets multiple international certifications including CSA, C-Tick, GL, GOST, and UL, and complies with EN/IEC standards related to electromagnetic compatibility and environmental testing.
Compact DIN rail mounting for easy integration. Provides 6 discrete inputs and 4 relay outputs. 24V ac supply voltage with low power consumption. Built-in EEPROM flash memory for 10 years backup. Supports intuitive programming with Zelio Soft using FBD and Ladder Diagram.
Reliable screw-clamp wiring terminals. Includes display and battery backup features. Wide operational temperature range: -20°C to 40°C. Certified to CSA, C-Tick, GL, GOST, UL standards. Compact dimensions: 110mm length x 72mm width x 59.5mm depth.
This device is ideal for industrial automation, building controls, and service sectors requiring cost-effective modular expansions of programmable logic controllers. It reduces space requirements compared to other basic modules and offers versatile applications in manufacturing, water treatment, commercial, and HVAC environments. Browse more from Schneider Electric and other industrial automation products on EnvMart for your control needs.
Explore more products in our Logic Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This module features 6 discrete inputs and 4 relay outputs, designed for expanding Zelio Logic relays in industrial applications.
It operates on a 24V alternating current supply voltage, suitable for various automation tasks.
The module supports programming using Function Block Diagram (FBD) and Ladder Diagram languages, making it accessible for users.
The dimensions are 110mm in length, 72mm in width, and 59.5mm in depth, allowing for compact installation.
It operates within a temperature range of -20°C to 40°C, suitable for various industrial environments.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The device meets multiple international certifications including CSA, C-Tick, GL, GOST, and UL, ensuring compliance with various safety and performance standards.
It is equipped with screw-clamp terminals, providing secure wiring connections for reliable operation.
Yes, it includes built-in EEPROM flash memory that provides data backup for up to 10 years, ensuring data retention after power outages.
This module is ideal for industrial automation, building controls, and service sectors requiring modular expansions of programmable logic controllers.
The module supports 12 pre-programmed functions in the Ladder Diagram programming language, enhancing its usability.
The module features a display for monitoring purposes, enhancing operational reliability and user interaction.
