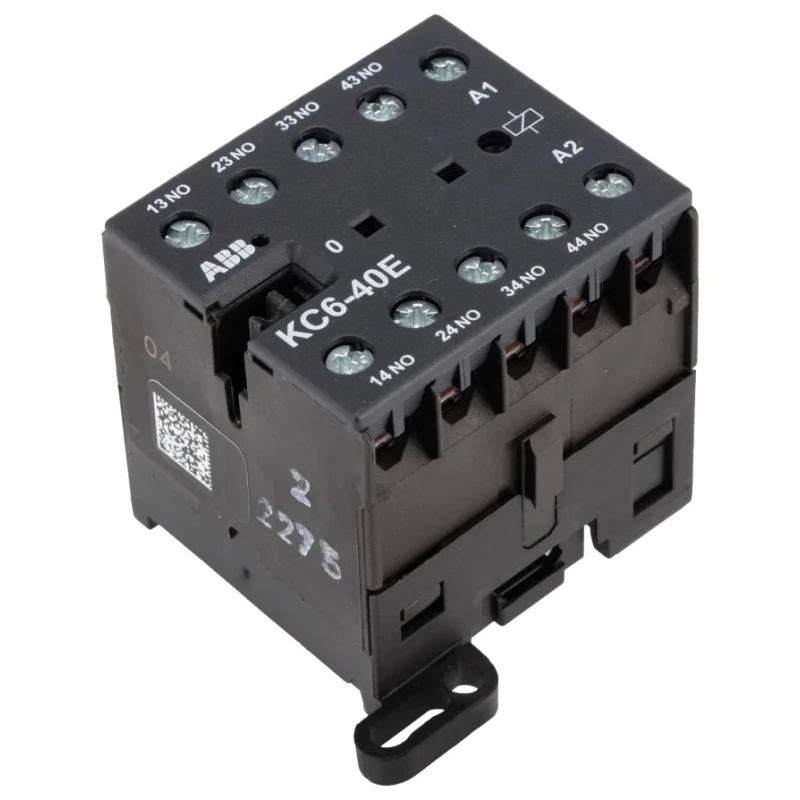

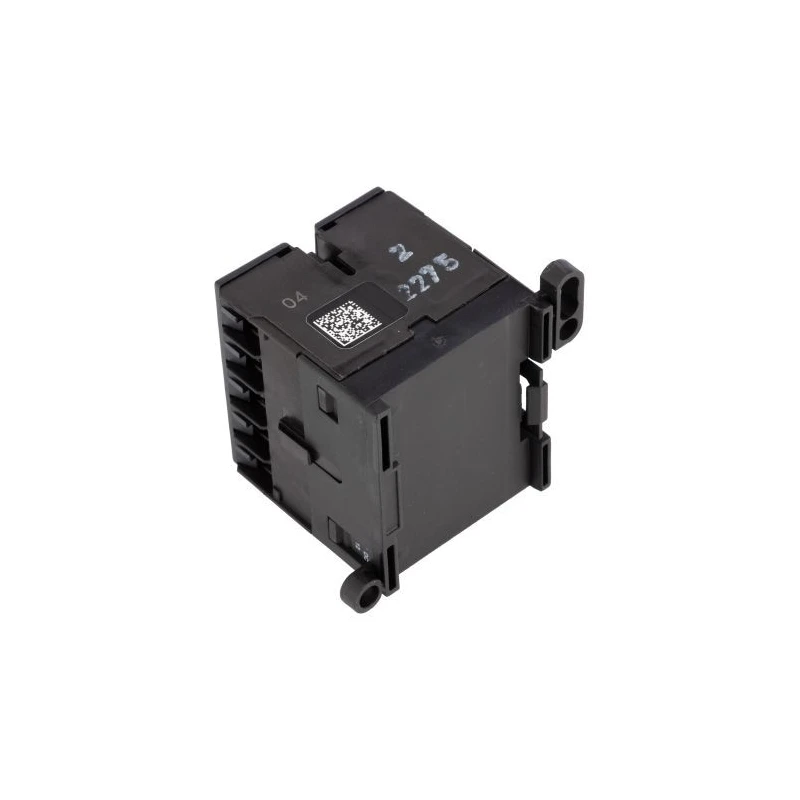

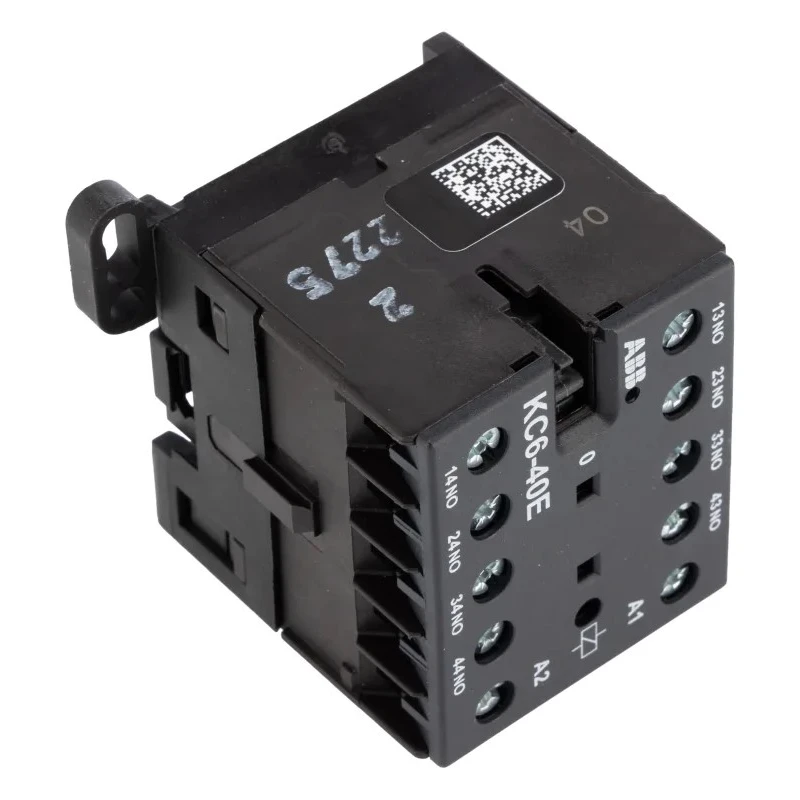

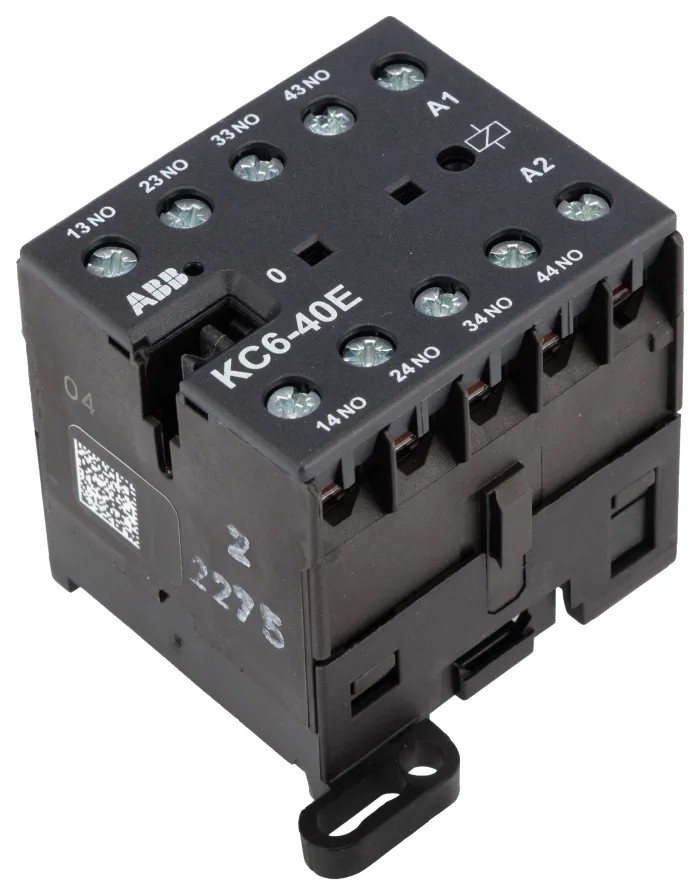

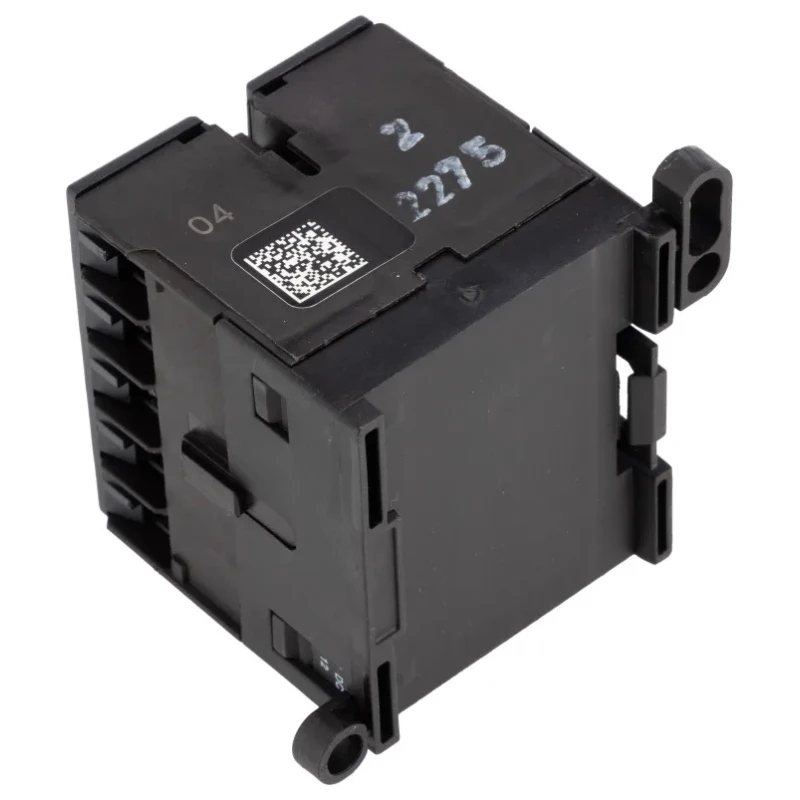

ABB Contactor Relay 12V dc Coil 4-Pole 4 A 690V Control Voltage KC6-40E

Free Delivery in India | Lowest Global Shipping Charges

ABB Contactor Relay 12V dc Coil 4-Pole 4 A 690V Control Voltage KC6-40E



Category Contactors & Relays Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Length	46.5mm
Model	KC6-40E
Depth	46.5mm
Width	52.5mm
Mount Type	DIN Rail
Series	KC6-40E
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Contact Voltage	600V
Coil Voltage	12V dc
Normal State Configuration	4 NO
Contact Current	4A
Number of Auxiliary Contacts	4
Auxiliary Contact Configuration	4 pole
Operational Current Ie	4A
Control Circuit Voltage Uc	690V
Pole and Throw Configuration	4

Key Features

Equipped with 4 normally open (NO) contacts for versatile wiring configurations.
Supports screw terminal connections for secure and reliable operation.
Designed for DIN rail mounting to simplify installation in compact spaces.
Operates reliably across a temperature range of -25°C to 55°C.
Complies with major international standards including IEC, UL, CB, and RoHS.
Compact dimensions of 52.5mm width and 46.5mm height enable space-efficient panel integration.
Includes 4 auxiliary contacts configured as 4 pole to enhance control circuit capabilities.
Capable of handling a contact current of 4A and control circuit voltage up to 690V.

Product Description

ABB KC6-40E Contactor Relay is a robust and compact 12V DC coil control device designed for switching control circuits in industrial, commercial, and residential applications. Featuring a 4-pole configuration and a contact current rating of 4A at control circuit voltages up to 690V, it ensures efficient and reliable operation in diverse environments.

The relay supports secure screw terminal connections and is designed for DIN rail mounting, facilitating easy installation even in limited space panels. Its compact size, measuring 52.5mm in width and 46.5mm in height, makes it suitable for installations where space constraints exist.

This contactor relay is engineered to withstand operational temperatures ranging from -25°C to +55°C, ensuring consistent performance under varied thermal conditions. The 4 normally open (NO) contacts provide versatile wiring options for control circuits, while the inclusion of 4 auxiliary contacts configured as 4 pole enhances flexibility in circuit design.

ABB KC6-40E complies with major international standards such as IEC/EN 60947 series, UL, CB, and RoHS, guaranteeing quality and safety compliance. It is ideal for applications requiring reliable switching of control signals in residential, commercial, and industrial settings.

The relay can operate effectively with control circuit voltages up to 690V and manage a maximum contact voltage of 600V AC/DC, supporting diverse electrical setups. It is suitable for projects demanding durability, noise-free coil operation, and compact mounting solutions.

Equipped with 4 normally open contacts for flexible wiring. Supports screw terminal connections for enhanced reliability. Designed for DIN rail mounting, enabling straightforward installation. Operates within a temperature range from -25°C to 55°C for broad environmental tolerance.

Compact dimensions facilitate space-efficient panel use. Includes 4 auxiliary contacts configured as 4 pole. Compliant with IEC, UL, CB, and RoHS standards. Suitable for industrial, commercial, and residential control applications.

Handles maximum contact voltage of 600V AC/DC. Delivers reliable switching with 4A contact current rating. Explore the ABB Contactor Relay range and other electrical components on EnvMart for your automation and control needs.
